72030 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 413199999) Roll-Over Protection System Assembly No. 142-9749 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

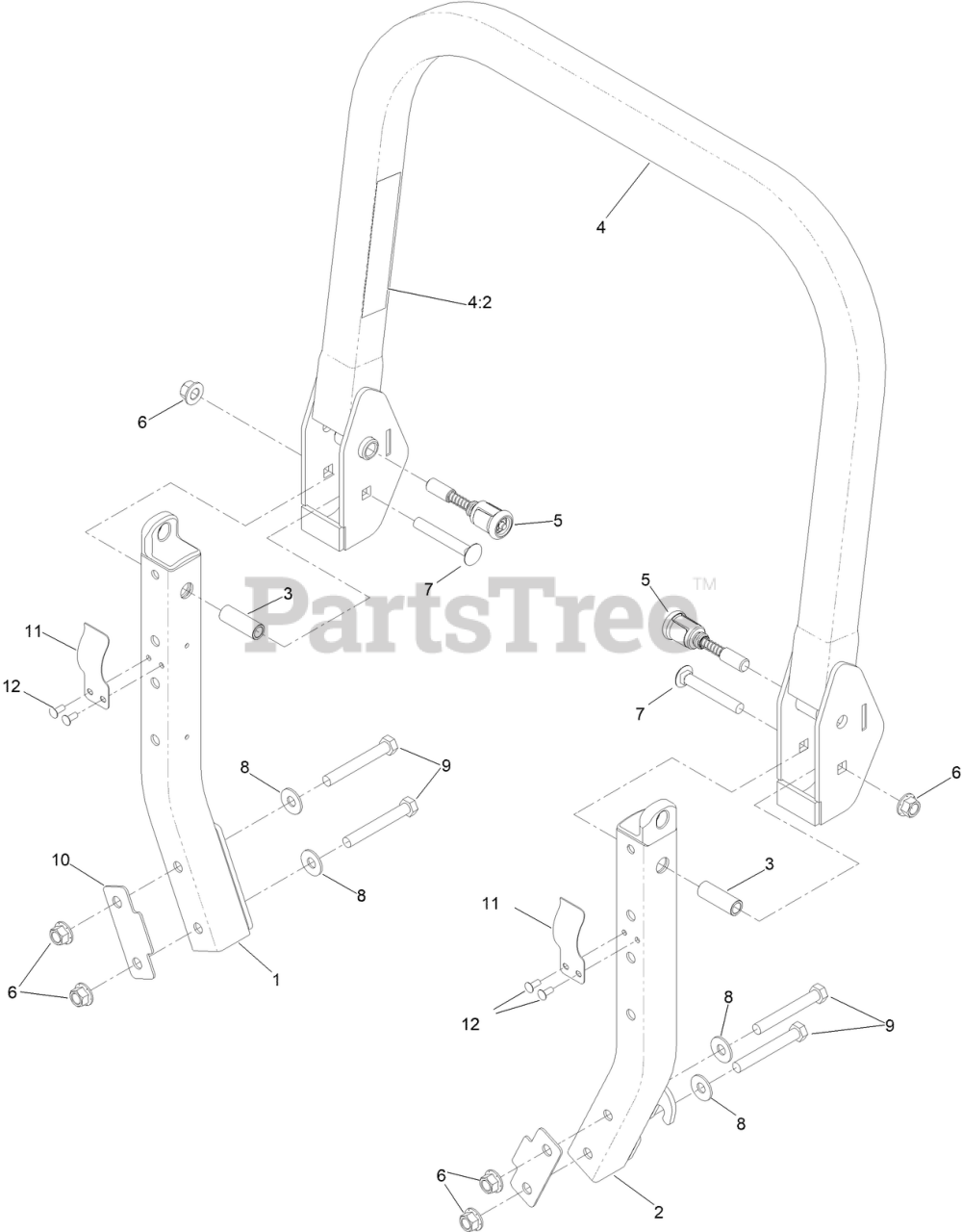

Roll-Over Protection System Assembly No. 142-9749 Parts Diagram

  • Title

1

LOWER-ROPS, RH

Note: Not serviced separately

$

$

Not available

2

LOWER-ROPS, LH

Note: Not serviced separately

$

$

Not available

3

Toro 109-6653

SPACER

$6.99

$

Usually ships in 3-6 days

0

4

Toro 142-2385

ASM,ROPS UPPER W/DECAL

$375.99

$

Usually ships in 3-6 days

0

4:2

Toro 107-3069

DECAL-WARNING

$27.99

$

Usually ships in 3-6 days

0

5

Toro 116-0104

PIN-SPRING

$53.99

$

Usually ships in 3-6 days

0

6

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

7

Toro 3233-10

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

8

Toro 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 16

0

9

Toro 325-35

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

10

Toro 116-0960

SPACER

$8.49

$

Usually ships in 3-6 days

0

11

Toro 110-5696

SPRING-LEAF

$50.99

$

Usually ships in 3-6 days

0

12

Toro 3290-412

RIVET-BLIND

$3.99

$

In Stock, Qty 17

0
