72030 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 413199999) Seat Mount Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

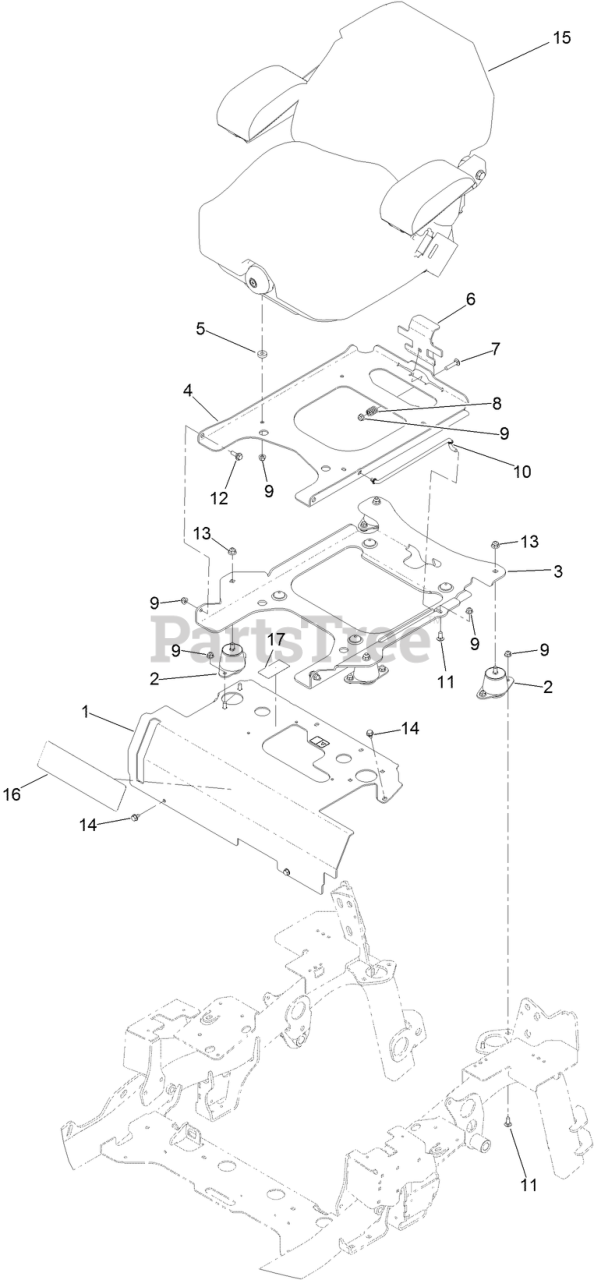

Seat Mount Assembly Parts Diagram

  • Title

1

Toro 126-7286

SEAT MOUNT ASM

$197.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

3

Toro 126-2701-03

PLATE-SUPPORT, TILT SEAT

$216.99

$

Usually ships in 3-6 days

0

4

Toro 126-2700-03

PLATE-FRAME, SEAT

$120.99

$

Usually ships in 3-6 days

0

5

Toro 26-4840

See Supercession: 5-0652
(Superseded to 5-0652)

$8.49

$

In Stock, only 2 left!

0

6

Toro 126-1855

PLATE, SEAT LATCH

$20.99

$

Usually ships in 3-6 days

0

7

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

8

Toro 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 116-0070

ROD-PROP

$25.99

$

Usually ships in 3-6 days

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

15

Toro 140-8003

SEAT-SUSPENSION

$1086.99

$

Usually ships in 3-6 days

0

16

Toro 140-1215

DECAL-CONSOLE

$10.99

$

In Stock, only 2 left!

0

17

Toro 135-2837

DECAL-FLUID, TRANSMISSION

$26.99

$

Usually ships in 3-6 days

0
