72030 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 413199999) Transmission Assembly (cont.) Center Section Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

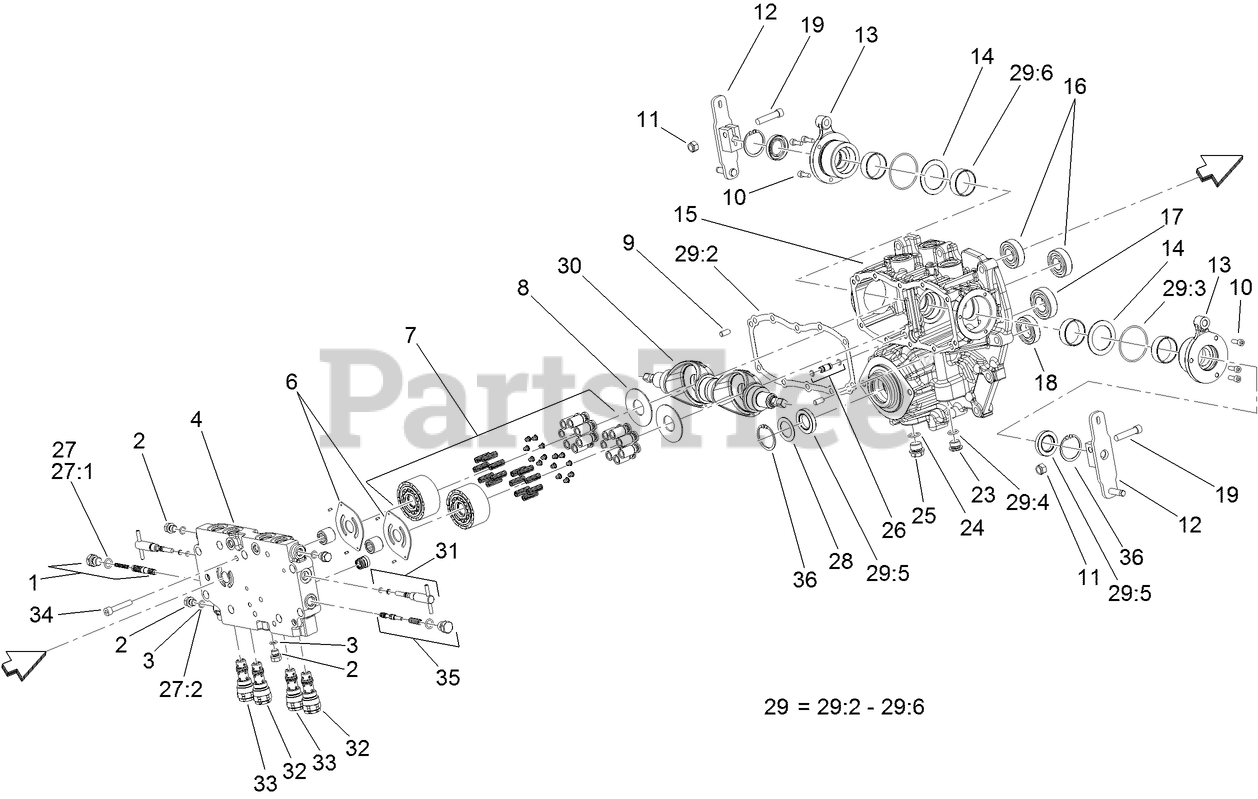

Transmission Assembly (cont.) Center Section Assembly Parts Diagram

  • Title

1

Toro 107-0807

VALVE-FLUSHING, RH

$151.99

$

Usually ships in 3-6 days

0

2

Toro 107-0857

PLUG

$38.99

$

Usually ships in 3-6 days

0

3

Toro 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

4

Toro 121-3377

CENTER CASE, COMPLETE

$3419.99

$

Usually ships in 3-6 days

0

6

Toro 107-0805

PLATE-VALVE

$150.99

$

In Stock, only 2 left!

0

7

Toro 107-0824

CYLINDER BLOCK ASM

$1461.99

$

Usually ships in 3-6 days

0

8

Toro 107-0830

PLATE-THRUST

$93.99

$

In Stock, only 3 left!

0

9

Toro 92-0765

PIN-PARALLEL

$4.49

$

Usually ships in 3-6 days

0

10

Toro 107-0859

BOLT

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-6681

U-NUT

$12.99

$

Usually ships in 3-6 days

0

12

Toro 120-6680

ARM-CONTROL

$614.99

$

Usually ships in 3-6 days

0

13

Toro 107-0832

SIDE COVER ASM

$522.99

$

Usually ships in 3-6 days

0

14

Toro 107-0829

WASHER

$

$

Not available

15

Toro 120-5151

PUMP HOUSING ASM

$4732.99

$

Usually ships in 3-6 days

0

16

Toro 107-0826

BEARING

$38.99

$

Usually ships in 3-6 days

0

17

Toro 107-0821

BEARING

$46.99

$

Usually ships in 3-6 days

0

18

Toro 107-0838

BEARING

$73.99

$

Usually ships in 3-6 days

0

19

Toro 120-6682

BOLT

$9.49

$

Usually ships in 3-6 days

0

23

Toro 107-0861

PLUG-NPTF

$13.99

$

Usually ships in 3-6 days

0

24

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

25

Toro 107-0867

PLUG

$17.99

$

Usually ships in 3-6 days

0

26

Toro 107-0812

PIPE

$123.99

$

Usually ships in 3-6 days

0

27

Toro 107-0852

CENTER CASE SEAL KIT

$14.99

$

Usually ships in 3-6 days

0

27:1

Toro 93-0418

O-RING

$8.99

$

In Stock, only 3 left!

0

27:2

Toro 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

28

Toro 107-0813

SPACER

$10.99

$

Usually ships in 3-6 days

0

29

Toro 107-0853

PUMP HOUSING SEAL KIT

$248.99

$

Usually ships in 3-6 days

0

29:2

Toro 107-0810

GASKET-CASE, CENTER

$26.99

$

Usually ships in 3-6 days

0

29:3

Toro 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

29:4

Toro 104-3298

See Supercession: 93-0475
(Superseded to 93-0475)

$10.99

$

Usually ships in 3-6 days

0

29:5

Toro 107-0814

SEAL

$58.99

$

Usually ships in 3-6 days

0

29:6

Toro 107-0825

RING-SEAL

$28.99

$

Usually ships in 3-6 days

0

30

Toro 120-6679

PLATE-SWASH

$1035.99

$

Usually ships in 3-6 days

0

31

Toro 107-0808

VALVE-BYPASS

$101.99

$

Usually ships in 3-6 days

0

32

Toro 107-0804

VALVE-REAR

$498.99

$

Usually ships in 3-6 days

0

33

Toro 107-0803

VALVE-FRONT

$498.99

$

Usually ships in 3-6 days

0

34

Toro 107-0863

BOLT

$4.49

$

Usually ships in 3-6 days

0

35

Toro 107-0806

VALVE-FLUSHING, LH

$151.99

$

Usually ships in 3-6 days

0

36

Toro 92-0757

RING-SNAP

$8.49

$

Usually ships in 3-6 days

0
