72030 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 413199999) Transmission Assembly (cont.) Gear Case and Clutch Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

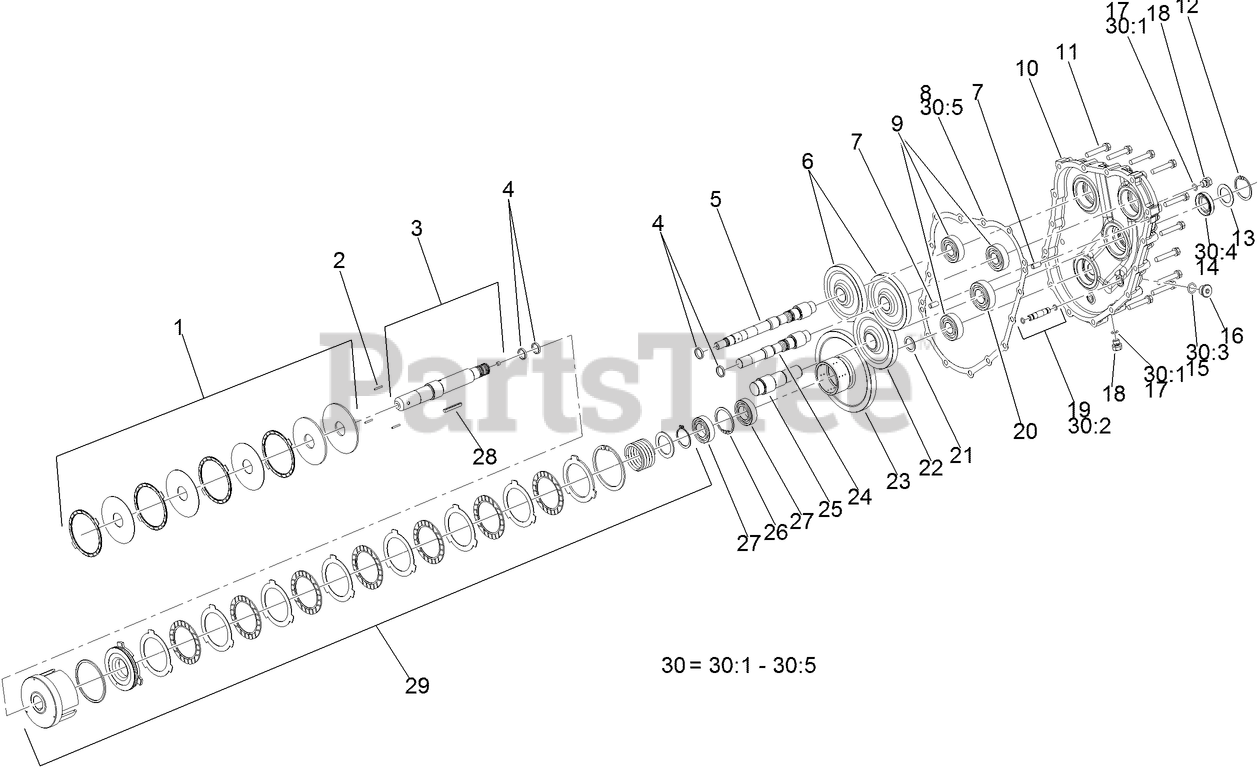

Transmission Assembly (cont.) Gear Case and Clutch Assembly Parts Diagram

  • Title

1

Toro 107-0839

PTO BRAKE ASM

$265.99

$

Usually ships in 3-6 days

0

2

Toro 107-0837

ROD-PUSH

$4.49

$

Usually ships in 3-6 days

0

3

Toro 107-0833

PTO SHAFT ASM

$630.99

$

Usually ships in 3-6 days

0

4

Toro 107-0825

RING-SEAL

$28.99

$

Usually ships in 3-6 days

0

5

Toro 107-0827

SHAFT-PUMP

$78.99

$

Usually ships in 3-6 days

0

6

Toro 107-0823

GEAR-PUMP

$287.99

$

Usually ships in 3-6 days

0

7

Toro 92-0765

PIN-PARALLEL

$4.49

$

Usually ships in 3-6 days

0

8

Toro 107-0816

GASKET-HOUSING, GEAR

$81.99

$

In Stock, only 3 left!

0

9

Toro 107-0826

BEARING

$38.99

$

Usually ships in 3-6 days

0

10

Toro 120-5152

HOUSING-CASE, GEAR

$2013.99

$

Usually ships in 3-6 days

0

11

Toro 107-0863

BOLT

$4.49

$

Usually ships in 3-6 days

0

12

Toro 92-0757

RING-SNAP

$8.49

$

Usually ships in 3-6 days

0

13

Toro 107-0813

SPACER

$10.99

$

Usually ships in 3-6 days

0

14

Toro 107-0814

SEAL

$58.99

$

Usually ships in 3-6 days

0

15

Toro 104-3298

See Supercession: 93-0475
(Superseded to 93-0475)

$10.99

$

Usually ships in 3-6 days

0

16

Toro 107-0861

PLUG-NPTF

$13.99

$

Usually ships in 3-6 days

0

17

Toro 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

18

Toro 107-0857

PLUG

$38.99

$

Usually ships in 3-6 days

0

19

Toro 107-0811

PIPE

$164.99

$

Usually ships in 3-6 days

0

20

Toro 107-0821

BEARING

$46.99

$

Usually ships in 3-6 days

0

21

Toro 107-0836

SPACER

$2.49

$

Usually ships in 3-6 days

0

22

Toro 107-0820

GEAR-INPUT

$287.99

$

Usually ships in 3-6 days

0

23

Toro 107-0834

GEAR-PTO

$706.99

$

Usually ships in 3-6 days

0

24

Toro 107-0822

SHAFT-PUMP

$189.99

$

Usually ships in 3-6 days

0

25

Toro 107-0819

SHAFT-INPUT

$176.99

$

Usually ships in 3-6 days

0

26

Toro 92-0758

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

27

Toro 107-0838

BEARING

$73.99

$

Usually ships in 3-6 days

0

28

Toro 107-0866

KEY

$6.99

$

Usually ships in 3-6 days

0

29

Toro 107-0835

CLUTCH CYLINDER ASM

$994.99

$

Usually ships in 3-6 days

0

30

Toro 107-0854

GEAR HOUSING SEAL KIT

$97.99

$

Usually ships in 3-6 days

0

30:1

Toro 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

30:2

O-RING

Note: Not serviced separately

$

$

Not available

30:3

Toro 104-3298

See Supercession: 93-0475
(Superseded to 93-0475)

$10.99

$

Usually ships in 3-6 days

0

30:4

Toro 107-0814

SEAL

$58.99

$

Usually ships in 3-6 days

0

30:5

Toro 107-0816

GASKET-HOUSING, GEAR

$81.99

$

In Stock, only 3 left!

0
