72042 (264-6) - Toro Yard Tractor (SN: 059000001 - 059000796) (1995) Gear Shift Linkage Parts Diagram

Yard Tractor

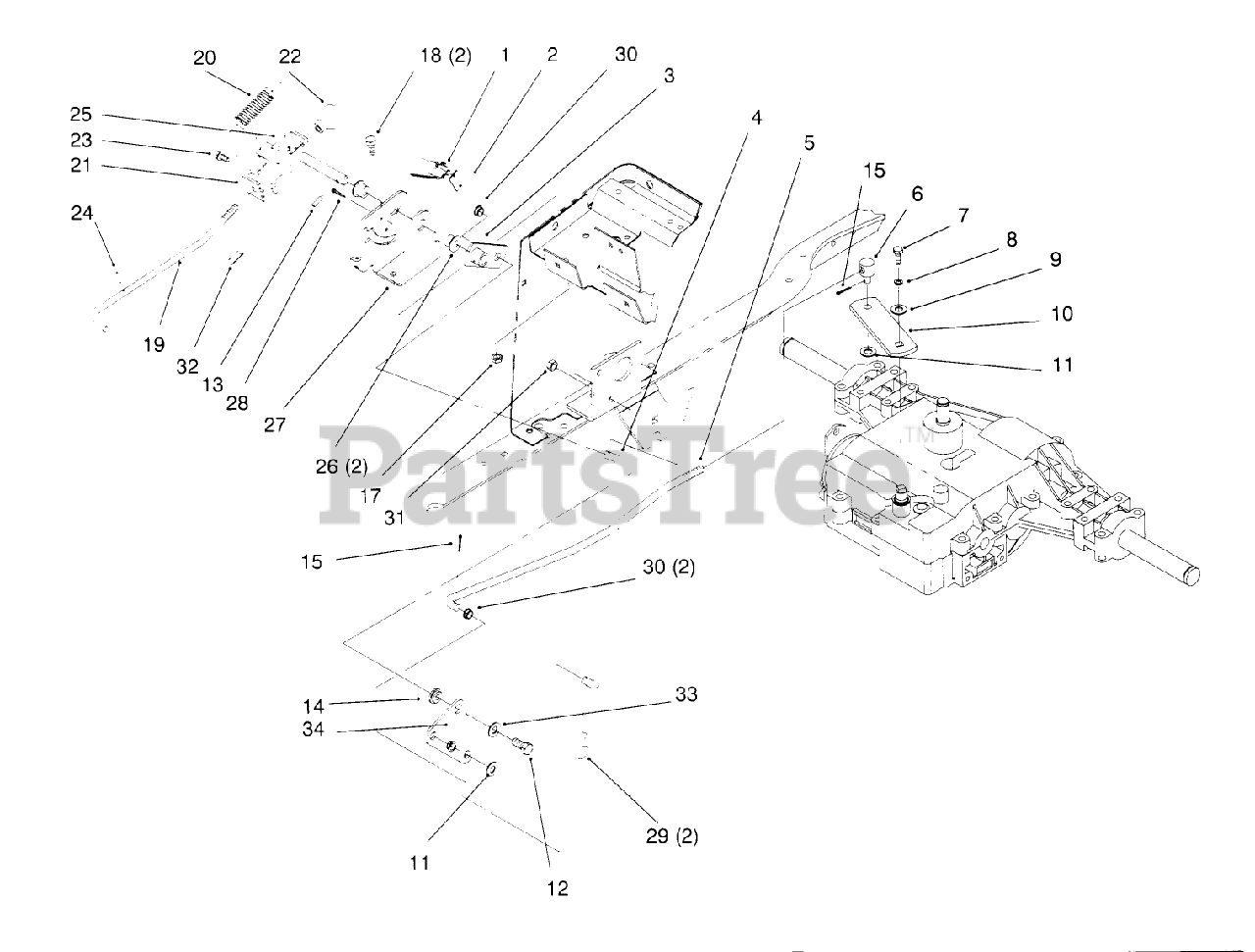

Gear Shift Linkage Parts Diagram

  • Title

1

Toro 115230

SWITCH - CLUTCH

Note: Refer to Lawn/Yard Tractor Service Bulletin for early models with black switches (P/N, Removal, Installation).

$38.99

$

In Stock, only 1 left!

0

2

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

3

Toro 92-6926

See Supercession: 92-6926-03
(Superseded to 92-6926-03)

$

$

Not available

4

Toro 92-7005

ROD - LINKAGE

$

$

Not available

5

Toro 92-6896

ROD - TRANSAXLE SHIFT

$

$

Not available

6

Toro 110656

See Supercession: 101161
(Superseded to 101161)

$

$

Not available

7

Toro 329-23

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-5461

SPACER

$3.49

$

Usually ships in 3-6 days

0

10

Toro 92-6886

BRK-TRASXL SHI

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 32121-4

PIN-ROLL, SLOTTED

$4.49

$

Usually ships in 3-6 days

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 92-6920

ROD - SHIFT

$90.99

$

In Stock, only 2 left!

0

20

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

21

Toro 92-6921

BRACKET - SHAFT

$

$

Not available

22

Toro 233-42

KNOB

$15.99

$

In Stock, only 2 left!

0

23

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 32121-97

PIN

$0.99

$

In Stock, only 1 left!

0

25

Toro 92-6919

PIVOT ARM WA PLATED

$

$

Not available

26

Toro 256-219

BUSHING

$10.99

$

Usually ships in 3-6 days

0

27

Toro 93-0503-03

BRKT-PIVOT MTG

$

$

Not available

28

Toro 147665

See Supercession: 95-3003
(Superseded to 95-3003)

$3.99

$

Usually ships in 3-6 days

0

29

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

30

Toro 92-6875

See Supercession: 5979
(Superseded to 5979)

$3.99

$

In Stock, Qty 6

0

31

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

32

Toro 93-3141

DECAL - REVERSE GEAR

$

$

Not available

32

Toro 93-3144

DECAL - REVERSE SHIFT

$

$

Not available

33

Toro 3256-71

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

34

Toro 93-0524

BRACKET - PIVOT

$

$

Not available
