72042 (264-6) - Toro Yard Tractor (SN: 059000001 - 059000796) (1995) Peerless Transaxle 820-024 Parts Diagram

Yard Tractor

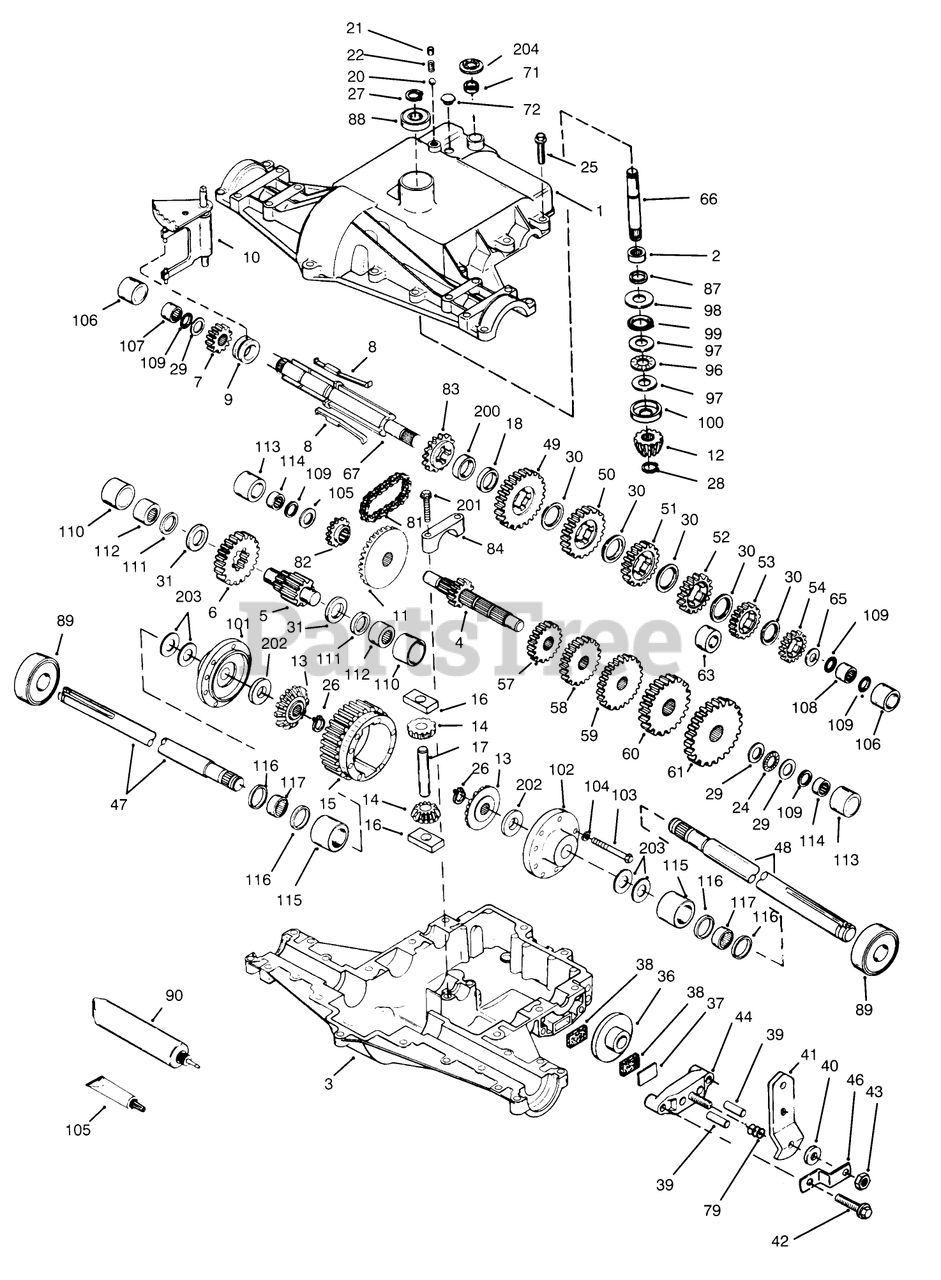

Peerless Transaxle 820-024 Parts Diagram

  • Title

1

Toro 772098A

Cover-Transaxle (Only On: 72042, 72062)

$

$

Currently unavailable

2

Toro 780155

Bearing-Needle (Only On: 72042, 72062)

$

$

Currently unavailable

3

Toro 770088

Case-Transaxle (Only On: 72042,72062)

$

$

Currently unavailable

4

Toro 776291

Countershaft-Gear 9t (Only On: 72042, 72062)

$

$

Currently unavailable

5

Toro 776275

Shaft-Output (Only On: 72042, 72062)

$

$

Currently unavailable

6

Toro 778247

Gear-Output 35t (Only On: 72042,72062)

$

$

Currently unavailable

7

Toro 778253

Gear-Spur 15t (Only On: 72042,72062)

$

$

Currently unavailable

8

Toro 792138

Key-Shift (Only On: 72042, 72062)

$

$

Currently unavailable

9

Toro 784216

Collar-Shift

$

$

Currently unavailable

10

Toro 784342

Fork-Shift (Only On: 72042,72062)

$

$

Currently unavailable

11

Toro 778246

Gear-Bevel 33t (Only On: 72042, 72062)

$

$

Currently unavailable

12

Toro 778245

Pinion-Input Bevel 13t (Only On: 72042, 72062)

$

$

Currently unavailable

13

Toro 778198

Gear-Bevel

$

$

Currently unavailable

14

Toro 778197

Pinion-Bevel

$

$

Currently unavailable

15

Toro 778248

Gear-Ring (Only On: 72042,72062)

$

$

Currently unavailable

16

Toro 786027

Biock-Drive

$

$

Currently unavailable

17

Toro 786019

Pin-Drive

$

$

Currently unavailable

18

Toro 786121

Spacer .350-.340 Thick (Only On: 72042, 72062)

$

$

Currently unavailable

20

Toro 792077

Ball-Steel

$

$

Currently unavailable

21

Toro 792078

Screw-Set

$

$

Currently unavailable

22

Toro 792079

Spring

$

$

Currently unavailable

24

Toro 780071

Bearing-Thrust

$

$

Currently unavailable

25

Toro 792129

Screw 5/16-18x1 1/4 (Only On: 72042, 72062)

$

$

Currently unavailable

26

Toro 792018

Ring-Snap

$

$

Currently unavailable

27

Toro 792018

Ring-Snap

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

30

Toro 780108

Washer

$

$

Currently unavailable

31

Toro 780128

Washer (Only On: 72042,72062)

$

$

Currently unavailable

36

Toro 790043

Washer (Only On: 72042, 72062)

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

38

Toro 799021

Pad-Brake 2/Pkg

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

$

$

Currently unavailable

40

Toro 792076A

Washer

$

$

Currently unavailable

41

Toro 790013

Lever-Brake

$

$

Currently unavailable

42

Toro 792073

Ring Set (.020 O S)

$93.99

$

Usually ships in 3-6 days

0

43

Toro 792075

Locknut

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

$

$

Currently unavailable

46

Toro 786086

Bracket

$

$

Currently unavailable

47

Toro 774958

Axle 12 9/16" Long (Only On: 72042,72062)

$

$

Currently unavailable

48

Toro 774959

Axle 16 7/16" Long (Only On: 72042, 72062)

$

$

Currently unavailable

49

Toro 778216A

Gear-Spur 41t (Only On: 72042,72062)

$

$

Currently unavailable

50

Toro 778206A

Gear-Spur 35t (Only On: 72042,72062)

$

$

Currently unavailable

51

Toro 778205A

Gear-Spur 30t (Only On: 72042, 72062)

$

$

Currently unavailable

52

Toro 778204A

Gear Spur 25t (Only On: 72042,72062)

$

$

Currently unavailable

53

Toro 778203A

Gear Spur 22t (Only On: 72042,72062)

$

$

Currently unavailable

54

Toro 778273

Gear Spur 19t

$

$

Currently unavailable

57

Toro 778199

Gear Spur 15t (Only On: 72042, 72062)

$

$

Currently unavailable

58

Toro 778200

Gear Spur 20t (Only On: 72042, 72062)

$

$

Currently unavailable

59

Toro 778201

Gear Spur 25t (Only On: 72042, 72062)

$

$

Currently unavailable

60

Toro 778202

Gear Spur 28t (Only On: 72042,72062)

$

$

Currently unavailable

61

Toro 778222

Gear Spur 30t (Only On: 72042,72062)

$

$

Currently unavailable

65

Toro 780109

Washer

$

$

Currently unavailable

66

Toro 776293

Shaft-Input 30.910" Lg (Only On: 72042, 72062)

$

$

Currently unavailable

67

Toro 776313

Shaft-Shifter/Brake (Only On: 72042, 72062)

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

$

$

Currently unavailable

72

Toro 792074

Plug

$

$

Currently unavailable

79

Toro 792144

Piston ASM (.020 O S)

$

$

Currently unavailable

81

Toro 786062A

Chain-Roller

$

$

Currently unavailable

82

Toro 786061

Sprocket 10t

$

$

Currently unavailable

83

Toro 786124

Sprocket (14 teeth)

$

$

Currently unavailable

84

Toro 786131

Cap-Bearing (Only On: 72042, 72062)

$

$

Currently unavailable

87

Toro 788042

Seal Oil

$

$

Currently unavailable

88

Toro 780119

Bearing-Ball

$

$

Currently unavailable

89

Toro 780050

Bearing-Ball

$

$

Currently unavailable

90

Toro 788067b

Grease 32 Oz

$

$

Currently unavailable

96

Toro 780084

Bearing-Thrust (Only On: 72042,72062)

$

$

Currently unavailable

97

Toro 780051

Washer

$

$

Currently unavailable

98

Toro 780165

Washer (Only On: 72042, 72062)

$

$

Currently unavailable

99

Toro 788077

O Ring (Only On: 72042,72062)

$

$

Currently unavailable

100

Toro 780166

Washer-Cupped (Only On: 72042,72062)

$

$

Currently unavailable

101

Toro 774833

Carrier-Differential (Only On: 72042, 72062)

$

$

Currently unavailable

102

Toro 774834

Carrier-Differential (Only On: 72042, 72062)

$

$

Currently unavailable

103

Toro 792020

Screw-Hex Hd.

$

$

Currently unavailable

104

Toro 792006

Lockwasher

$

$

Currently unavailable

105

Toro 780153

Washer (Only On: 72042,72062)

$

$

Currently unavailable

106

Toro 786144

Sleeve (Only On: 72042,72062)

$

$

Currently unavailable

107

Toro 780152

Bearing-Needle (Only On: 72042,72062)

$

$

Currently unavailable

108

Toro 780150

Bearing-Needle (Only On: 72042, 72062)

$

$

Currently unavailable

109

Toro 792001

O Ring

$

$

Currently unavailable

110

Toro 786142

Sleeve (Only On: 72042, 72062)

$

$

Currently unavailable

111

Toro 788071

Ring-Square Cut (Only On: 72042, 72062)

$

$

Currently unavailable

112

Toro 780168

Bearing-Needle (Only On: 72042, 72062)

$

$

Currently unavailable

113

Toro 786143

Sleeve (Only On: 72042, 72062)

$

$

Currently unavailable

114

Toro 780151

Bearing-Needle (Only On: 72042,72062)

$

$

Currently unavailable

115

Toro 786145

Sleeve (Only On: 72042,72062)

$

$

Currently unavailable

116

Toro 788070

Ring-Square Cut (Only On: 72042,72062)

$

$

Currently unavailable

117

Toro 780031

Bearing-Needle (Only On: 72042,72062)

$

$

Currently unavailable

150

Toro 510334

Gasket Eliminator

$

$

Currently unavailable

200

Toro 786122

Spacer .276-.268 Thick (Only On: 72042, 72062)

$

$

Currently unavailable

201

Toro 792073

Ring Set (.020 O S)

$93.99

$

Usually ships in 3-6 days

0

202

Toro 780107

Washer

$

$

Currently unavailable

203

Toro 780042

Washer

$

$

Currently unavailable

204

Toro 792145

Pushnut

$

$

Currently unavailable
