72042 (264-6) - Toro Yard Tractor (SN: 059000797 - 059999999) (1995) Battery Parts Diagram

Yard Tractor

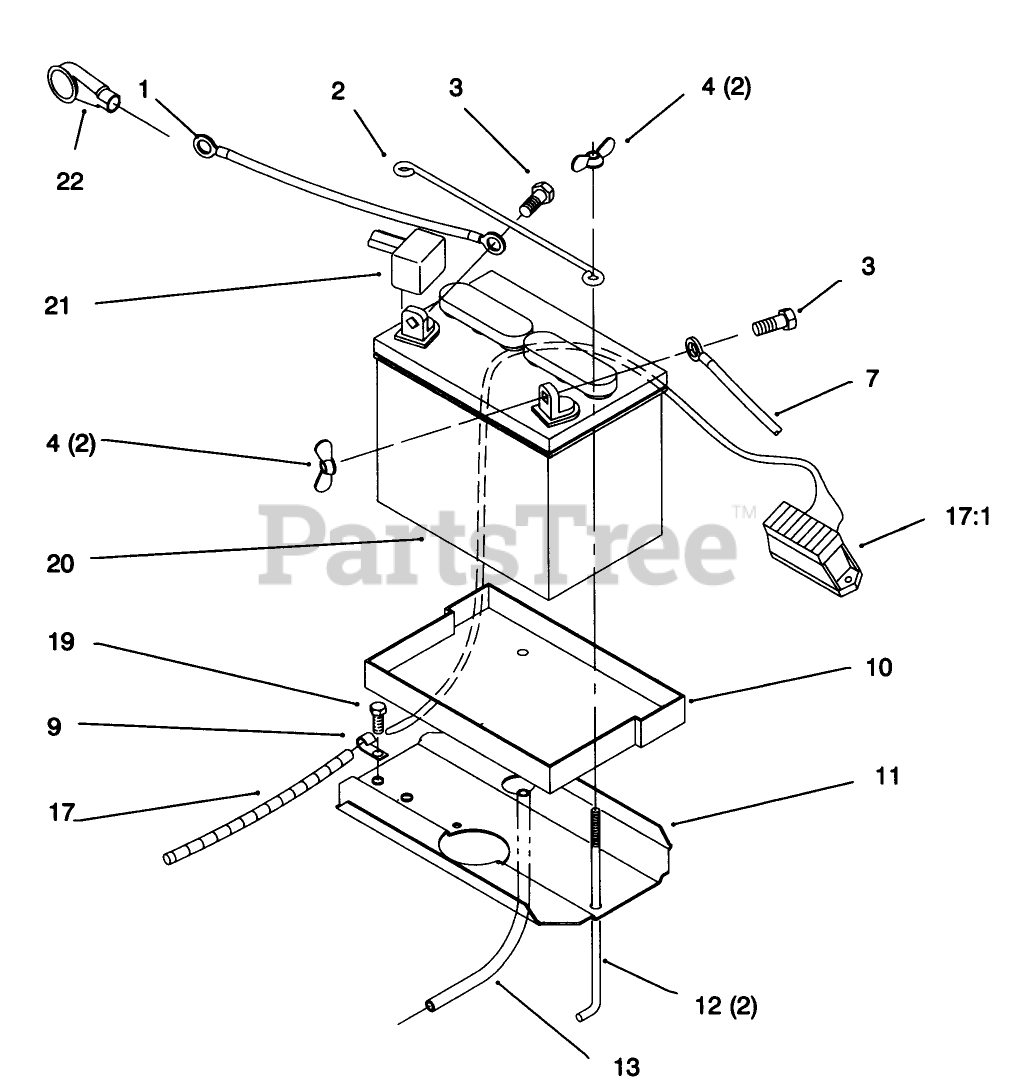

Battery Parts Diagram

  • Title

1

Toro 92-6989

WIRE-21 INCH

$29.99

$

Usually ships in 3-6 days

0

1

Toro 92-6990

WIRE -10" RED

$41.99

$

Usually ships in 3-6 days

0

2

Toro 117316

ROD-BATTERY HOLD DWN

$31.99

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 3 left!

0

7

Toro 111078

WIRE -BLACK

$29.99

$

Usually ships in 3-6 days

0

7

Toro 93-0324

CABLE

$

$

Not available

9

Toro 8830

CLIP

$

$

Not available

10

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 3 left!

0

11

Toro 78-6820-03

PLATE-BATTERY

$

$

Not available

12

Toro 109547

HOOK

$10.99

$

In Stock, only 1 left!

0

13

Toro 114720

TUBE-21" BATTERY DRAIN

$

$

Not available

17

Toro 92-6904

WIRE HARNESS

$1062.99

$

Usually ships in 3-6 days

0

17

Toro 92-6905

WIRE HARNESS

$

$

Not available

17

Toro 92-6907

DISCONTINUED

$

$

Not available

17:1

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 2 left!

0

19

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

20

Toro 94-1866

DISCONTINUED

$

$

Not available

20

Toro 94-1867

DISCONTINUED
(Superseded to 104-2492)

$

$

Not available

20

Toro 94-1865

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

21

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$27.99

$

Usually ships in 3-6 days

0

22

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$

$

Not available
