72042 (264-6) - Toro Yard Tractor (SN: 059000797 - 059999999) (1995) Front Axle Parts Diagram

Yard Tractor

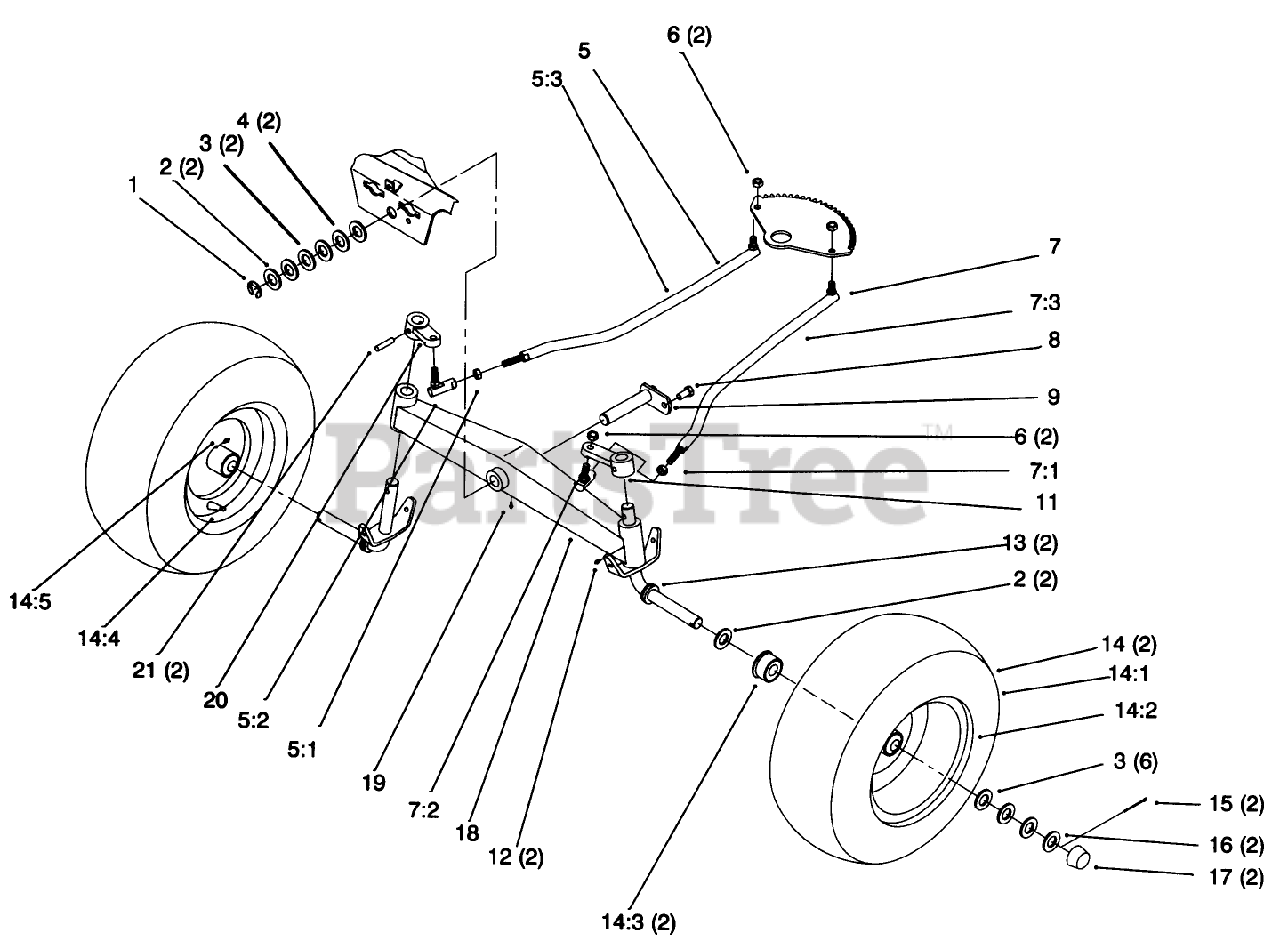

Front Axle Parts Diagram

  • Title

1

Toro 5618

E-RING

$1.49

$

In Stock, only 3 left!

0

2

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

3

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

4

Toro 9202324

WASHER

$1.99

$

In Stock, only 3 left!

0

5

Toro 92-6883

LINKAGE-STEERING, RH

$205.99

$

In Stock, only 1 left!

0

5:1

Nut-HJ

Note: Not serviced

$

$

Not available

5:2

Toro 78-2920

See Supercession: 94-7572
(Superseded to 94-7572)

$37.99

$

In Stock, Qty 5

0

5:3

Toro 78-5801

See Supercession: 92-6883
(Superseded to 92-6883)

$205.99

$

In Stock, only 1 left!

0

6

Toro 9150026

NUT

$1.99

$

In Stock, Qty 20+

0

7

Toro 92-6884

LINKAGE-STEERING, LH

$205.99

$

In Stock, only 2 left!

0

7:1

Nut-HJ

Note: Not serviced

$

$

Not available

7:2

Toro 78-2920

See Supercession: 94-7572
(Superseded to 94-7572)

$37.99

$

In Stock, Qty 5

0

7:3

Toro 78-5811

See Supercession: 92-6884
(Superseded to 92-6884)

$205.99

$

In Stock, only 2 left!

0

8

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

0

9

Toro 92-7057-03

PIN-AXLE

$78.99

$

Usually ships in 3-6 days

0

11

Toro 78-1940-01

See Supercession: 78-1940-03
(Superseded to 78-1940-03)

$

$

Not available

12

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

13

Toro 78-2601-01

See Supercession: 78-2601-03
(Superseded to 78-2601-03)

$124.99

$

In Stock, only 1 left!

0

14

Wheel AND Tire ASM

Note: Not serviced

$

$

Not available

14:1

Toro 117127

TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL

$

$

Not available

14:2

Toro 78-1680

See Supercession: 93-9801
(Superseded to 93-9801)

$280.99

$

Usually ships in 3-6 days

0

14:3

Toro 110513

BEARING-WHEEL

$25.99

$

In Stock, Qty 20+

0

14:4

Toro 5108

VALVE

$8.49

$

In Stock, only 2 left!

0

14:5

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

16

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 16

0

17

Toro 61-9780

CAP-HUB

$8.99

$

In Stock, Qty 20+

0

18

Toro 78-7960-01

AXLE ASM-FRONT

$

$

Not available

19

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

20

Toro 78-1950-01

See Supercession: 78-1950-03
(Superseded to 78-1950-03)

$137.99

$

Usually ships in 3-6 days

0

21

Toro 933270

PIN

$6.99

$

In Stock, Qty 6

0
