72064 (265-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) Hydro Brake Parts Diagram

Lawn & Garden Tractor

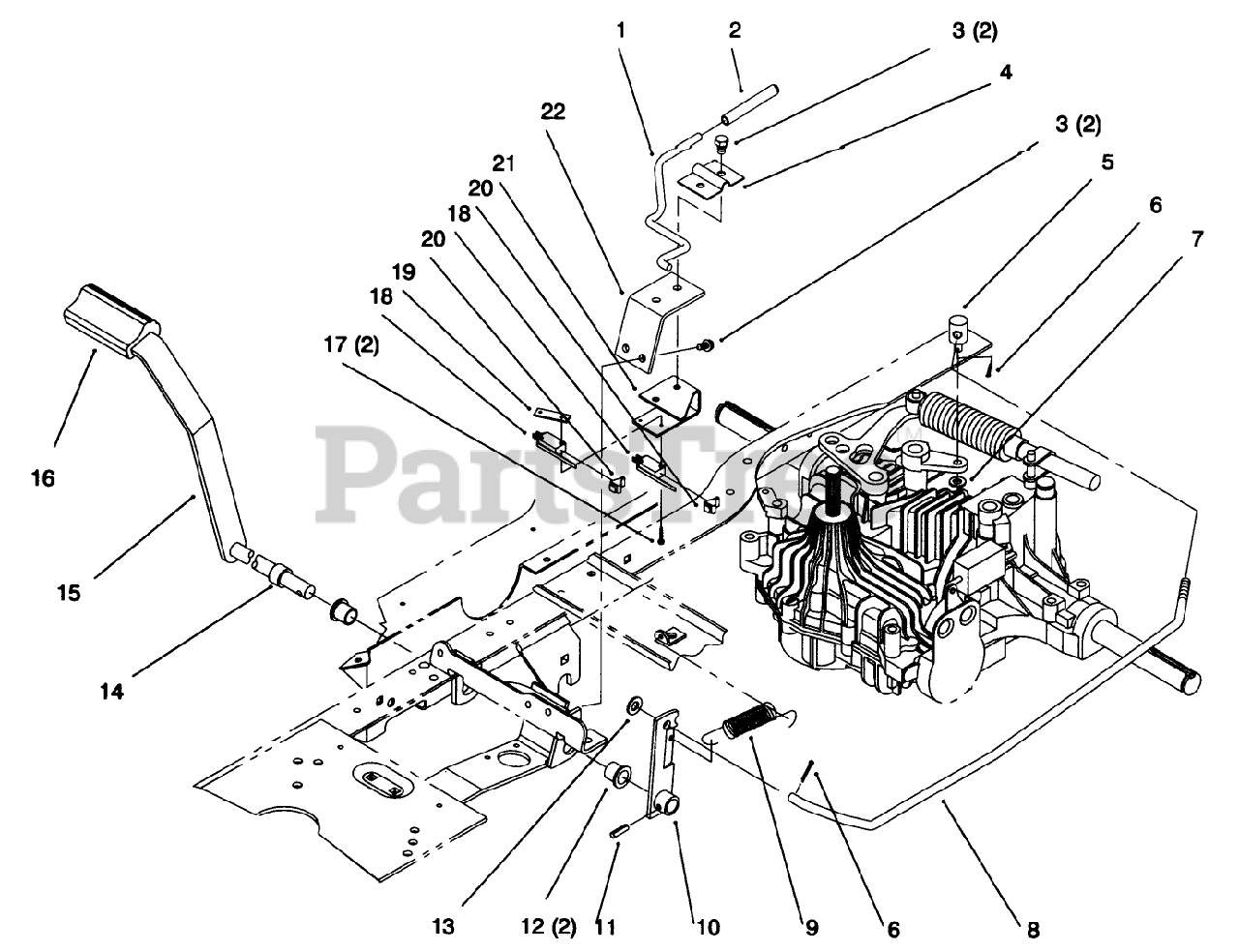

Hydro Brake Parts Diagram

  • Title

1

Toro 93-3167

ROD - PARKING BRAKE

$

$

Not available

2

Toro 92-7009

GRIP - PARKING BRAKE

$

$

Not available

3

Toro 32141-14

Screw-HH

$

$

Currently unavailable

4

Toro 92-7000-03

BRACKET-PARKING BRAKE

$

$

Not available

5

Toro 92-6968

TRUNNION - BRAKE

$53.99

$

Usually ships in 3-6 days

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-6988

DISCONTINUED

$

$

Not available

9

Toro 93-0540

DISCONTINUED

$

$

Not available

10

Toro 94-1722-03

BRAKE LEVER ASM

$

$

Not available

11

Toro 32121-69

PIN-SPRING

$2.49

$

In Stock, only 3 left!

0

12

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, Qty 7

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-6982

SPACER-BRAKE

$

$

Not available

15

Toro 94-4233-03

LEVER - BRAKE ASM

$

$

Not available

16

Toro 65-2920

PAD-PEDAL

$45.99

$

Usually ships in 3-6 days

0

16

Toro 92-6949

TUBE

$29.99

$

Usually ships in 3-6 days

0

16

Toro 94-1720

See Supercession: 94-1722-03
(Superseded to 94-1722-03)

$

$

Not available

17

Toro 147665

See Supercession: 95-3003
(Superseded to 95-3003)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 88-9932

SWITCH-MICRO

$41.99

$

In Stock, only 1 left!

0

19

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

20

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

21

Toro 93-0520-03

BRACKET-BRAKE SWITCH

$

$

Not available

22

Toro 92-7004-03

SUPPORT-P. BRAKE

$18.99

$

Usually ships in 3-6 days

0
