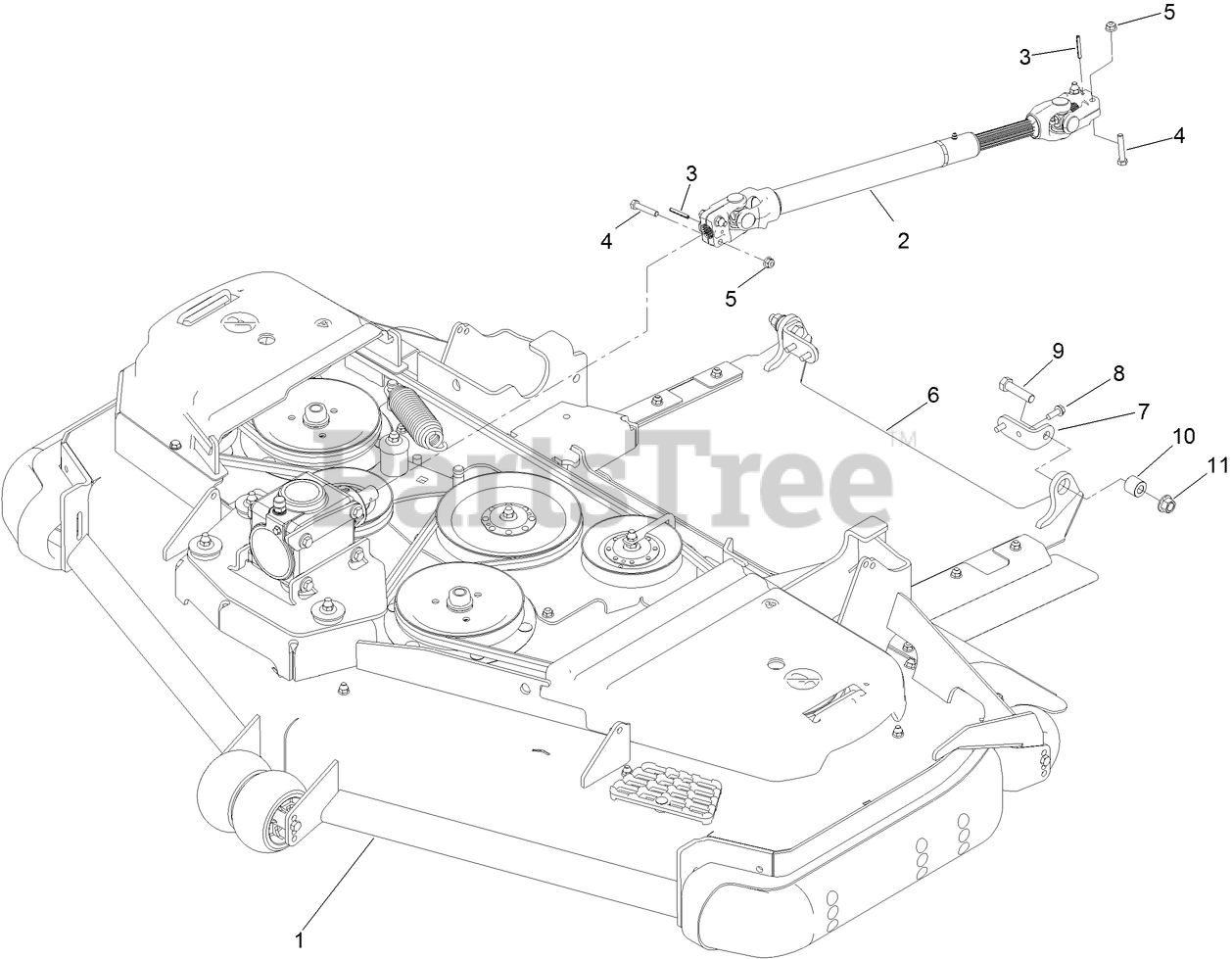

72065 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414999999) Deck and Driveshaft Assembly Parts Diagram
60" Z Master Zero-Turn Mower, Rear-Discharge Deck
Deck and Driveshaft Assembly Parts Diagram
1
DECK ASM-60RD
Note: Not serviced separately
$
$
Not available
Toro 110-3575
DRIVESHAFT ASM
$1025.99
$
Usually ships in 3-6 days
Toro 32121-34
PIN-ROLL
$3.99
$
In Stock, Qty 11
Toro 322-9
SCREW-HH
$3.99
$
In Stock, Qty 20+
Toro 104-8300
NUT-HF, NI
$1.49
$
In Stock, Qty 20+
Toro 126-3317
DISCHARGE TUNNEL ASM
$392.99
$
Usually ships in 3-6 days
Toro 126-2793-03
BRACKET-DISCHARGE
$30.99
$
Usually ships in 3-6 days
Toro 32144-41
SCREW-TAPTITE
$5.99
$
In Stock, Qty 20+
Toro 325-8
SCREW-HH
$5.99
$
In Stock, only 3 left!
Toro 126-1705
BUSHING-SLEEVE
$8.49
$
In Stock, Qty 5
Toro 99-5107
NUT-LOCK
$2.49
$
In Stock, Qty 20+
