72065 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414999999) Idler Mount Assembly No. 126-3271 Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

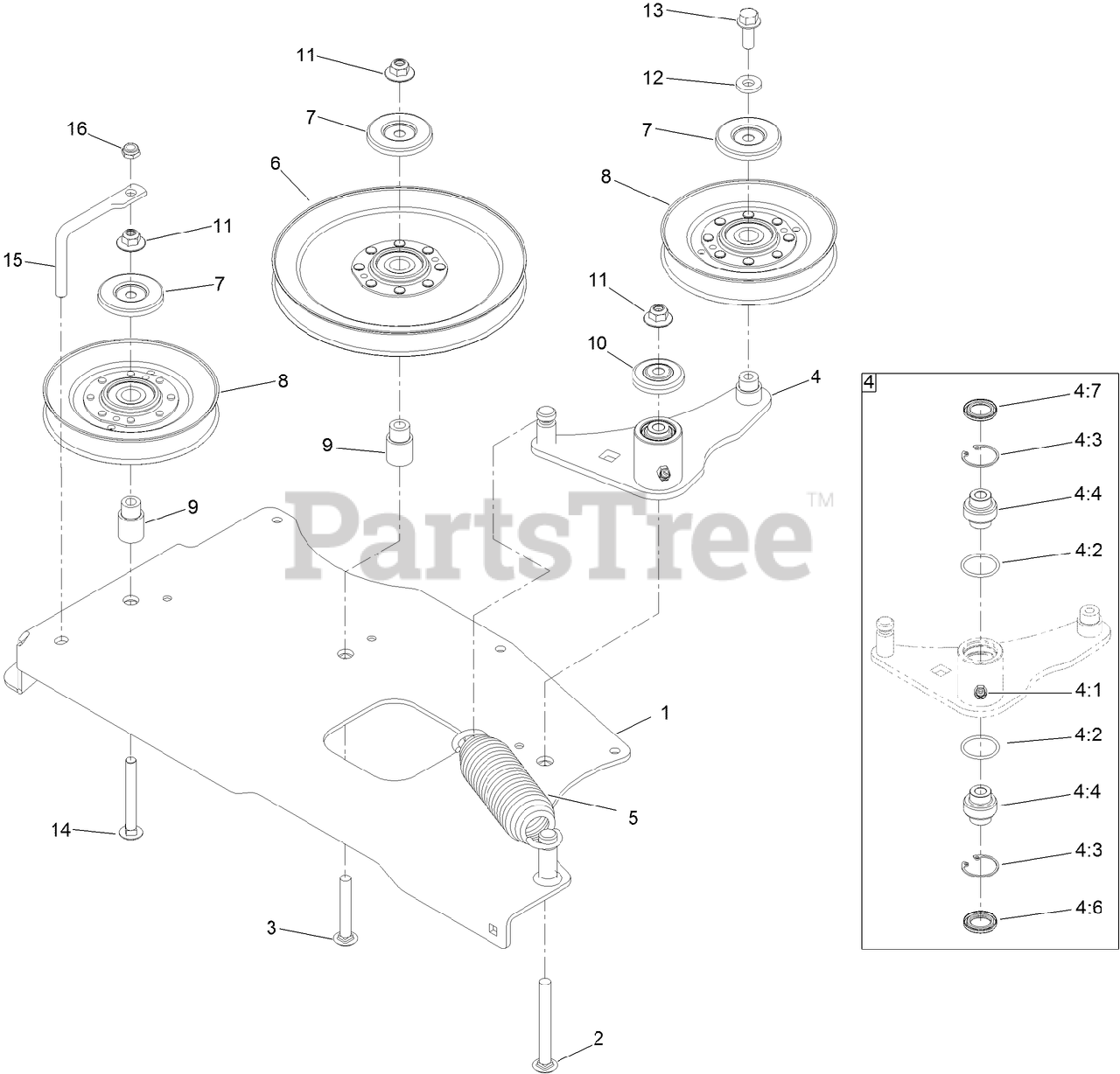

Idler Mount Assembly No. 126-3271 Parts Diagram

  • Title

1

Toro 126-3272-01

MOUNT-IDLER

$299.99

$

Usually ships in 3-6 days

0

2

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$8.49

$

In Stock, Qty 7

0

3

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

4

Toro 126-2967

IDLER ARM ASM

$200.99

$

Usually ships in 3-6 days

0

4:1

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

4:2

Toro 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

4:3

Toro 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

4:4

Toro 103-3504

BEARING-SPHERICAL

$28.99

$

In Stock, Qty 20+

0

4:6

Toro 103-3505

SEAL-LIP, DOUBLE

$6.49

$

In Stock, Qty 20+

0

4:7

Toro 103-3506

SEAL-LIP, SINGLE

$6.49

$

In Stock, Qty 20+

0

5

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

6

Toro 126-7460

IDLER-V

$124.99

$

Usually ships in 3-6 days

0

7

Toro 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

8

Toro 126-8766

IDLER V

$111.99

$

In Stock, only 2 left!

0

9

Toro 126-3312

STANDOFF-IDLER

$18.99

$

Usually ships in 3-6 days

0

10

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

11

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

14

Toro 3231-10

SCREW-CARR

$4.99

$

In Stock, only 4 left!

0

15

Toro 135-0362

GUIDE-BELT

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0
