72071 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) Single Cylinder Engine, Muffler, Pto Assembly Parts Diagram

Lawn & Garden Tractor

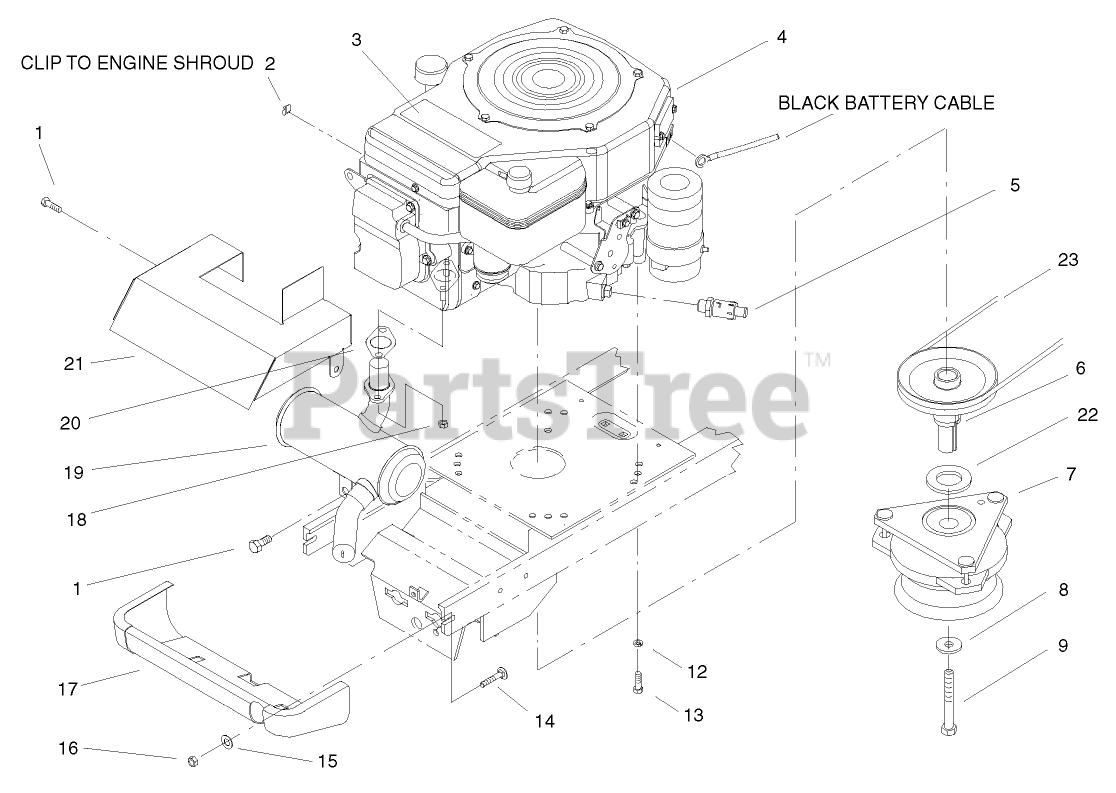

Single Cylinder Engine, Muffler, Pto Assembly Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

2

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

3

Toro 94-2970

DISCONTINUED

$

$

Not available

4

Toro 95-3042

Engine-Kohler(Only On: 70264)

$

$

Currently unavailable

4

Toro 95-3041

DISCONTINUED

$

$

Not available

5

Toro 92-6877

VALVE-DRAIN, OIL

$45.99

$

In Stock, only 2 left!

0

6

Toro 92-6888

PULLEY-ENGINE

$224.99

$

Usually ships in 3-6 days

0

7

Toro 100-6059

See Supercession: 103-9950
(Superseded to 103-9950)

$535.99

$

Usually ships in 3-6 days

0

7

Toro 100-6060

CLUTCH-ELEC PTO

$

$

Not available

8

Toro 112843

WASHER

$3.99

$

In Stock, only 4 left!

0

9

Toro 9114466

SCREW-HH

$

$

Not available

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 33114-030

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 100-3541-01

DISCONTINUED

$

$

Not available

18

Toro 92-6780

See Supercession: 33004-00
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 6

0

19

Toro 98-1761

MUFFLER

$509.99

$

Usually ships in 3-6 days

0

20

Toro 92-6716

KOHLER 12-041-03

$

$

Not available

21

Toro 92-6878-03

SHIELD-MUFFLER

$129.99

$

Usually ships in 3-6 days

0

22

Toro 100-1340

SPACER-CLUTCH

$25.99

$

Usually ships in 3-6 days

0

23

Toro 100-3469

V-BELT

$142.99

$

In Stock, only 3 left!

0
