72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 414000000 - 415207074) Crankshaft and Piston Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

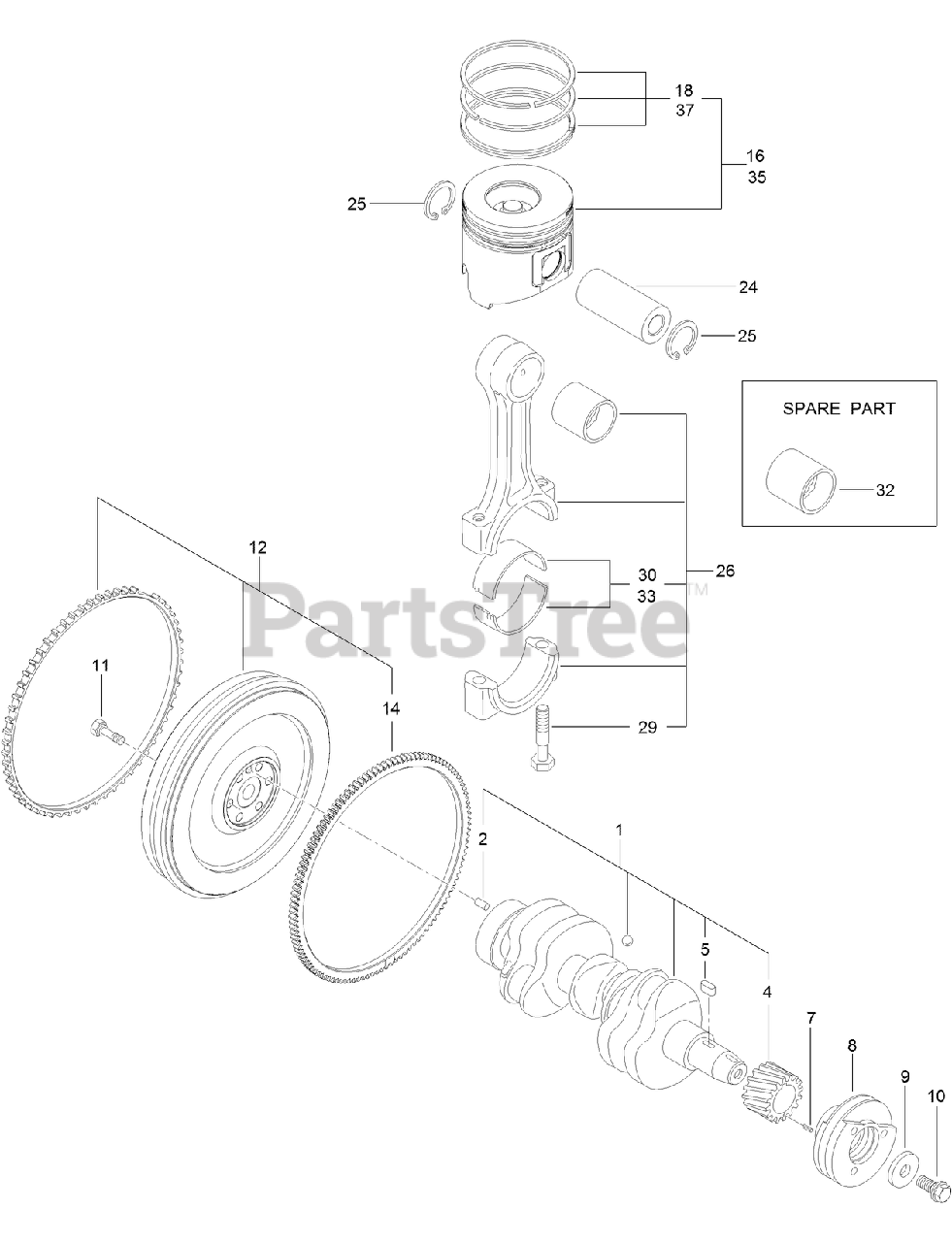

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Toro 127-3800

CRANKSHAFT ASM

$2583.99

$

Usually ships in 3-6 days

0

2

Toro 125-6995

PIN

$6.49

$

Usually ships in 3-6 days

0

4

Toro 125-6937

GEAR

$241.99

$

Usually ships in 3-6 days

0

5

Toro 125-7185

KEY

$2.99

$

Usually ships in 3-6 days

0

7

Toro 125-7182

PIN-SPRING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 127-3801

PULLEY-V

$386.99

$

Usually ships in 3-6 days

0

9

Toro 125-7109

WASHER

$23.99

$

Usually ships in 3-6 days

0

10

Toro 125-6956

BOLT

$47.99

$

Usually ships in 3-6 days

0

11

Toro 125-6951

BOLT

$7.99

$

Usually ships in 3-6 days

0

12

Toro 127-4761

FLYWHEEL ASM

$2212.99

$

Usually ships in 3-6 days

0

14

Toro 127-4703

GEAR

$248.99

$

Usually ships in 3-6 days

0

16

Toro 127-4766

PISTON ASM

$582.99

$

Usually ships in 3-6 days

0

18

Toro 127-4751

PISTON RING ASM

$137.99

$

Usually ships in 3-6 days

0

24

Toro 125-7030

PIN

$50.99

$

Usually ships in 3-6 days

0

25

Toro 125-7180

RING

$2.99

$

Usually ships in 3-6 days

0

26

Toro 125-7242

CONNECTING ROD ASM

$667.99

$

Usually ships in 3-6 days

0

29

Toro 125-6955

BOLT

$24.99

$

Usually ships in 3-6 days

0

30

Toro 125-7018

PIN-CRANK

$24.99

$

Usually ships in 3-6 days

0

32

Toro 125-6997

PIN-PISTON

$25.99

$

Usually ships in 3-6 days

0

33

Toro 125-7019

PIN-CRANK (.25)

$24.99

$

Usually ships in 3-6 days

0

35

Toro 127-4767

PISTON ASM (0.25 O S)

$708.99

$

Usually ships in 3-6 days

0

37

Toro 127-4752

RING SET (0.25 O S)

$104.99

$

Usually ships in 3-6 days

0
