72076 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 414000000 - 415207074) Fuel System Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

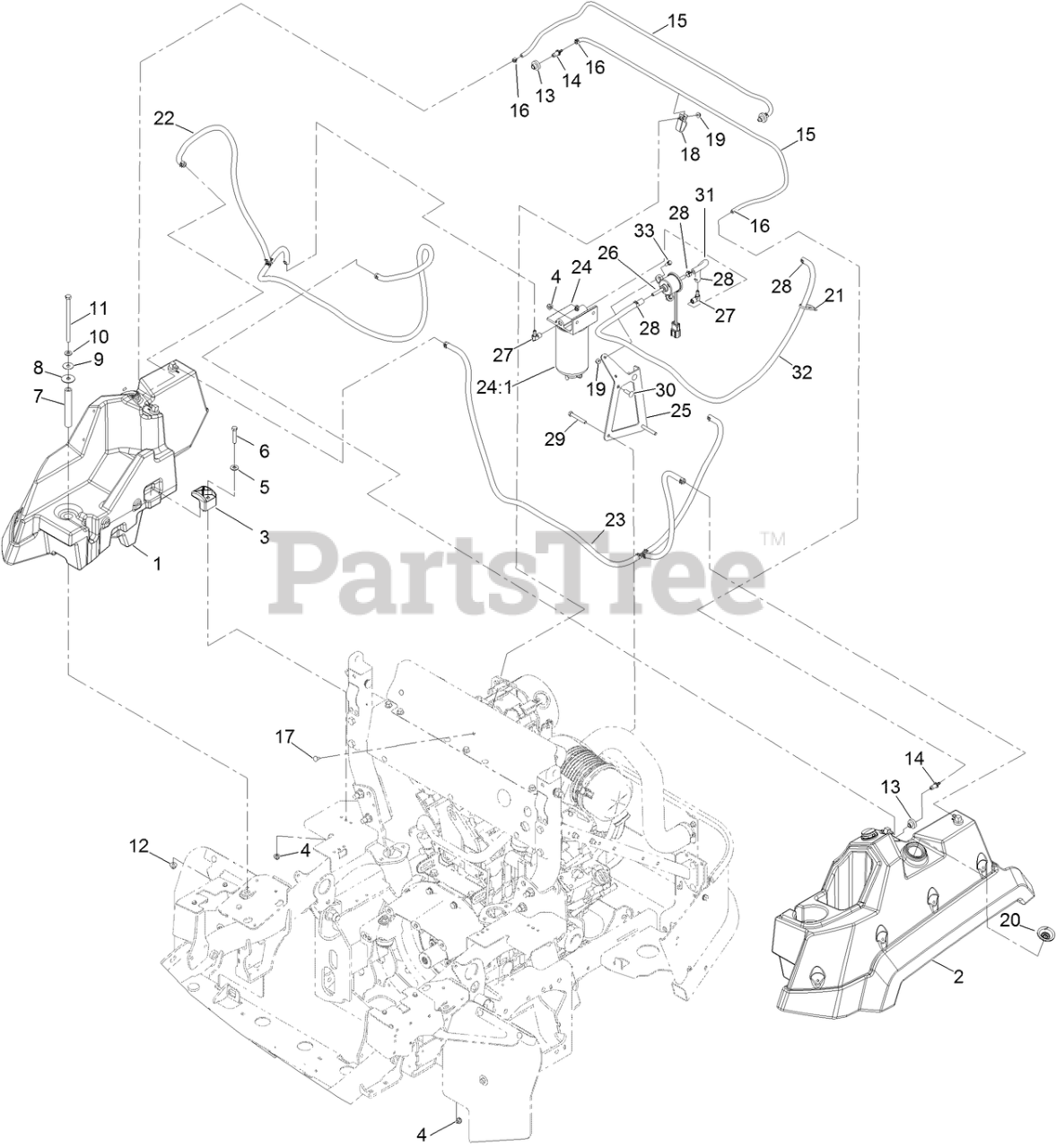

Fuel System Assembly Parts Diagram

  • Title

1

Toro 142-8638

RH FUEL TANK ASM

$475.99

$

Usually ships in 3-6 days

0

2

Toro 142-8637

LH FUEL TANK ASM
(Superseded to 146-1835)

$475.99

$

Usually ships in 3-6 days

0

3

Toro 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 126-8335

TUBE-SPACER

$17.99

$

Usually ships in 3-6 days

0

8

Toro 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 6

0

9

Toro 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 8

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 323-22

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

14

Toro 116-4630

FITTING-ORIFICE, STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

15

Toro 117-6395

HOSE-VENT, TANK

$24.99

$

Usually ships in 3-6 days

0

16

Toro 2412-80

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 6

0

17

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 92-5753

CLAMP-HOSE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 135-2715

CAP-FUEL, DIESEL

$26.99

$

In Stock, only 3 left!

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 135-0512

FUEL SUCTION LINE ASM

$

$

Not available

23

Toro 135-0513

FUEL RETURN LINE ASM

$85.99

$

Usually ships in 3-6 days

0

24

Toro 125-2914

SEPARATOR FILTER ASM

$124.99

$

Usually ships in 3-6 days

0

24:1

Toro 125-2915

FILTER-FUEL/WATER SEPARATOR

$45.99

$

In Stock, Qty 20+

0

25

Toro 126-8795-03

BRACKET-FILTER, FUEL

$39.99

$

Usually ships in 3-6 days

0

26

Toro 121-5613

PUMP-FUEL, ELECTRIC

$369.99

$

Usually ships in 3-6 days

0

27

Toro 353-781

FITTING-HYD, 90

$29.99

$

Usually ships in 3-6 days

0

28

Toro 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

29

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

30

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

31

Toro 108-3280

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

32

Toro 110-7503

HOSE-FUEL

$57.99

$

Usually ships in 3-6 days

0

33

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
