72096 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 406343181 - 407109999) Electrical Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

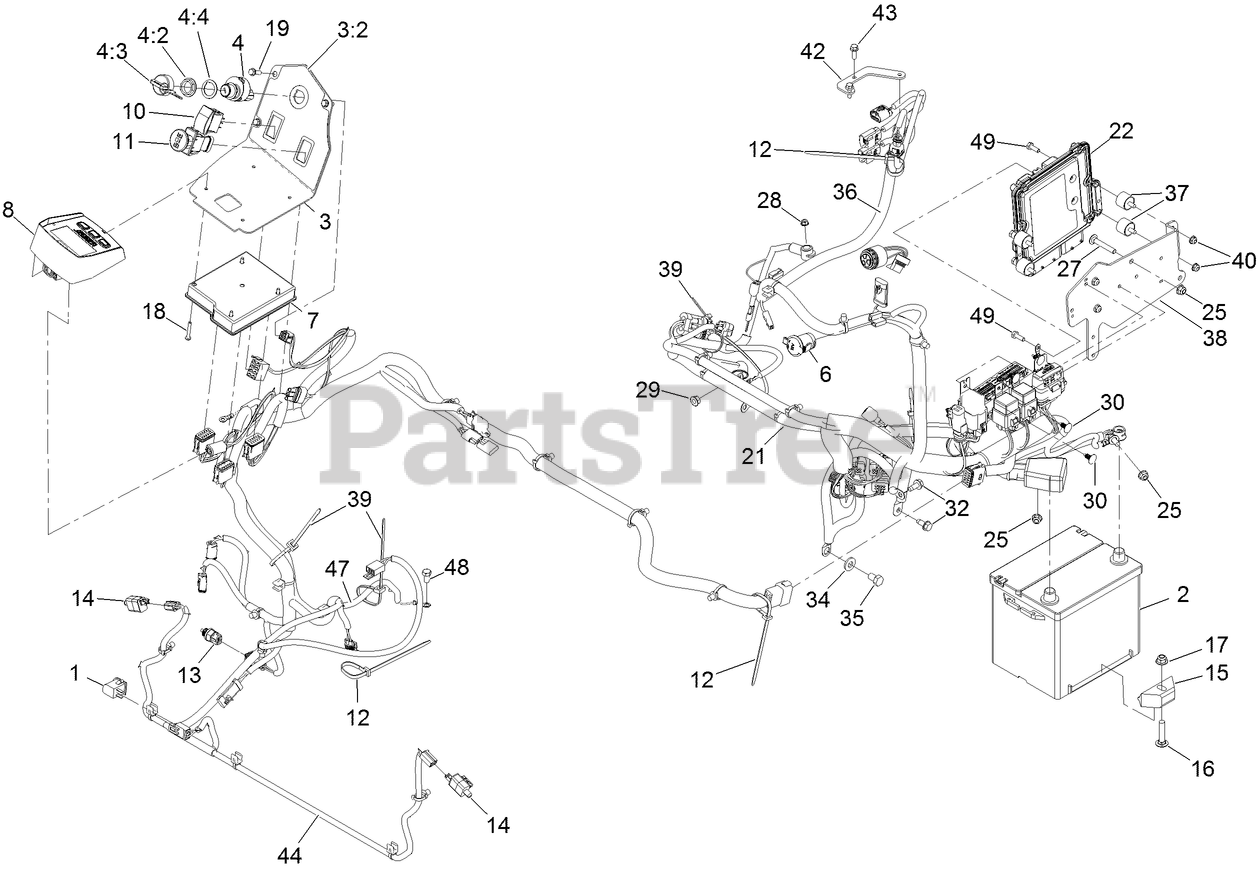

Electrical Assembly Parts Diagram

  • Title

1

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

2

Toro 106-5187

BATTERY-DRY
(Superseded to 145-2823)

$254.99

$

Usually ships in 3-6 days

0

3

Toro 135-6161

CONSOLE ASM

$94.99

$

Usually ships in 3-6 days

0

3:2

Toro 135-0398

DECAL-CONSOLE

$20.99

$

Usually ships in 3-6 days

0

4

Toro 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

4:2

Toro 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

4:3

Toro 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 1 left!

0

4:4

Toro 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

6

Toro 126-6499

PORT-POWER, 12V

$17.99

$

Usually ships in 3-6 days

0

7

Toro 135-3427

MODULE-MCU

$422.99

$

Usually ships in 3-6 days

0

8

Toro 126-9976

MODULE-HORIZON

$640.99

$

Usually ships in 3-6 days

0

10

Toro 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0

11

Toro 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 126-7698

SENSOR-TEMPERATURE
(Superseded to 146-3819)

$84.99

$

In Stock, only 1 left!

0

14

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

15

Toro 138-6335

RETAINER-BATTERY

$12.99

$

Usually ships in 3-6 days

0

16

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 126-5092

SCREW-PPH

$3.99

$

Usually ships in 3-6 days

0

19

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

21

Toro 126-7406

CABLE-BATTERY

$187.99

$

Usually ships in 3-6 days

0

22

Toro 127-3085

E C U ASM
(Superseded to 121-5592)

$3948.99

$

Usually ships in 3-6 days

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

28

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

29

Toro 127-2371

NUT-HF

$3.49

$

Usually ships in 3-6 days

0

30

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Toro 126-7352

HARNESS-WIRE
(Superseded to 142-7958)

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$1005.99

$

In Stock, only 1 left!

0

37

Toro 125-2674

MOUNT-CYLINDRICAL

$7.49

$

Usually ships in 3-6 days

0

38

Toro 126-8706-03

MOUNT-CONTROL UNIT, ENGINE

$50.99

$

Usually ships in 3-6 days

0

39

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

40

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

42

Toro 135-0071

BRACKET-WIRING, ENGINE

$12.99

$

Usually ships in 3-6 days

0

43

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

44

Toro 126-8269

HARNESS-WIRE

$730.99

$

Usually ships in 3-6 days

0

47

Toro 135-3998

HARNESS-WIRE, JUMPER

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$34.99

$

Usually ships in 3-6 days

0

48

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0

49

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
