72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414133289) Center Deck and Drive Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

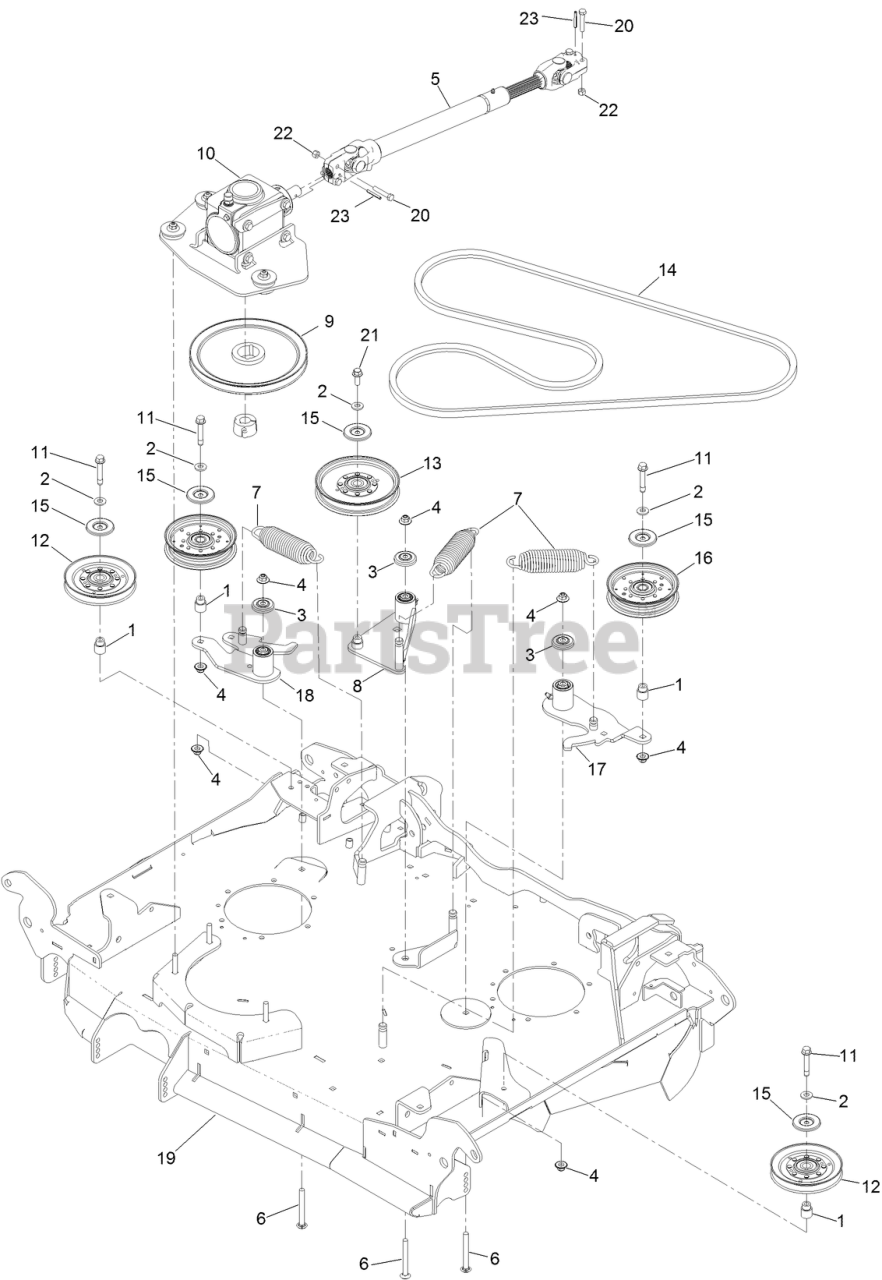

Center Deck and Drive Assembly Parts Diagram

  • Title

1

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 16

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 110-3575

DRIVESHAFT ASM

$1025.99

$

Usually ships in 3-6 days

0

6

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$8.49

$

In Stock, Qty 7

0

7

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

8

Toro 126-2585

IDLER ARM ASM

$210.99

$

In Stock, only 2 left!

0

9

Toro 126-2822

PULLEY

$144.99

$

Usually ships in 3-6 days

0

10

Toro 126-2951

See Supercession: 130-8659
(Superseded to 130-8659)

$1024.99

$

Usually ships in 3-6 days

0

11

Toro 126-2956

SCREW-HHF W/ PATCH

$7.49

$

In Stock, only 2 left!

0

12

Toro 126-2960

IDLER-V

$92.99

$

Usually ships in 3-6 days

0

13

Toro 126-7685

IDLER-PULLEY

$68.99

$

In Stock, Qty 16

0

14

Toro 126-7924

V-BELT

$129.99

$

In Stock, Qty 20+

0

15

Toro 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

16

Toro 126-9187

PULLEY-IDLER, FLAT

$66.99

$

In Stock, only 2 left!

0

17

Toro 126-9435

IDLER ASM

$197.99

$

Usually ships in 3-6 days

0

18

Toro 126-9438

IDLER ASM

$197.99

$

Usually ships in 3-6 days

0

19

Toro 140-0974

CENTER DECK ASM

$2943.99

$

Usually ships in 3-6 days

0

20

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 11

0
