72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414133289) Center Deck Hose and Switch Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

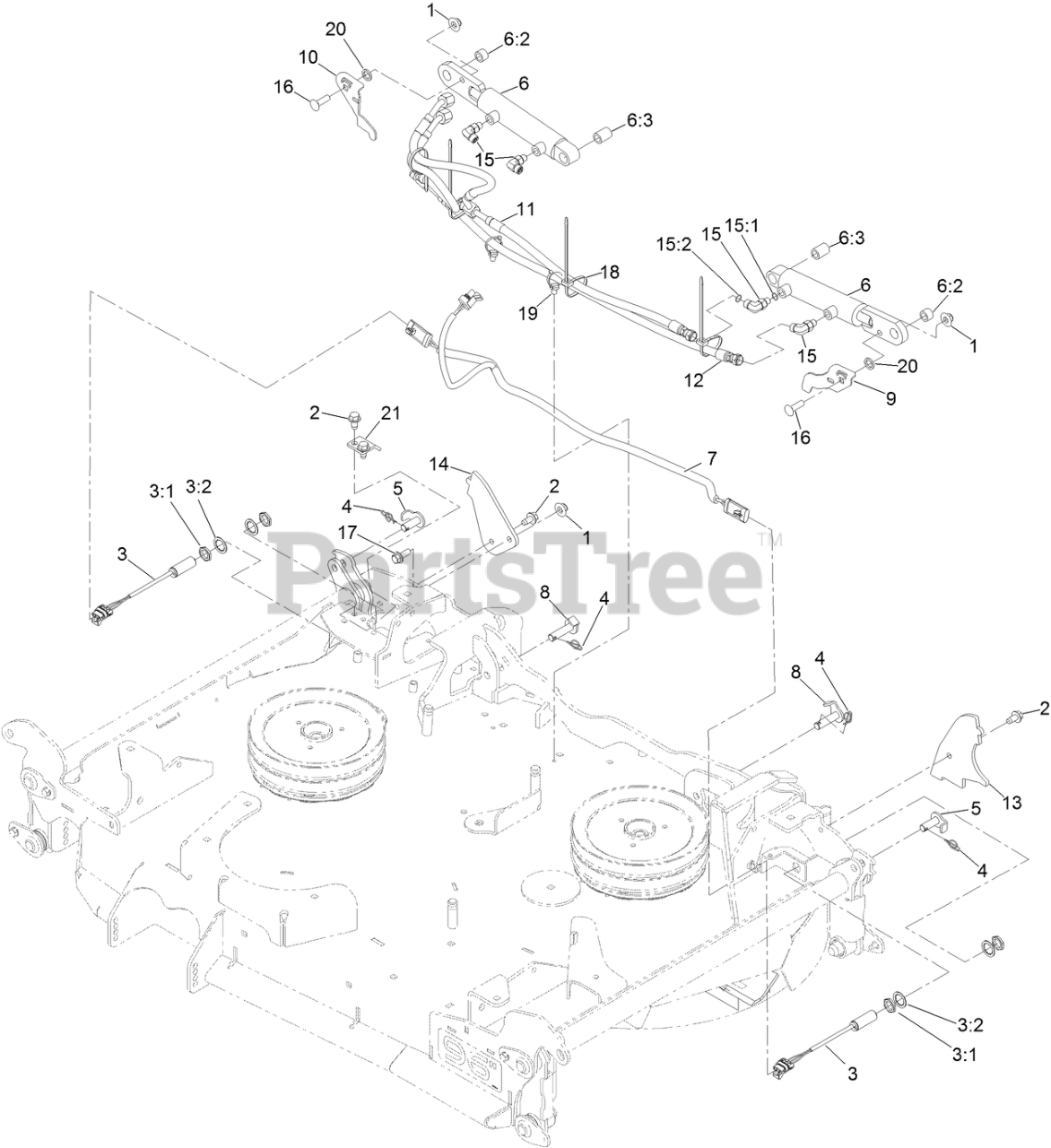

Center Deck Hose and Switch Assembly Parts Diagram

  • Title

1

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

3

Toro 115-5300

PROXIMITY SWITCH ASM

$166.99

$

In Stock, Qty 20+

0

3:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

3:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$12.99

$

In Stock, only 4 left!

0

4

Toro 126-8417

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 20+

0

5

Toro 126-8448

EYE-PIN, CYLINDER

$30.99

$

In Stock, only 2 left!

0

6

Toro 126-9000

DECK FOLD CYLINDER ASM

$699.99

$

In Stock, Qty 5

0

6:1:1

Toro 142-2768

KIT, CYL REPAIR

Note: Not illustrated

$136.99

$

Usually ships in 3-6 days

0

6:2

Toro 126-8439

BUSHING

$47.99

$

In Stock, only 2 left!

0

6:3

Toro 126-8440

BUSHING

$63.99

$

Usually ships in 3-6 days

0

7

Toro 126-9372

HARNESS-WIRE

$52.99

$

In Stock, only 2 left!

0

8

Toro 142-3762

PIN-CYLINDER

$30.99

$

In Stock, only 2 left!

0

9

Toro 135-5922

PLATE-PROXIMITY, LH

$61.99

$

In Stock, only 2 left!

0

10

Toro 135-5923

PLATE-PROXIMITY, RH

$61.99

$

In Stock, only 2 left!

0

11

Toro 135-1760

HOSE ASM

$166.99

$

In Stock, only 1 left!

0

12

Toro 135-1761

HOSE ASM

$166.99

$

Usually ships in 3-6 days

0

13

Toro 135-2628-01

BRACKET-DECK STOP, LH

$25.99

$

Usually ships in 3-6 days

0

14

Toro 135-2629-01

BRACKET-DECK STOP, RH

$25.99

$

Usually ships in 3-6 days

0

15

Toro 340-132

FITTING-ELBOW, 90 DEG

$30.99

$

In Stock, Qty 6

0

15:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

15:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

16

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

17

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

20

Toro 62-7120

WASHER

$1.99

$

Usually ships in 3-6 days

0

21

Toro 135-6586

BRACKET-GUARD, SWITCH (RH)

$14.99

$

Usually ships in 3-6 days

0
