72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 415000000 - 416263230) Gearbox and Mount Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

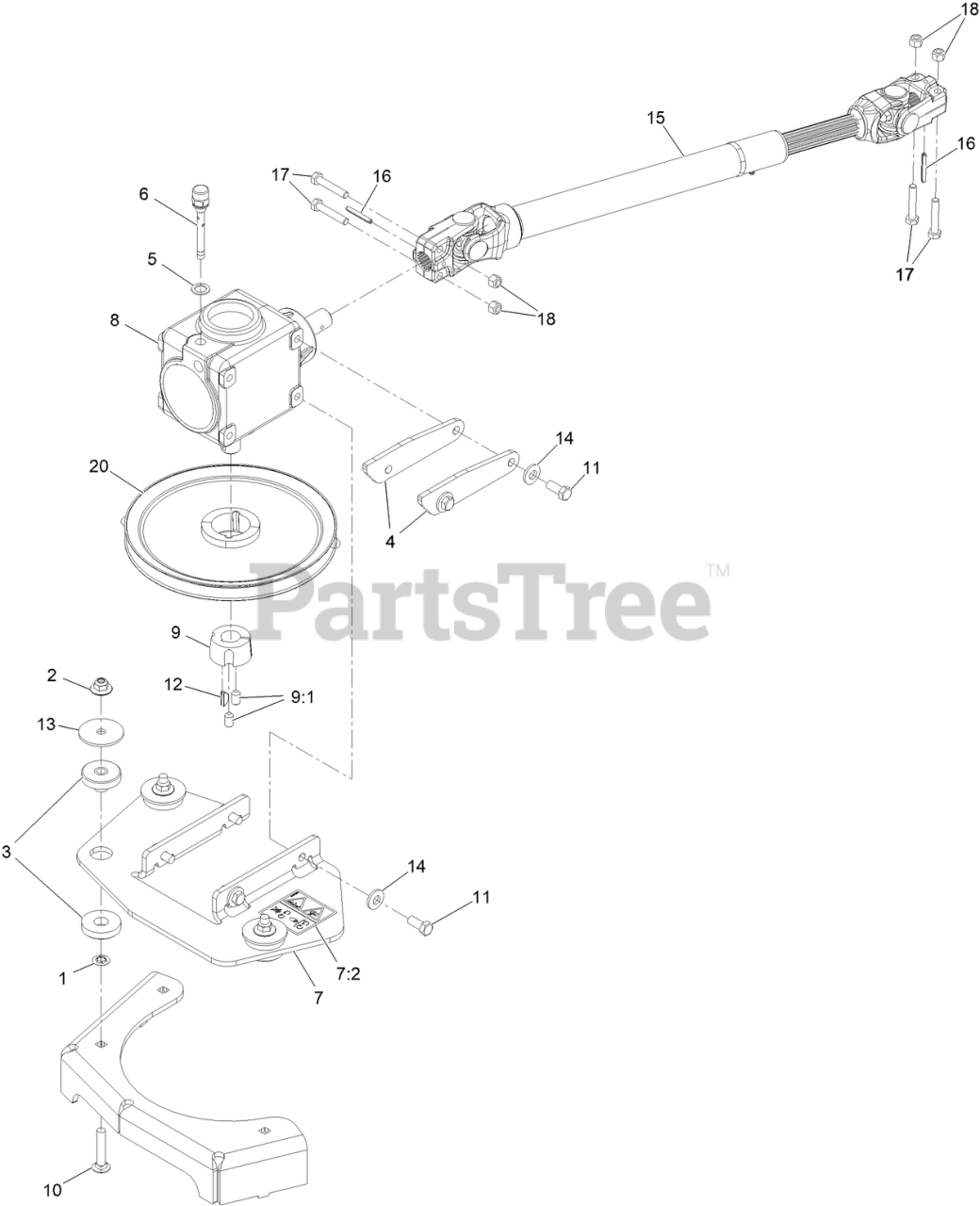

Gearbox and Mount Assembly Parts Diagram

  • Title

1

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 126-3074

MOUNT-ISO

$19.99

$

In Stock, only 3 left!

0

4

Toro 126-3544

STOP-GEARBOX

$12.99

$

Usually ships in 3-6 days

0

5

Toro 130-4899

WASHER

$3.49

$

In Stock, only 2 left!

0

6

Toro 130-8661

PLUG-BREATHER

$44.99

$

Usually ships in 3-6 days

0

7

Toro 135-0874

MOUNT-GEARBOX

$120.99

$

Usually ships in 3-6 days

0

7:2

Toro 135-0679

DECAL-HAZARD, ENTANGLEMENT

$7.99

$

Usually ships in 3-6 days

0

8

Toro 142-8061

GEARBOX ASM

$971.99

$

Usually ships in 3-6 days

0

9

Toro 23-1640

BUSHING-TAPERLOCK

$95.99

$

Usually ships in 3-6 days

0

9:1

Toro 3247-4

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

10

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 18

0

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 3257-5

KEY-WOODRUFF

$6.49

$

In Stock, Qty 19

0

13

Toro 83-1040

WASHER-FLAT

$4.49

$

In Stock, Qty 8

0

14

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

15

Toro 110-3575

DRIVESHAFT ASM

$1025.99

$

Usually ships in 3-6 days

0

16

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 11

0

17

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 126-2822

PULLEY

$144.99

$

Usually ships in 3-6 days

0
