72098 (7500-D) - Toro 96" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 417000000 - 999999999) Center Deck Fold Assembly Parts Diagram

96" Z Master Zero-Turn Mower, Rear-Discharge Deck

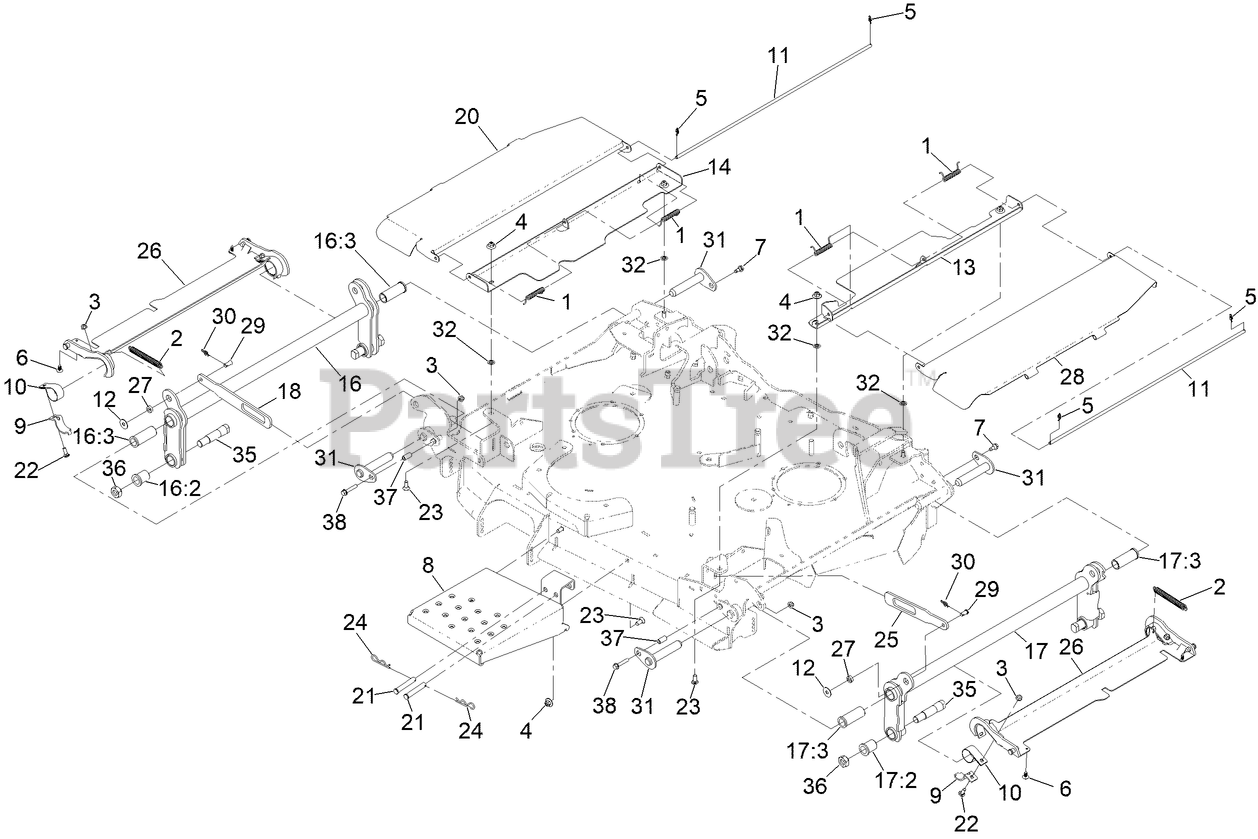

Center Deck Fold Assembly Parts Diagram

  • Title

1

Toro 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 14

0

2

Toro 103-4813

SPRING

$7.49

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 3 left!

0

6

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

7

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

8

Toro 146-0669-03

PLATE-DECK STEP

$144.99

$

Usually ships in 3-6 days

0

9

Toro 126-9764

PLATE-RETAINER, BEARING

$14.99

$

Usually ships in 3-6 days

0

10

Toro 135-0584

BEARING-STRAP, NYLON

$6.99

$

In Stock, Qty 5

0

11

Toro 135-1023

COVER-ROD, PIVOT

$42.99

$

Usually ships in 3-6 days

0

12

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

13

Toro 135-2651-01

SHIELD-CENTER, LH

$79.99

$

Usually ships in 3-6 days

0

14

Toro 135-2652-01

SHIELD-CENTER, RH

$65.99

$

Usually ships in 3-6 days

0

16

Toro 142-6419

ASM-RH FOLD ARM

$900.99

$

Usually ships in 3-6 days

0

16:2

Toro 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

16:3

Toro 142-8114

BUSHING-FLANGE

$

$

Not available

17

Toro 142-6428

ASM-LH FOLD ARM

$900.99

$

Usually ships in 3-6 days

0

17:2

Toro 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

17:3

Toro 142-8114

BUSHING-FLANGE

$

$

Not available

18

Toro 142-9434

STRAP-RH FLAG

$32.99

$

Usually ships in 3-6 days

0

20

Toro 135-6174-03

PANEL-SHIELD HINGE, RH

$108.99

$

Usually ships in 3-6 days

0

21

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

22

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

23

Toro 3231-12

BOLT-CARR

$6.99

$

In Stock, Qty 17

0

24

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

25

Toro 142-6467

STRAP-LH FLAG

$32.99

$

Usually ships in 3-6 days

0

26

Toro 142-6649-01

ASM-WING COVER, [RED]

$231.99

$

Usually ships in 3-6 days

0

27

Toro 142-6724

BUSHING

$13.99

$

Usually ships in 3-6 days

0

28

Toro 135-6178-03

PANEL-SHIELD HINGE, LH

$108.99

$

Usually ships in 3-6 days

0

29

Toro 283-85

PIN-CLEVIS

$22.99

$

Usually ships in 3-6 days

0

30

Toro 120-9716

PIN-COTTER

$

$

Currently unavailable

31

Toro 146-2595

ASM-DECK PIN

$42.99

$

Usually ships in 3-6 days

0

32

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

35

Toro 146-2893

BOLT-PIVOT PIN

$39.99

$

Usually ships in 3-6 days

0

36

Toro 146-3191

NUT-LUG

$16.99

$

Usually ships in 3-6 days

0

37

Toro 146-3744

TUBE-STANDOFF

$6.99

$

Usually ships in 3-6 days

0

38

Toro 94-5780

SCREW-HWH

$8.99

$

In Stock, Qty 8

0
