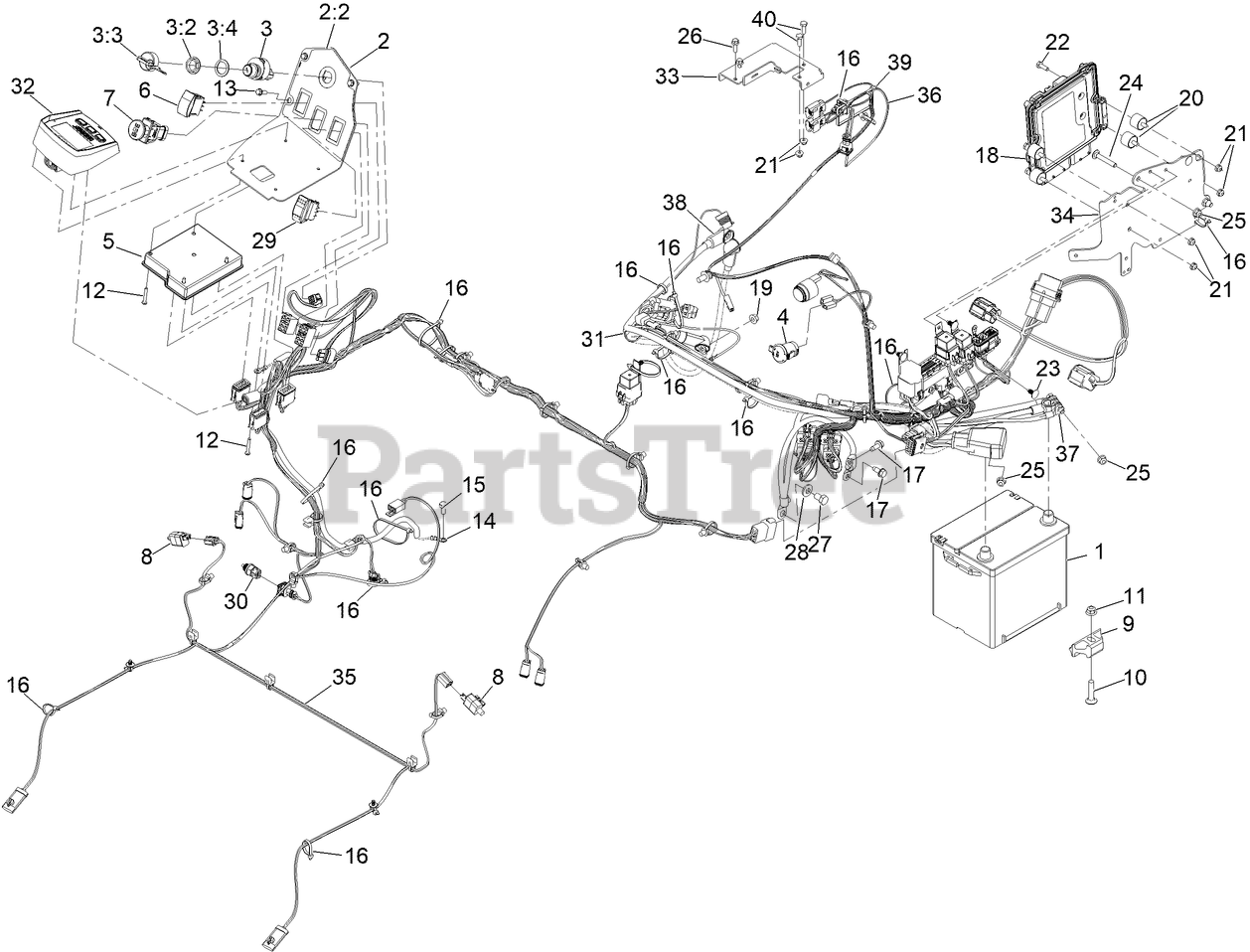

72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Electrical Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

Electrical Assembly Parts Diagram

  • Title

1

Toro 106-5187

BATTERY-DRY
(Superseded to 145-2823)

$254.99

$

Usually ships in 3-6 days

0

2

Toro 142-6613

ASM, CONSOLE W/ DECAL 144

$124.99

$

Usually ships in 3-6 days

0

2:2

Toro 142-3956

DECAL-CONTROL PANEL

$25.99

$

Usually ships in 3-6 days

0

3

Toro 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

3:2

Toro 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

3:3

Toro 106-5270

IGNITION KEY SET

$25.99

$

In Stock, only 1 left!

0

3:4

Toro 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

4

Toro 126-6499

PORT-POWER, 12V

$17.99

$

Usually ships in 3-6 days

0

5

Toro 135-3427

MODULE-MCU

$422.99

$

Usually ships in 3-6 days

0

6

Toro 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0

7

Toro 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

8

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

9

Toro 138-6335

RETAINER-BATTERY

$12.99

$

Usually ships in 3-6 days

0

10

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 126-5092

SCREW-PPH

$3.99

$

Usually ships in 3-6 days

0

13

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

14

Toro 135-3998

HARNESS-WIRE, JUMPER

$34.99

$

Usually ships in 3-6 days

0

15

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 121-5592

CONTROLLER-ENGINE

$3948.99

$

Usually ships in 3-6 days

0

19

Toro 127-2371

NUT-HF

$3.49

$

Usually ships in 3-6 days

0

20

Toro 125-2674

MOUNT-CYLINDRICAL

$7.49

$

Usually ships in 3-6 days

0

21

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

24

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

27

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

28

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

29

Toro 122-0249

SWITCH-ROCKER, ON-NONE-ON

$64.99

$

Usually ships in 3-6 days

0

30

Toro 126-7698

SENSOR-TEMPERATURE
(Superseded to 146-3819)

$84.99

$

In Stock, only 1 left!

0

31

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

32

Toro 126-9976

MODULE-HORIZON

$640.99

$

Usually ships in 3-6 days

0

33

Toro 142-7565

BRACKET-SENSOR, DPF

$

$

Currently unavailable

34

Toro 142-7685-03

PLATE-ECU MOUNT

$70.99

$

Usually ships in 3-6 days

0

35

Toro 122-2377

HARNESS-WIRE, MAIN

$926.99

$

Usually ships in 3-6 days

0

36

Toro 122-2378

HARNESS-WIRE, ENGINE

$1916.99

$

Usually ships in 3-6 days

0

37

Toro 122-2379

CABLE-BATTERY, RD AND BK ASM

$286.99

$

Usually ships in 3-6 days

0

38

Toro 122-2380

CABLE-BATTERY, BK ASM

$119.99

$

Usually ships in 3-6 days

0

39

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

40

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
