72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Engine Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

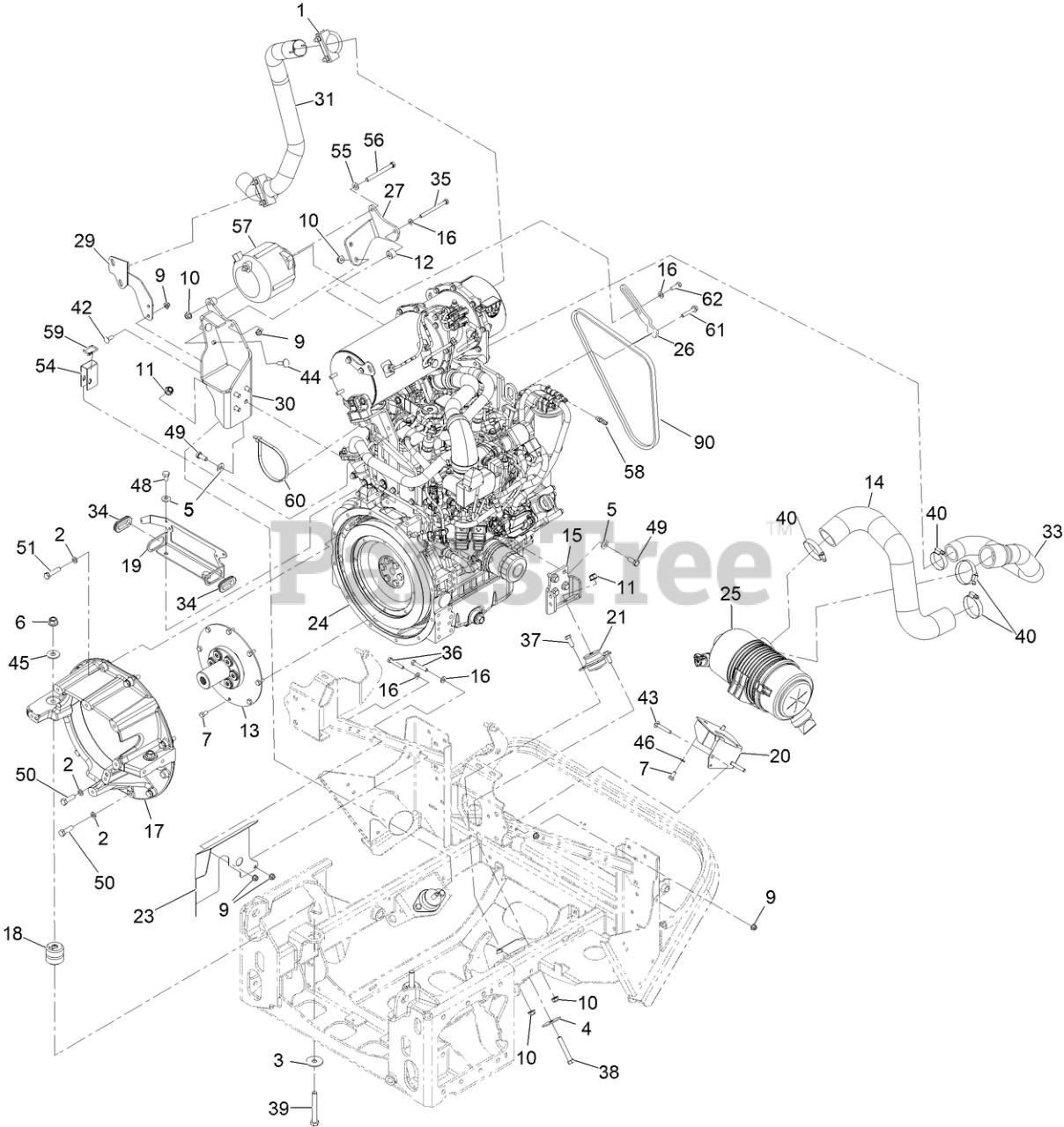

Engine Assembly Parts Diagram

  • Title

1

Toro 18-2130

CLAMP

$41.99

$

Usually ships in 3-6 days

0

2

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

3

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, only 2 left!

0

4

Toro 87-5100

WASHER-SNUBBING

$4.99

$

Usually ships in 3-6 days

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

7

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 114-8417

NUT-HF, NI

$2.99

$

In Stock, Qty 14

0

12

Toro 116-9329

SPACER

$12.99

$

In Stock, only 3 left!

0

13

Toro 120-9131

COUPLING-FLYWHEEL

$682.99

$

Usually ships in 3-6 days

0

14

Toro 120-9177

HOSE-AIR

$85.99

$

Usually ships in 3-6 days

0

15

Toro 120-9180-03

MOUNT-MOTOR, UPPER

$65.99

$

Usually ships in 3-6 days

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 125-2836

HOUSING-FLYWHEEL

$984.99

$

Usually ships in 3-6 days

0

18

Toro 142-8457

MOUNT-ISOLATOR

$63.99

$

Usually ships in 3-6 days

0

19

Toro 142-6061-03

PLATE_GUIDE BRACKET

$60.99

$

Usually ships in 3-6 days

0

20

Toro 126-8730-03

BRACKET-CLEANER, AIR

$49.99

$

Usually ships in 3-6 days

0

21

Toro 142-8456

MOUNT- ISOLATOR, ENGINE

$71.99

$

In Stock, only 2 left!

0

23

Toro 142-9188-03

SHEET-AIR DEFLECTOR

$39.99

$

Usually ships in 3-6 days

0

24

Toro 142-7566

ENGINE-YANMAR, 3TNV86CT-DTR2

$24537.99

$

Usually ships in 3-6 days

0

25

Toro 142-7201

ASM, HDAC

$239.99

$

Usually ships in 3-6 days

0

26

Toro 142-5783-03

TENSION ARM-ALTERNATOR

$24.99

$

Usually ships in 3-6 days

0

27

Toro 142-4117-03

BRACKET, ALTERNATOR

$32.99

$

Usually ships in 3-6 days

0

29

Toro 142-4151-03

EXHAUST BRACKET

$30.99

$

Usually ships in 3-6 days

0

30

Toro 142-4152-03

MOUNT ASM-UPPER [BLACK]

$214.99

$

Usually ships in 3-6 days

0

31

Toro 142-4158

TUBE-EXHAUST

$173.99

$

Usually ships in 3-6 days

0

33

Toro 142-5171

HOSE-AIR

$78.99

$

Usually ships in 3-6 days

0

34

Toro 240-7

GROMMET-RUBBER

$20.99

$

Usually ships in 3-6 days

0

35

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$5.49

$

In Stock, only 3 left!

0

36

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

37

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

38

Toro 324-11

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

39

Toro 325-15

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

40

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

42

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

43

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

44

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

45

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

46

Toro 3290-475

WASHER-BELLEVILLE

$3.49

$

Usually ships in 3-6 days

0

48

Toro 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

49

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

50

Toro 33115-035

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

51

Toro 33115-045

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

54

Toro 142-6642

INSULATION-HEAT

$120.99

$

Usually ships in 3-6 days

0

55

Toro 100-4852

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

56

Toro 116-9362

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

57

Toro 146-0514

ALTERNATOR-12V 175A
(Superseded to 146-2193)

$1456.99

$

Usually ships in 3-6 days

0

58

Toro 142-7698

FITTING-STRAIGHT

$24.99

$

Usually ships in 3-6 days

0

59

Toro 142-8170

TIE-CABLE, SS

$5.49

$

Usually ships in 3-6 days

0

60

Toro 103-2446

TIE-CABLE

$2.99

$

Usually ships in 3-6 days

0

61

Toro 33104-045

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

62

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 14

0

90

Toro 142-6650

BELT-V, COGGED

$75.99

$

In Stock, only 1 left!

0
