72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Engine Wire Harness No. 122-2378 Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

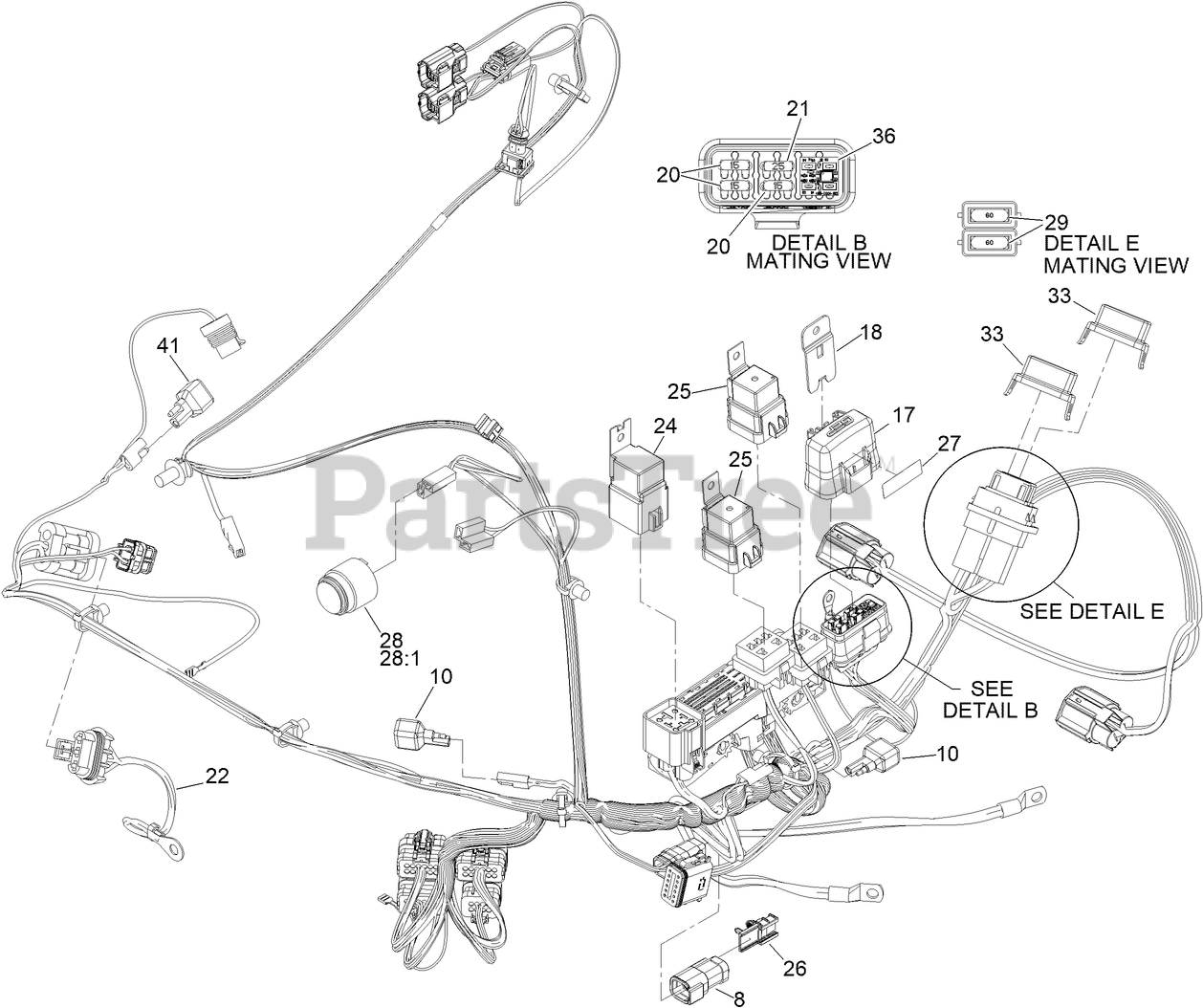

Engine Wire Harness No. 122-2378 Parts Diagram

  • Title

8

Toro 32160-359

CONNECTOR (6M)

$7.49

$

Usually ships in 3-6 days

0

10

Toro 100-4918

DIODE

$25.99

$

Usually ships in 3-6 days

0

17

Toro 32180-176

COVER-BLOCK, FUSE

$8.99

$

Usually ships in 3-6 days

0

18

Toro 32180-177

CLIP-MOUNTING

$5.49

$

In Stock, only 1 left!

0

20

Toro 121-8867

FUSE-MINI BLADE, 15 AMP

$1.49

$

Usually ships in 3-6 days

0

21

Toro 121-8869

FUSE-MINI BLADE, 25 AMP

$6.49

$

Usually ships in 3-6 days

0

22

Toro 99-3441

HARNESS-WIRE, FUSIBLE LINK

$177.99

$

Usually ships in 3-6 days

0

24

Toro 127-7514

RELAY-70A

$42.99

$

In Stock, only 2 left!

0

25

Toro 99-7430

RELAY-MINI

$27.99

$

In Stock, only 2 left!

0

26

Toro 32180-103

CLIP-CONNECTOR

$11.99

$

Usually ships in 3-6 days

0

27

Toro 142-6728

DECAL-FUSE

$

$

Currently unavailable

28

Toro 80-9330

AUDIO ALARM ASM

$161.99

$

Usually ships in 3-6 days

0

28:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

29

Toro 114-3342

FUSE-MAXI, 60 AMP

$10.99

$

Usually ships in 3-6 days

0

33

Toro 32181-014

COVER-FUSE HOLDER, MAXI

$28.99

$

Usually ships in 3-6 days

0

36

Toro 142-3979

RELAY-SOLID STATE, MP280, ASSEMBLY

$247.99

$

Usually ships in 3-6 days

0

41

Toro 142-3904

RESISTOR-220 OHMS,2W,5%,OVERMOLDED

$36.99

$

Usually ships in 3-6 days

0
