72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Fuel Injection Valve Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

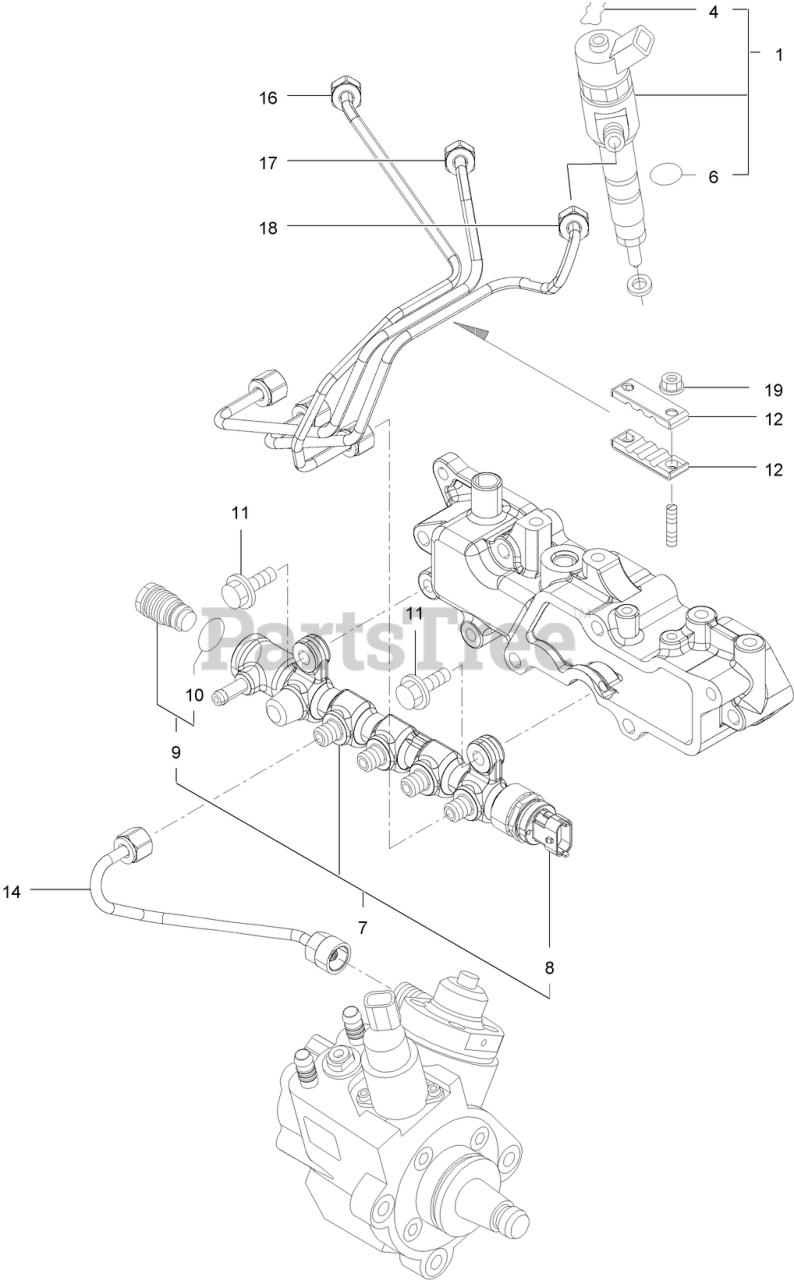

Fuel Injection Valve Assembly Parts Diagram

  • Title

1

Toro 127-3104

INJECTOR ASM

$3439.99

$

Usually ships in 3-6 days

0

4

Toro 138-7843

RING, RETAINING

$40.99

$

Usually ships in 3-6 days

0

6

Toro 137-5173

O-RING

$23.99

$

Usually ships in 3-6 days

0

7

Toro 127-3812

RAIL ASM

$4056.99

$

Usually ships in 3-6 days

0

8

Toro 131-2709

SENSOR-PRESSURE, RAIL

$460.99

$

Usually ships in 3-6 days

0

9

Toro 131-2710

VALVE ASM

$384.99

$

Usually ships in 3-6 days

0

10

Toro 138-7844

O-RING, PLV4

$11.99

$

Usually ships in 3-6 days

0

11

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

12

Toro 127-3813

RETAINER

$22.99

$

Usually ships in 3-6 days

0

14

Toro 127-3082

RAIL IN PIPE ASM

$85.99

$

Usually ships in 3-6 days

0

16

Toro 127-3814

INJECTION PIPE ASM

$117.99

$

Usually ships in 3-6 days

0

17

Toro 127-3083

INJECTION PIPE ASM

$117.99

$

Usually ships in 3-6 days

0

18

Toro 127-3084

INJECTION PIPE ASM

$117.99

$

Usually ships in 3-6 days

0

19

Toro 125-7231

NUT

$4.49

$

Usually ships in 3-6 days

0
