72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Fuel Line Assembly Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

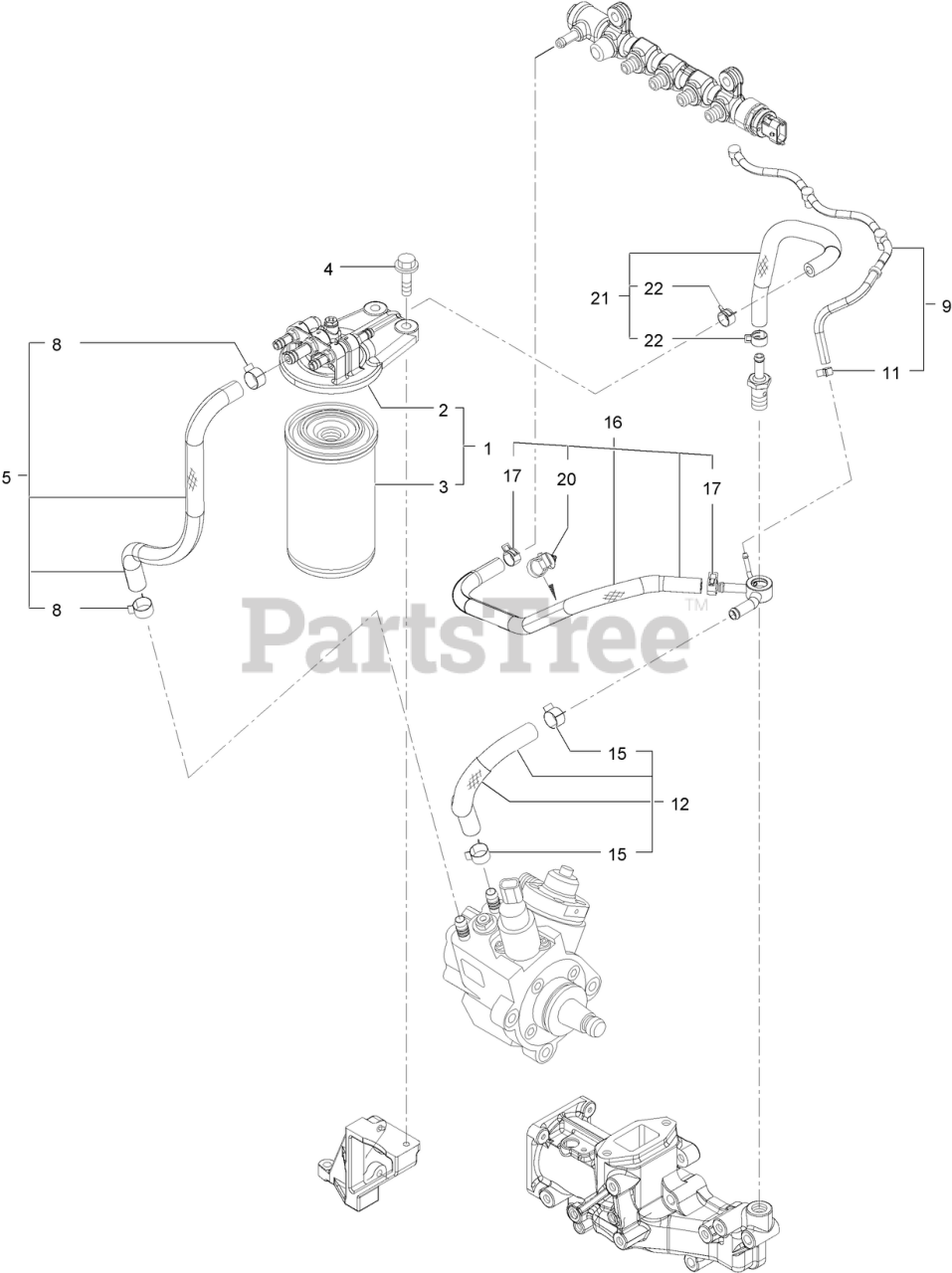

Fuel Line Assembly Parts Diagram

  • Title

1

Toro 139-6016

FUEL/OIL FILTER ASM

$179.99

$

Usually ships in 3-6 days

0

2

Toro 127-3076

FUEL/OIL FILTER BRACKET ASM

$135.99

$

Usually ships in 3-6 days

0

3

Toro 139-6017

FILTER-FUEL

$73.99

$

In Stock, Qty 5

0

4

Toro 125-7216

BOLT

$4.49

$

Usually ships in 3-6 days

0

5

Toro 127-3077

FUEL PIPE ASM

$114.99

$

Usually ships in 3-6 days

0

8

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

9

Toro 135-4023

PIPE ASM-FO RETURN

$422.99

$

Usually ships in 3-6 days

0

11

Toro 127-3172

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

12

Toro 127-3078

FUEL PIPE ASM

$146.99

$

Usually ships in 3-6 days

0

15

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

16

Toro 127-3817

FUEL PIPE ASM

$186.99

$

Usually ships in 3-6 days

0

17

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

20

Toro 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

21

Toro 127-3079

FUEL PIPE ASM

$106.99

$

Usually ships in 3-6 days

0

22

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0
