72144 (7500-D) - Toro 144" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 413000000 - 414759689) Lift and Fold Valve Assembly No. 142-8862 Parts Diagram

144" Z Master Zero-Turn Mower, Rear-Discharge Deck

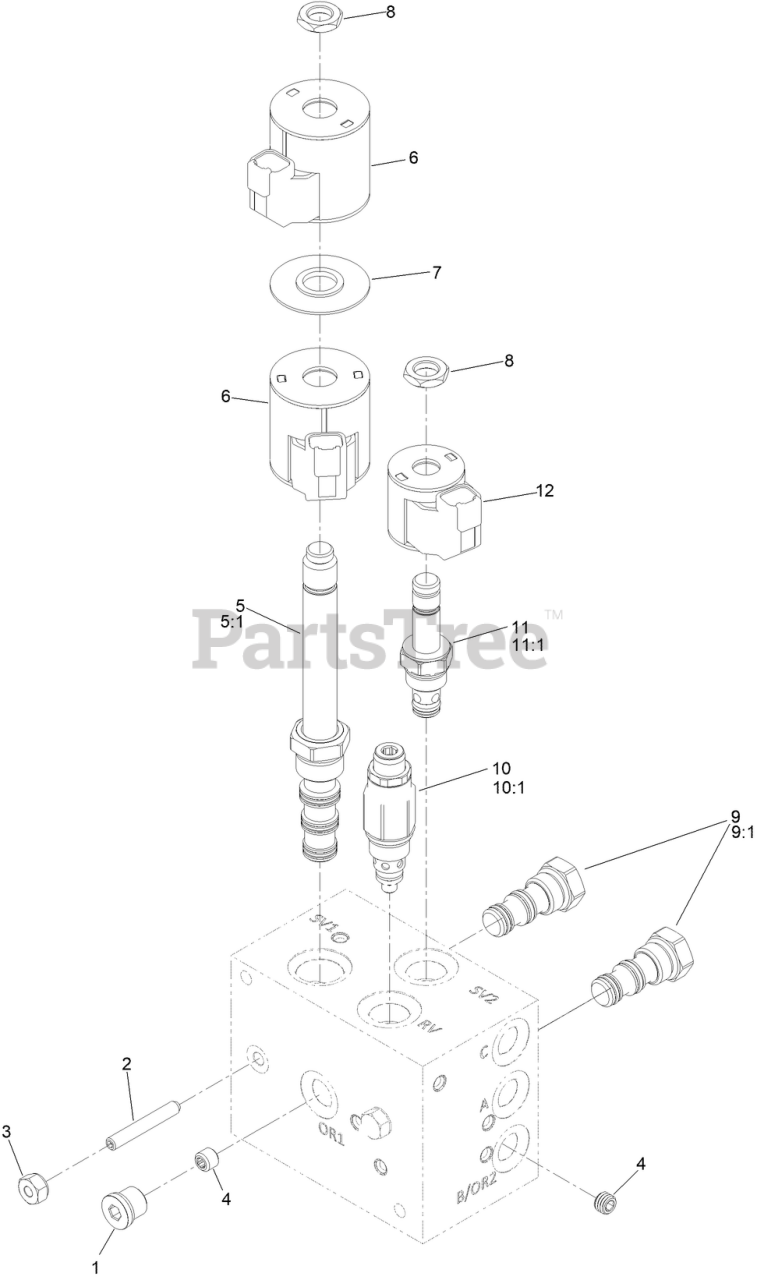

Lift and Fold Valve Assembly No. 142-8862 Parts Diagram

  • Title

1

Toro 111-5512

PLUG-HYD, SAE

$6.49

$

Usually ships in 3-6 days

0

2

Toro 135-4544

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

3

Toro 135-4545

NUT-SEALING, HEX

$23.99

$

Usually ships in 3-6 days

0

4

Toro 142-8912

PLUG-ORIFICE

$27.99

$

Usually ships in 3-6 days

0

5

Toro 135-4546

SOLENOID VALVE ASM

$347.99

$

Usually ships in 3-6 days

0

5:1

Toro 110-8908

SPOOL VALVE SEAL KIT

$40.99

$

Usually ships in 3-6 days

0

6

Toro 115-3021

COIL-12V

$142.99

$

Usually ships in 3-6 days

0

7

Toro 117-8316

SPACER-E COIL

$34.99

$

Usually ships in 3-6 days

0

8

Toro 110-2634

NUT-COIL

$7.99

$

Usually ships in 3-6 days

0

9

Toro 142-4923

PO CHECK VALVE

$258.99

$

Usually ships in 3-6 days

0

9:1

Toro 142-7526

SEAL KIT

$32.99

$

Usually ships in 3-6 days

0

10

Toro 142-8872

VALVE-HYD, PRESSURE RELIEF

$182.99

$

Usually ships in 3-6 days

0

10:1

Toro 142-8965

SEAL KIT

$20.99

$

Usually ships in 3-6 days

0

11

Toro 142-8873

VALVE-HYD, SOLENOID, NC

$211.99

$

Usually ships in 3-6 days

0

11:1

Toro 119-7716

SEAL KIT

$43.99

$

Usually ships in 3-6 days

0

12

Toro 119-8036

COIL

$109.99

$

Usually ships in 3-6 days

0
