72265 TE (7000) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 407400000 - 408958435) Cooling System Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

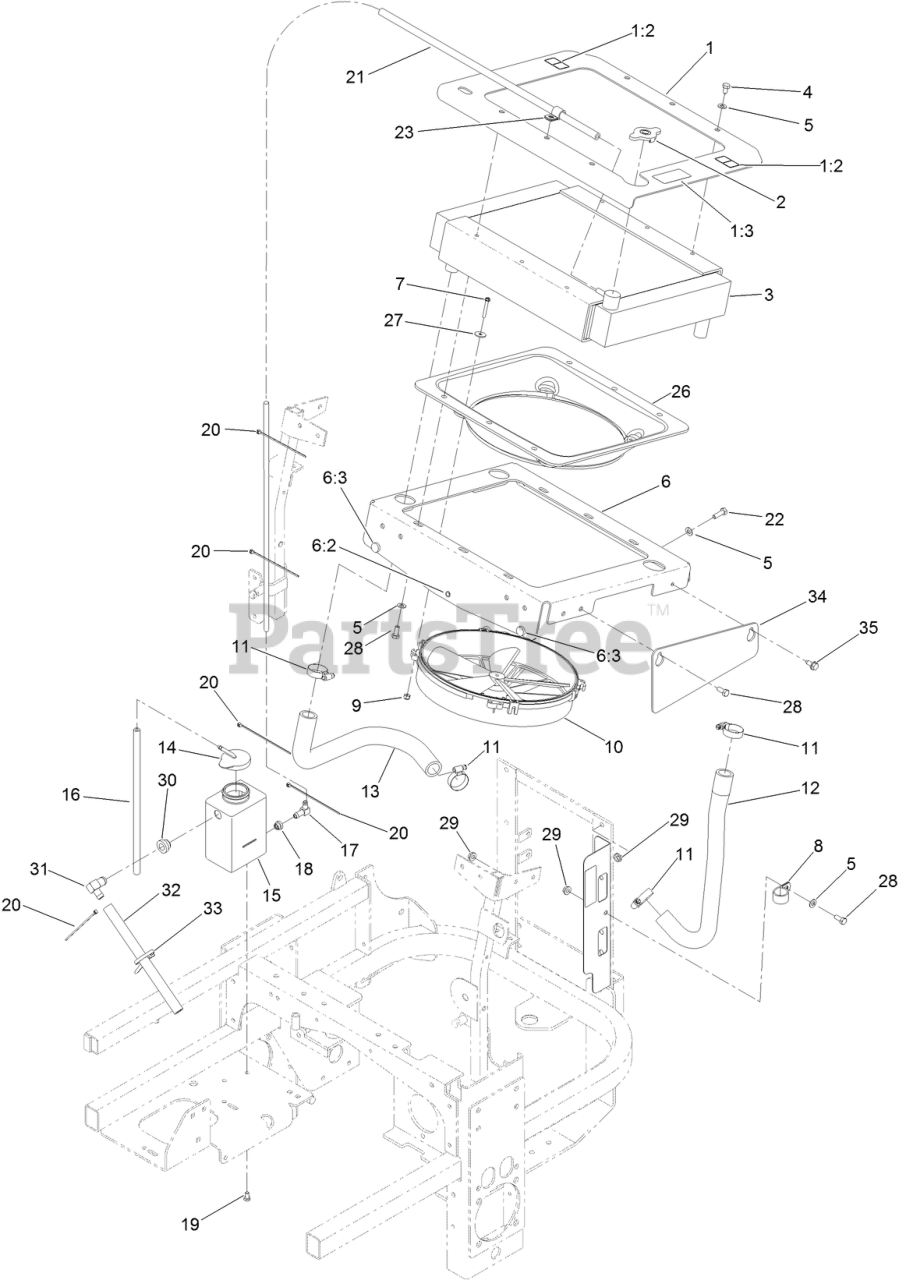

Cooling System Assembly Parts Diagram

  • Title

1

Toro 110-3845

TOP RADIATOR PLATE ASM

$212.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-8069

DECAL-SURFACE, HOT

$13.99

$

Usually ships in 3-6 days

0

1:3

Toro 110-3842

DECAL-ANTIFREEZE

$10.99

$

Usually ships in 3-6 days

0

2

Toro 1-643161

CAP-RADIATOR

$93.99

$

In Stock, only 2 left!

0

3

Toro 107-9932

RADIATOR

$1763.99

$

Usually ships in 3-6 days

0

4

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 131-8748

BOTTOM RADIATOR PLATE ASM

$228.99

$

Usually ships in 3-6 days

0

6:2

Toro 32148-6

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

6:3

Toro 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

7

Toro 108-5988

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

8

Toro 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

9

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-633831

FAN

$691.99

$

Usually ships in 3-6 days

0

11

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

12

Toro 108-5372

HOSE-RADIATOR, LH

$98.99

$

Usually ships in 3-6 days

0

13

Toro 108-5904

HOSE-OUTLET, ENGINE

$118.99

$

Usually ships in 3-6 days

0

14

Toro 1-643164

CAP-TANK, OVERFLOW

$22.99

$

In Stock, only 2 left!

0

15

Toro 117-0941

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

16

Toro 1-603954

HOSE-LINE, FUEL

$10.99

$

Usually ships in 3-6 days

0

17

Toro 46-6550

FITTING-ELBOW, 90 DEG

$45.99

$

Usually ships in 3-6 days

0

18

Toro 1-513645

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

19

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 103-1428

HOSE-OVERFLOW

$31.99

$

Usually ships in 3-6 days

0

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-603727

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

26

Toro 108-5971

SHROUD-COOLING, ENGINE

$224.99

$

Usually ships in 3-6 days

0

27

Toro 3256-67

WASHER

$0.99

$

In Stock, only 4 left!

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 104-0790

See Supercession: 136-8531
(Superseded to 136-8531)

$4.49

$

Usually ships in 3-6 days

0

31

Toro 117-0943

FITTING-ELBOW

$27.99

$

Usually ships in 3-6 days

0

32

Toro 115-4969

HOSE-OVERFLOW

$11.99

$

Usually ships in 3-6 days

0

33

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

34

Toro 131-8678-03

SHIELD-RADIATOR

$13.99

$

Usually ships in 3-6 days

0

35

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
