72267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 410000000 - 999999999) Engine, Exhaust and Air Intake Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

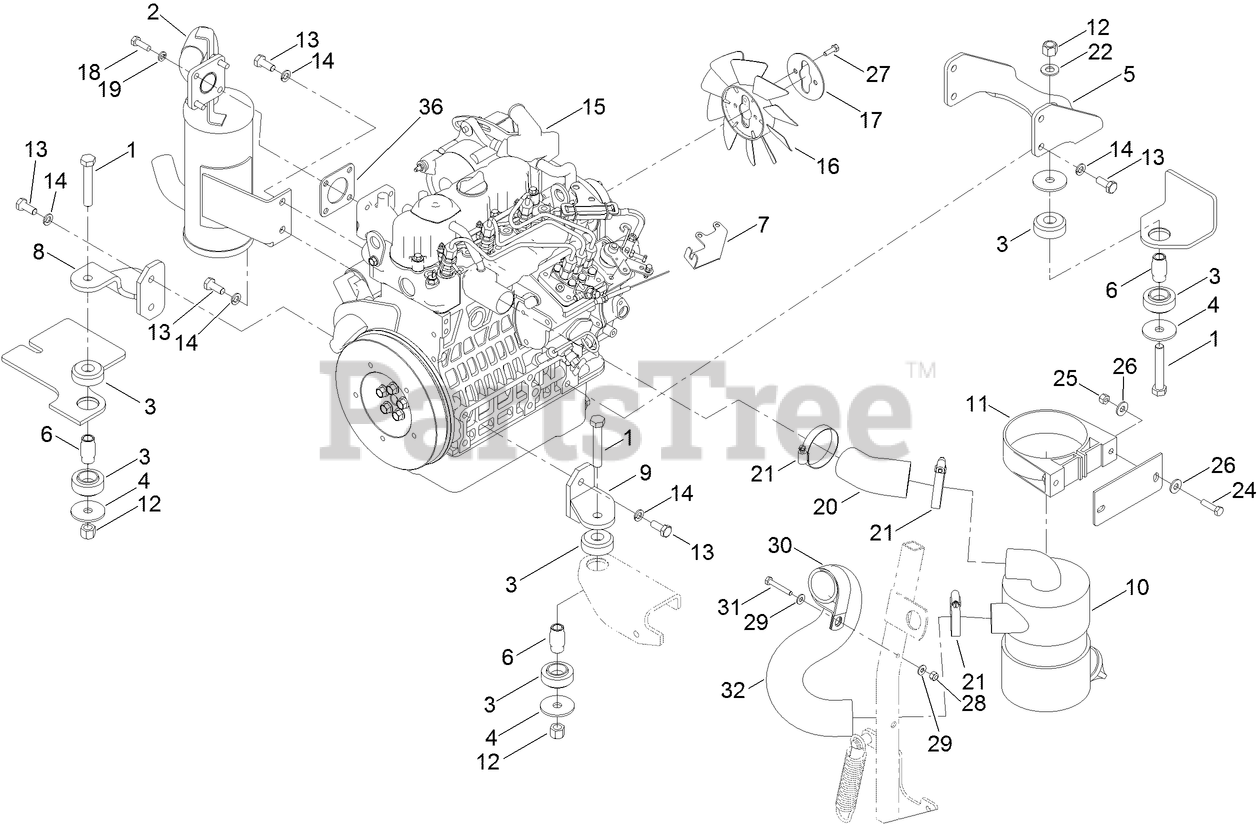

Engine, Exhaust and Air Intake Assembly Parts Diagram

  • Title

1

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

2

Toro 107-9909

MUFFLER

$712.99

$

Usually ships in 3-6 days

0

3

Toro 107-9914

MOUNT-ISOLATION ASM

$80.99

$

In Stock, Qty 11

0

4

Toro 55-7960

WASHER-LARGE

$2.99

$

Usually ships in 3-6 days

0

5

Toro 107-9917-03

BRACKET-ENGINE MOUNT, REAR

$103.99

$

Usually ships in 3-6 days

0

6

Toro 110-0300

SPACER

$34.99

$

In Stock, Qty 10

0

7

Toro 112-2383

BRACKET-THROTTLE

$22.99

$

Usually ships in 3-6 days

0

8

Toro 107-9920-03

SUPPORT-ENGINE, RH

$88.99

$

Usually ships in 3-6 days

0

9

Toro 107-9930-03

SUPPORT-ENGINE, LH

$88.99

$

Usually ships in 3-6 days

0

10

Toro 93-2190

AIR CLEANER ASM

$280.99

$

Usually ships in 3-6 days

0

11

Toro 95-5806

BRACKET-MOUNTING

$32.99

$

Usually ships in 3-6 days

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 43-0090

SCREW-HH

$10.99

$

In Stock, only 2 left!

0

14

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

15

Toro 127-9654

ENGINE-KUBOTA, D902-E4B-TOR-3
(Superseded to 138-6913)

$11190.99

$

Usually ships in 3-6 days

0

16

Toro 110-0814

FAN

$63.99

$

Usually ships in 3-6 days

0

17

Toro 110-0816

PLATE-REATAINER, FAN

$29.99

$

Usually ships in 3-6 days

0

18

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 14

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 108-5371

HOSE-INTAKE, AIR CLEANER

$71.99

$

Usually ships in 3-6 days

0

21

Toro 1-643009

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 1-643241

CLIP-LOOM

$19.99

$

Usually ships in 3-6 days

0

31

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 108-5370

HOSE-INTAKE, ENGINE

$94.99

$

Usually ships in 3-6 days

0

36

Toro 99-8343

GASKET-MUFFLER

$17.99

$

In Stock, only 2 left!

0
