72267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 410000000 - 999999999) Fuel System and Throttle Control Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

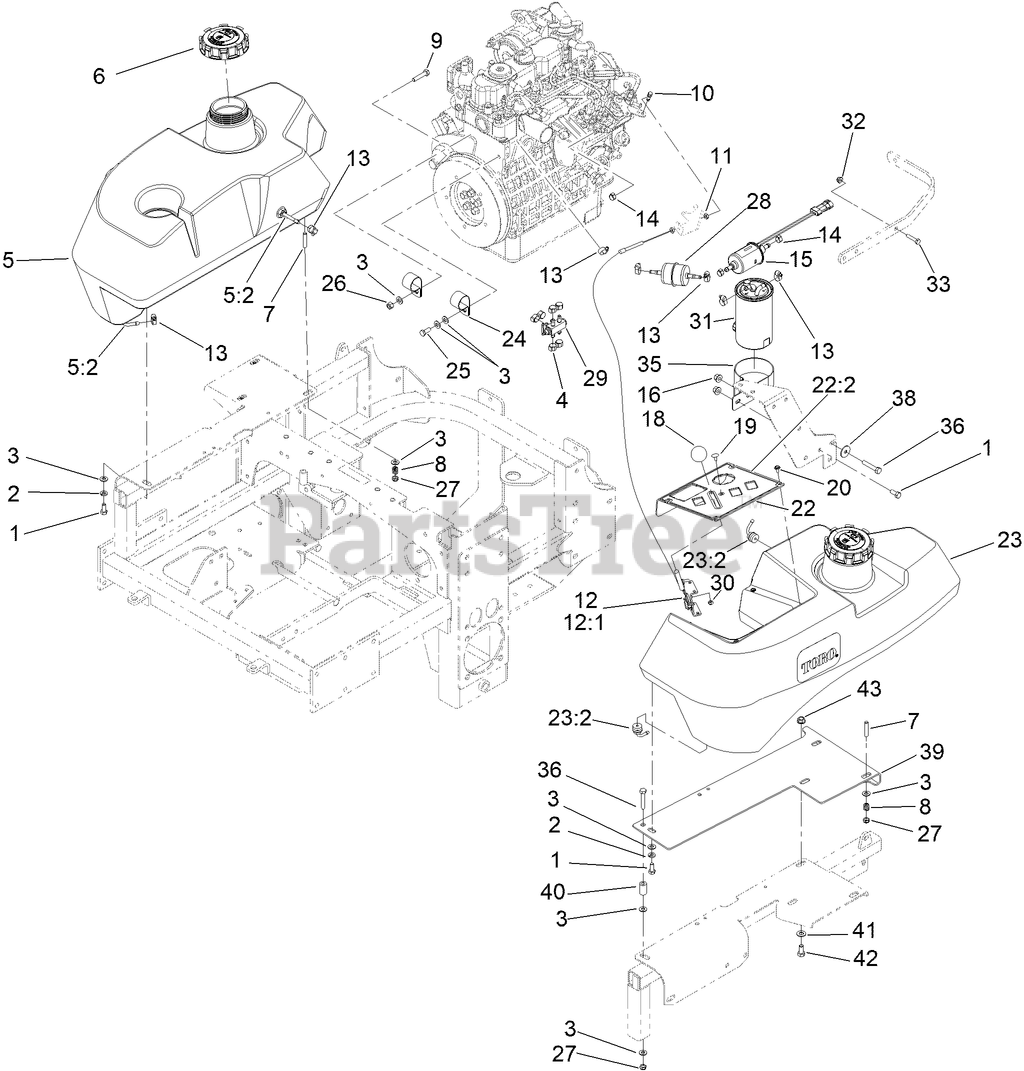

Fuel System and Throttle Control Assembly Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-643293

CLAMP-HOSE, FUEL

$6.99

$

Usually ships in 3-6 days

0

5

Toro 114-8221

RH FUEL TANK ASM

$795.99

$

Usually ships in 3-6 days

0

5:2

Toro 103-2615

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

6

Toro 114-8214

BIODIESEL CAP ASM

$99.99

$

Usually ships in 3-6 days

0

7

Toro 1-633023

STUD

$6.99

$

In Stock, Qty 12

0

8

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 17

0

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 108-5928

SWIVEL-STOP, CABLE

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

12

Toro 117-3850

THROTTLE CONTROL ASM

$121.99

$

Usually ships in 3-6 days

0

12:1

Toro 112-2334

LEVER-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

15

Toro 145-3154

PUMP-FUEL, ELECTRIC

$89.99

$

Usually ships in 3-6 days

0

16

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

20

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 13

0

22

Toro 117-0913

CONTROL PANEL ASM

$227.99

$

Usually ships in 3-6 days

0

22:2

Toro 121-7562

DECAL-PANEL, CONTROL

$53.99

$

Usually ships in 3-6 days

0

23

Toro 114-8222

LH FUEL TANK ASM

$795.99

$

Usually ships in 3-6 days

0

23:2

Toro 103-2615

FITTING-FUEL, BULKHEAD

$45.99

$

Usually ships in 3-6 days

0

24

Toro 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

25

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

26

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

28

Toro 112-7836

FILTER-INLINE

$15.99

$

In Stock, Qty 15

0

29

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$224.99

$

In Stock, only 3 left!

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 112-9188

ELEMENT-FILTER, FUEL/WATER

$72.99

$

In Stock, Qty 20+

0

32

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 110-8807

BRACKET-FILTER, FUEL

$108.99

$

Usually ships in 3-6 days

0

36

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

38

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

39

Toro 114-1545-03

BRACKET-FUEL TANK, LH

$119.99

$

Usually ships in 3-6 days

0

40

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

41

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

43

Toro 3290-357
