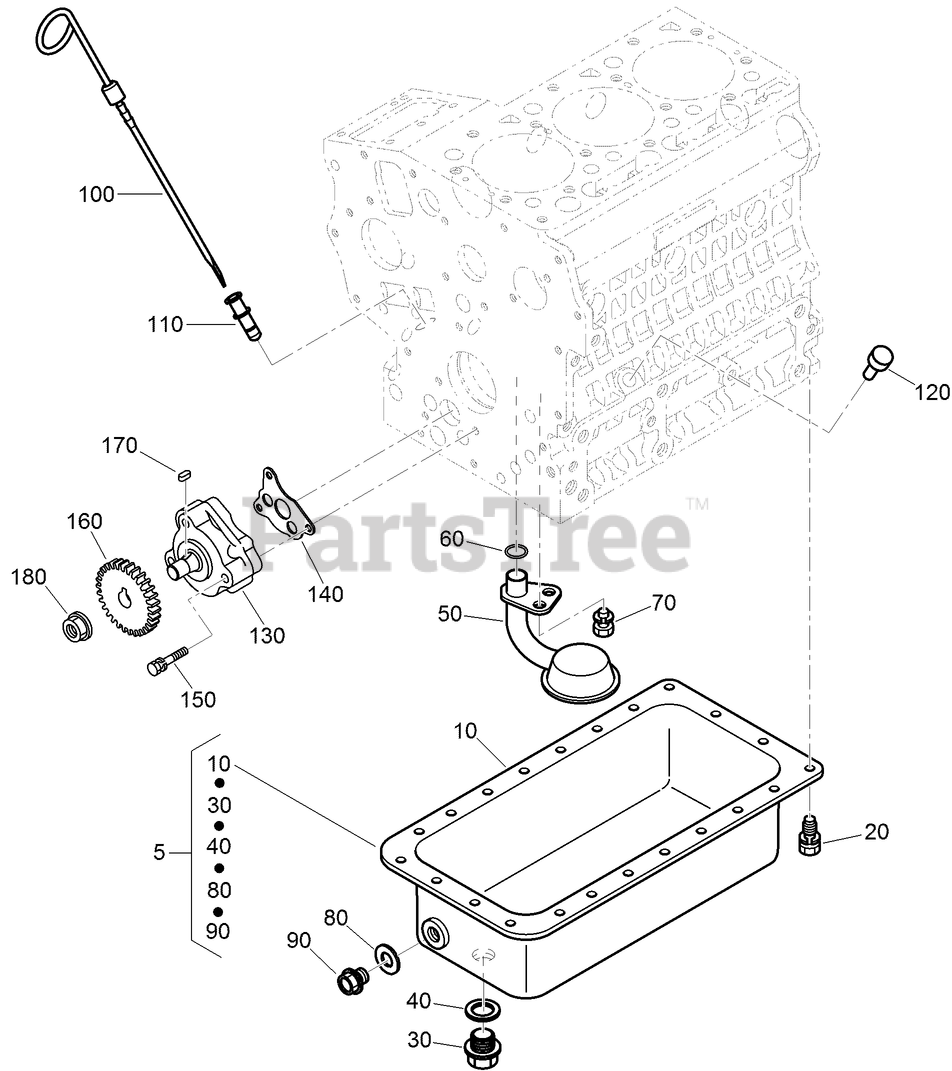

72267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 410000000 - 999999999) Oil Pan, Oil Pump and Dipstick Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Oil Pan, Oil Pump and Dipstick Assembly Parts Diagram

  • Title

5

Toro 112-8327

OIL PAN KIT

$536.99

$

Usually ships in 3-6 days

0

10

Toro 112-2523

PAN-OIL

$402.99

$

Usually ships in 3-6 days

0

20

Toro 98-9350

BOLT

$1.49

$

Usually ships in 3-6 days

0

30

Toro 114-8151

PLUG-DRAIN

$12.99

$

In Stock, only 2 left!

0

40

Toro 110-9715

GASKET-PAN, OIL

$6.99

$

Usually ships in 3-6 days

0

50

Toro 100-2001

STRAINER-PICKUP, OIL

$16.99

$

Usually ships in 3-6 days

0

60

Toro 105-3776

O-RING

$8.99

$

Usually ships in 3-6 days

0

70

Toro 100-9195

BOLT

$1.49

$

Usually ships in 3-6 days

0

80

Toro 98-7524

GASKET

$7.99

$

Usually ships in 3-6 days

0

90

Toro 98-9686

PLUG-DRAIN

$21.99

$

Usually ships in 3-6 days

0

100

Toro 110-3719

GAUGE-OIL

$55.99

$

Usually ships in 3-6 days

0

110

Toro 105-4580

GUIDE-GAUGE, OIL

$66.99

$

Usually ships in 3-6 days

0

120

Toro 110-3720

PLUG-GAUGE, OIL

$29.99

$

Usually ships in 3-6 days

0

130

Toro 100-2002

OIL PUMP ASM

$266.99

$

Usually ships in 3-6 days

0

140

Toro 100-2003

GASKET-PUMP, OIL

$7.49

$

Usually ships in 3-6 days

0

150

Toro 100-1923

BOLT

$14.99

$

Usually ships in 3-6 days

0

160

Toro 130-1419

GEAR-DRIVE, OIL PUMP

$36.99

$

Usually ships in 3-6 days

0

170

Toro 98-7658

KEY-FEATHER

$1.49

$

Usually ships in 3-6 days

0

180

Toro 100-1779

NUT-FLANGE

$11.99

$

Usually ships in 3-6 days

0
