72267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 410000000 - 999999999) Tandem Pump Assembly No. 107-9885 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

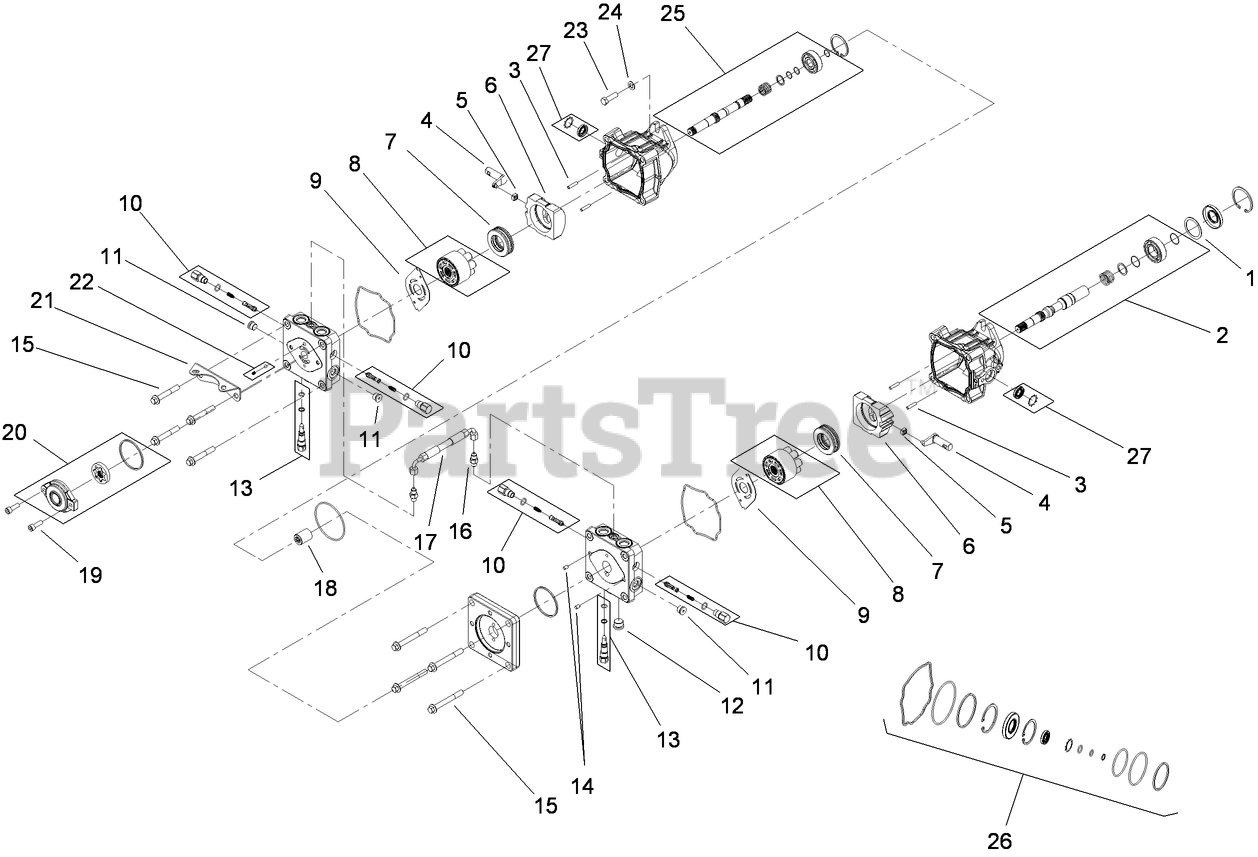

Tandem Pump Assembly No. 107-9885 Parts Diagram

  • Title

1

Toro 112-4168

SPACER

$5.49

$

Usually ships in 3-6 days

0

2

Toro 112-4151

INPUT PUMP SHAFT KIT

$1108.99

$

Usually ships in 3-6 days

0

3

Toro 106-8753

PIN-HEADLESS, STRAIGHT

$36.99

$

Usually ships in 3-6 days

0

4

Toro 112-4152

ARM-TRUNNION

$259.99

$

Usually ships in 3-6 days

0

5

Toro 94-1910

GUIDE-SLOT

$23.99

$

Usually ships in 3-6 days

0

6

Toro 112-4153

SWASHPLATE

$385.99

$

Usually ships in 3-6 days

0

7

Toro 112-4154

BEARING-THRUST

$117.99

$

Usually ships in 3-6 days

0

8

Toro 108-2112

See Supercession: 120-1092
(Superseded to 120-1092)

$256.99

$

Usually ships in 3-6 days

0

9

Toro 108-6801

PLATE-VALVE

$126.99

$

Usually ships in 3-6 days

0

10

Toro 112-4155

SHOCK VALVE KIT

$195.99

$

Usually ships in 3-6 days

0

11

Toro 104-2189

PLUG-THREAD, STRAIGHT

$29.99

$

In Stock, only 2 left!

0

12

Toro 112-4156

PLUG-STEEL

$28.99

$

Usually ships in 3-6 days

0

13

Toro 106-8759

BYPASS VALVE KIT

$117.99

$

Usually ships in 3-6 days

0

14

Toro 104-2170

PIN

$9.49

$

Usually ships in 3-6 days

0

15

Toro 112-4157

BOLT

$17.99

$

Usually ships in 3-6 days

0

16

Toro 117-7842

FITTING-STRAIGHT

$74.99

$

Usually ships in 3-6 days

0

17

Toro 117-7843

HOSE ASM

$232.99

$

Usually ships in 3-6 days

0

18

Toro 112-4160

COUPLING

$248.99

$

Usually ships in 3-6 days

0

19

Toro 112-4161

BOLT

$6.49

$

Usually ships in 3-6 days

0

20

Toro 112-4162

CHARGE PUMP KIT

$605.99

$

Usually ships in 3-6 days

0

21

Toro 112-4163

BRACKET-SUPPORT, PUMP

$126.99

$

Usually ships in 3-6 days

0

22

Toro 112-4164

CHARGE RELIEF KIT

$20.99

$

Usually ships in 3-6 days

0

23

Toro 112-4165

BOLT-HSH

$10.99

$

Usually ships in 3-6 days

0

24

Toro 112-4166

WASHER

$5.49

$

Usually ships in 3-6 days

0

25

Toro 112-4167

SECOND PUMP SHAFT KIT

$699.99

$

Usually ships in 3-6 days

0

26

Toro 112-4150

OVERHAUL SEAL KIT

$187.99

$

Usually ships in 3-6 days

0

27

Toro 114-8155

TRUNNION SEAL KIT

$20.99

$

Usually ships in 3-6 days

0
