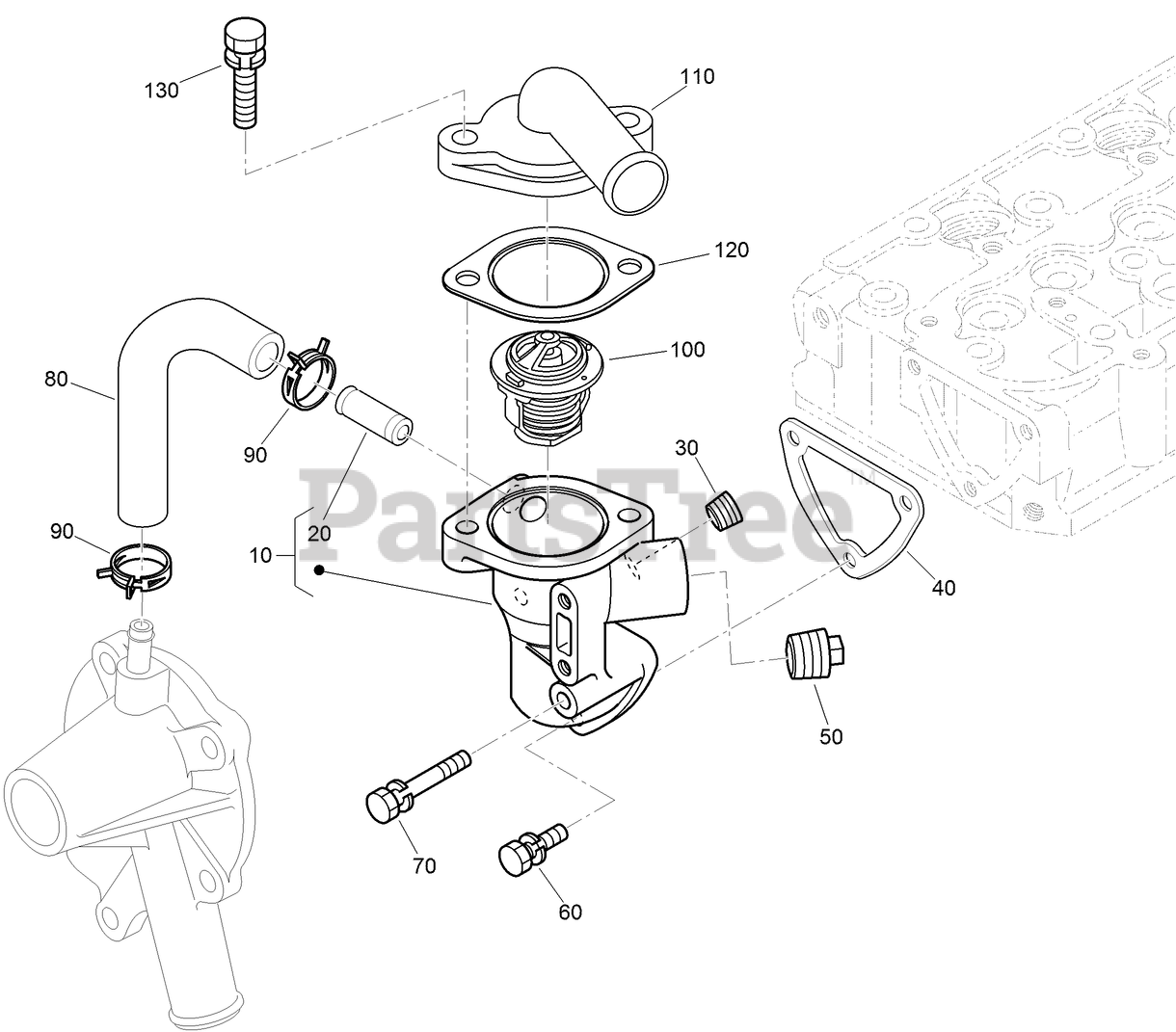

72267 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 410000000 - 999999999) Water Flange and Thermostat Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Water Flange and Thermostat Assembly Parts Diagram

  • Title

10

Toro 110-3819

WATER FLANGE ASM

$281.99

$

Usually ships in 3-6 days

0

20

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 98-9444

PLUG

$6.99

$

Usually ships in 3-6 days

0

40

Toro 110-3820

GASKET-FLANGE, WATER

$4.49

$

Usually ships in 3-6 days

0

50

Toro 110-3821

PLUG

$14.99

$

Usually ships in 3-6 days

0

60

Toro 98-7692

BOLT

$1.49

$

In Stock, Qty 5

0

70

Toro 125-9063

BOLT-SEMS

$1.99

$

Usually ships in 3-6 days

0

80

Toro 110-3822

PIPE-RETURN, WATER

$42.99

$

In Stock, only 2 left!

0

90

Toro 125-9078

CLAMP-HOSE

$6.49

$

Usually ships in 3-6 days

0

100

Toro 98-7778

THERMOSTAT ASM

$93.99

$

In Stock, only 2 left!

0

110

Toro 110-3823

COVER-THERMOSTAT

$116.99

$

Usually ships in 3-6 days

0

120

Toro 105-3748

GASKET-THERMOSTAT

$6.99

$

In Stock, only 3 left!

0

130

Toro 98-7777

BOLT

$2.49

$

Usually ships in 3-6 days

0
