72279 TE (7000) - Toro 132cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 410000000 - 999999999) Deck Assembly Parts Diagram

132cm Z Master Zero-Turn Mower, Rear-Discharge Deck

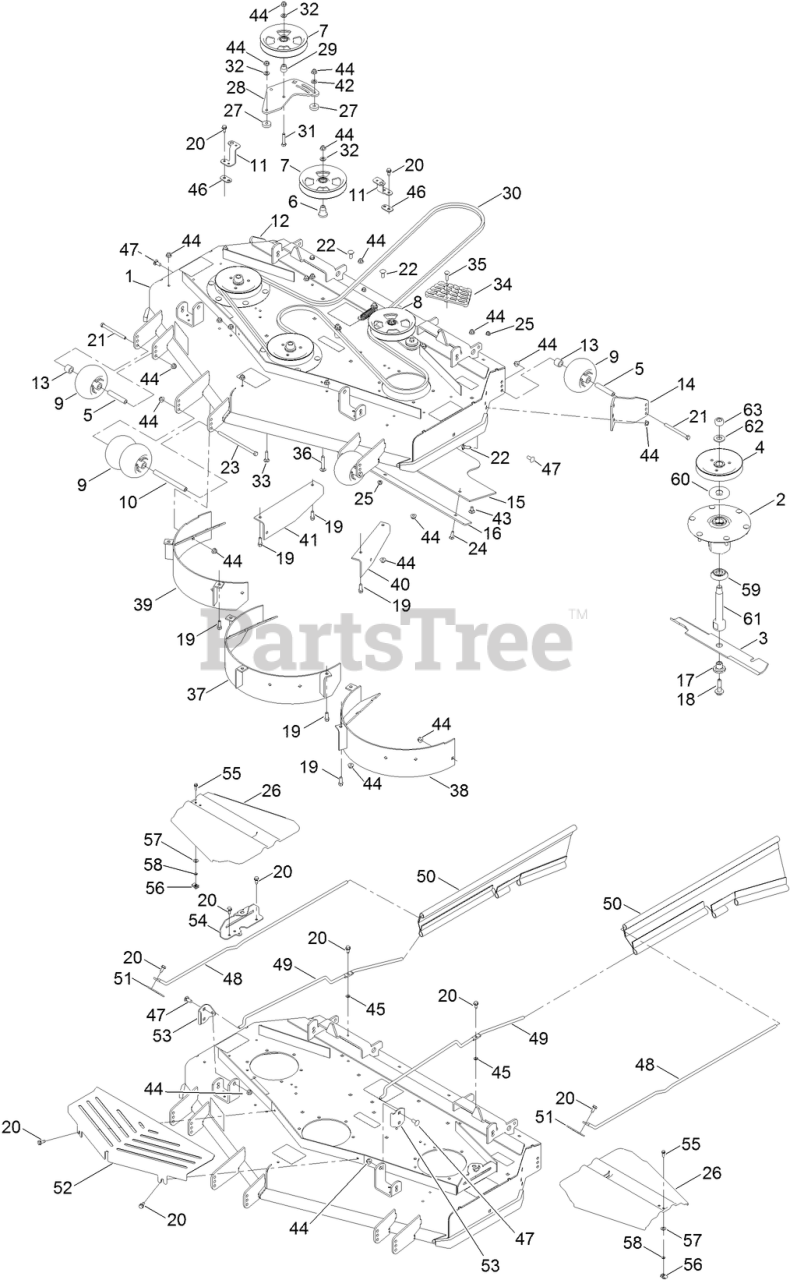

Deck Assembly Parts Diagram

  • Title

1

Toro 140-1155

DECK ASM

$2610.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

3

Toro 140-1242

BLADE-FLOW, HIGH

$30.99

$

In Stock, only 4 left!

0

4

Toro 138-6061

SHEAVE-BLADE, DRIVE

$35.99

$

In Stock, only 4 left!

0

5

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

6

Toro 106-3214

MOUNT-PULLEY

$13.99

$

In Stock, Qty 20+

0

7

Toro 132-9424

PULLEY-IDLER, FLAT

$47.99

$

In Stock, Qty 20+

0

8

Toro 114-1812

SPRING IDLER ASM

$243.99

$

Usually ships in 3-6 days

0

9

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

10

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

11

Toro 108-2177-01

BRACKET-COVER, TALL

$35.99

$

In Stock, only 2 left!

0

12

Toro 112-3893-01

MOUNT-ANTI SCALP, RH

$77.99

$

Usually ships in 3-6 days

0

13

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

14

Toro 112-3895-01

MOUNT-ANTI SCALP, LH

$77.99

$

Usually ships in 3-6 days

0

15

Toro 112-3869

DEFLECTOR-RUBBER

$174.99

$

Usually ships in 3-6 days

0

16

Toro 112-3868-01

SKID-SKIRT

$118.99

$

Usually ships in 3-6 days

0

17

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

18

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

19

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

22

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

24

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 107-8536

COVER-BELT

$26.99

$

In Stock, Qty 12

0

27

Toro 105-7788

SPACER

$9.49

$

In Stock, only 2 left!

0

28

Toro 107-8516-01

PLATE-IDLER

$67.99

$

Usually ships in 3-6 days

0

29

Toro 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

30

Toro 108-5951

BELT-V

$159.99

$

In Stock, only 2 left!

0

31

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

34

Toro 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 2 left!

0

35

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

36

Toro 3231-7

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

37

Toro 112-3871-01

BAFFLE-CENTER

$356.99

$

Usually ships in 3-6 days

0

38

Toro 112-3872-01

BAFFLE-LH

$271.99

$

Usually ships in 3-6 days

0

39

Toro 112-3873-01

BAFFLE-RH

$271.99

$

Usually ships in 3-6 days

0

40

Toro 112-3862-01

BAFFLE-TRAILING

$54.99

$

Usually ships in 3-6 days

0

41

Toro 112-3863-01

BAFFLE-TRAILING

$54.99

$

Usually ships in 3-6 days

0

42

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

43

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

44

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

45

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

46

Toro 119-4222-01

SPACER-BELT COVER

$22.99

$

Usually ships in 3-6 days

0

47

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

48

Toro 131-4004

ROD-SUPPORT, UPPER

$54.99

$

Usually ships in 3-6 days

0

49

Toro 131-7707

ROD SUPPORT, LOWER

$170.99

$

Usually ships in 3-6 days

0

50

Toro 131-7701

GUARD SIDE

$36.99

$

Usually ships in 3-6 days

0

51

Toro 131-4003-03

BRACKET-MOUNTING, UPPER ROD

$7.49

$

Usually ships in 3-6 days

0

52

Toro 131-3983-03

SHIELD-FRONT

$102.99

$

Usually ships in 3-6 days

0

53

Toro 131-4198-03

BRACKET-MOUNTING, FRONT

$26.99

$

Usually ships in 3-6 days

0

54

Toro 131-4002-03

BRACKET-SUPPORT, SPINDLE COVER

$34.99

$

Usually ships in 3-6 days

0

55

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

56

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

57

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

58

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 5

0

59

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

60

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

61

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

62

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

63

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0
