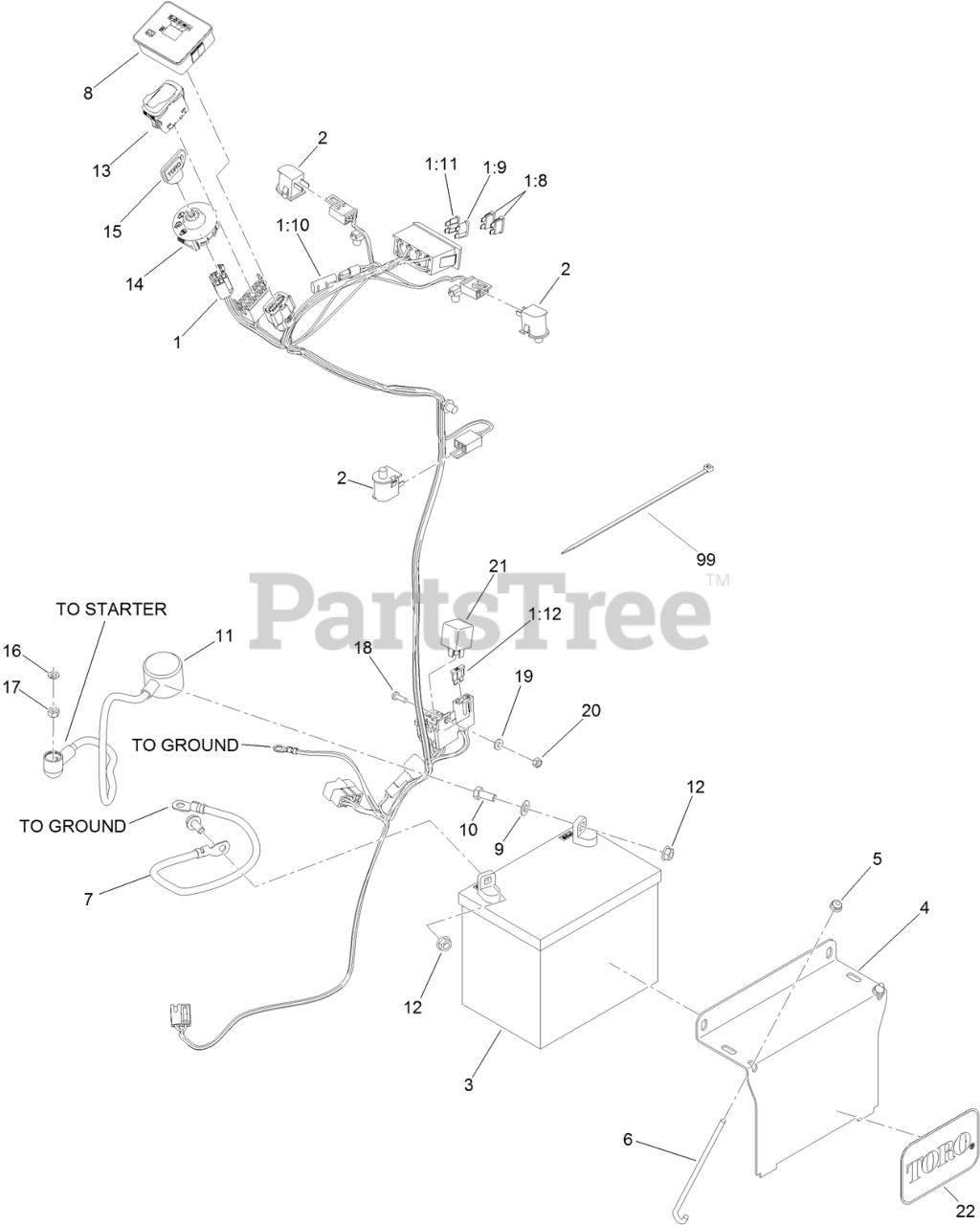

72504 - Toro 48" GrandStand Stand-On Mower (SN: 413000000 - 414288219) Electrical Assembly Parts Diagram

48" GrandStand Stand-On Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 140-1879

HARNESS-WIRE
(Superseded to 145-5228)

$385.99

$

In Stock, only 1 left!

0

1:8

Toro 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 8

0

1:9

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, only 4 left!

0

1:10

Toro 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

1:11

Toro 114241

FUSE-BLADE, 7.5 AMP

$12.99

$

Usually ships in 3-6 days

0

1:12

Toro 109103

FUSE-BLADE, 30 AMP

$7.49

$

In Stock, only 4 left!

0

2

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

3

Toro 104-8162

BATTERY-DRY

$

$

Not available

4

Toro 130-6635-01

BRACKET-HOLD DOWN, BATTERY

$33.99

$

Usually ships in 3-6 days

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

7

Toro 112-7063

CABLE-BATTERY, BLACK

$52.99

$

Usually ships in 3-6 days

0

8

Toro 140-1884

MODULE-METER, HOUR

$166.99

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 115-3864

CABLE-BATTERY, POSITIVE

$34.99

$

In Stock, only 2 left!

0

12

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 139-6367

SWITCH-ROCKER, (ON)-ON-OFF

$38.99

$

In Stock, Qty 11

0

14

Toro 137-4101

SWITCH-IGNITION

$37.99

$

In Stock, Qty 14

0

15

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

18

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

22

Toro 67-1300

DECAL

$35.99

$

In Stock, only 2 left!

0

99

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8
