72505 - Toro 52" GrandStand Stand-On Mower (SN: 413000000 - 414288319) 52 Inch Deck Assembly Parts Diagram

52" GrandStand Stand-On Mower

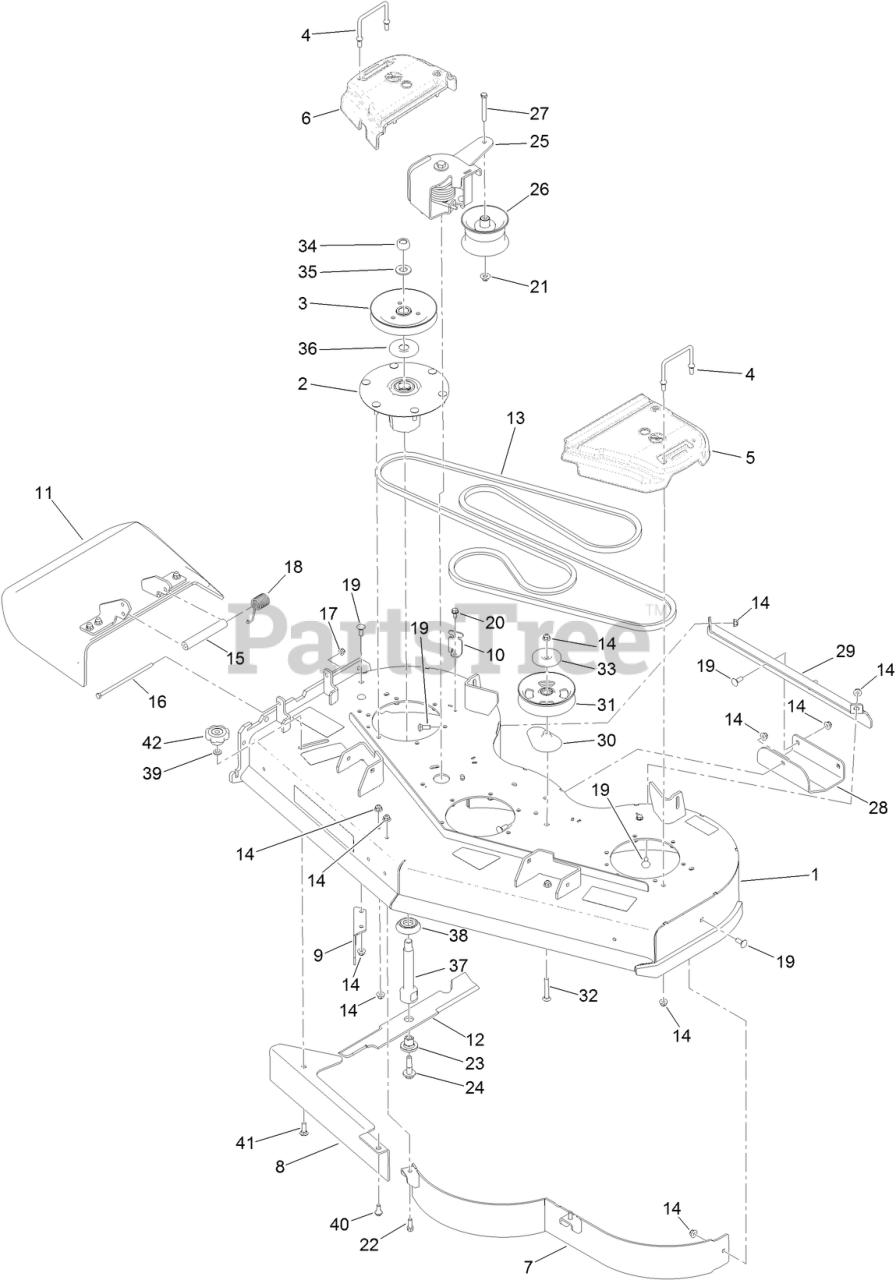

52 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 139-8097

52 DECK ASM

$1999.99

$

Usually ships in 3-6 days

0

2

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

3

Toro 138-6061

SHEAVE-BLADE, DRIVE

$35.99

$

In Stock, only 4 left!

0

4

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

5

Toro 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

6

Toro 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 18

0

7

Toro 114-1979-01

BAFFLE-52 INCH

$306.99

$

In Stock, only 1 left!

0

8

Toro 139-8105-01

PLATE-BAFFLE, FORMED [RED]

$89.99

$

Usually ships in 3-6 days

0

9

Toro 130-6594-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

10

Toro 117-5758-03

BRACKET-COVER

$14.99

$

Usually ships in 3-6 days

0

11

Toro 120-2451

DEFLECTOR ASM

$270.99

$

In Stock, Qty 10

0

12

Toro 140-1242

BLADE-FLOW, HIGH

$30.99

$

In Stock, only 4 left!

0

13

Toro 131-1122

BELT-V
(Superseded to 145-3482)

$128.99

$

In Stock, Qty 10

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

16

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

23

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

24

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

25

Toro 136-7395

IDLER TORSION ASM
(Superseded to 145-3450)

$262.99

$

In Stock, only 4 left!

0

26

Toro 127-1971

PULLEY-IDLER

$143.99

$

Usually ships in 3-6 days

0

27

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

28

Toro 114-1908-01

SKID

$93.99

$

Usually ships in 3-6 days

0

29

Toro 130-6648-01

BRACKET-SKID

$60.99

$

Usually ships in 3-6 days

0

30

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

31

Toro 136-5405

PULLEY-IDLER,FLAT
(Superseded to 136-5405)

$52.99

$

In Stock, only 4 left!

0

32

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

33

Toro 132-5154

SHIELD-DUST

$15.99

$

In Stock, only 2 left!

0

34

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

35

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

36

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

37

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

38

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

39

Toro 100-4852

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

40

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 7

0

41

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

42

Toro 109-1092

KNOB

$9.49

$

In Stock, only 1 left!
