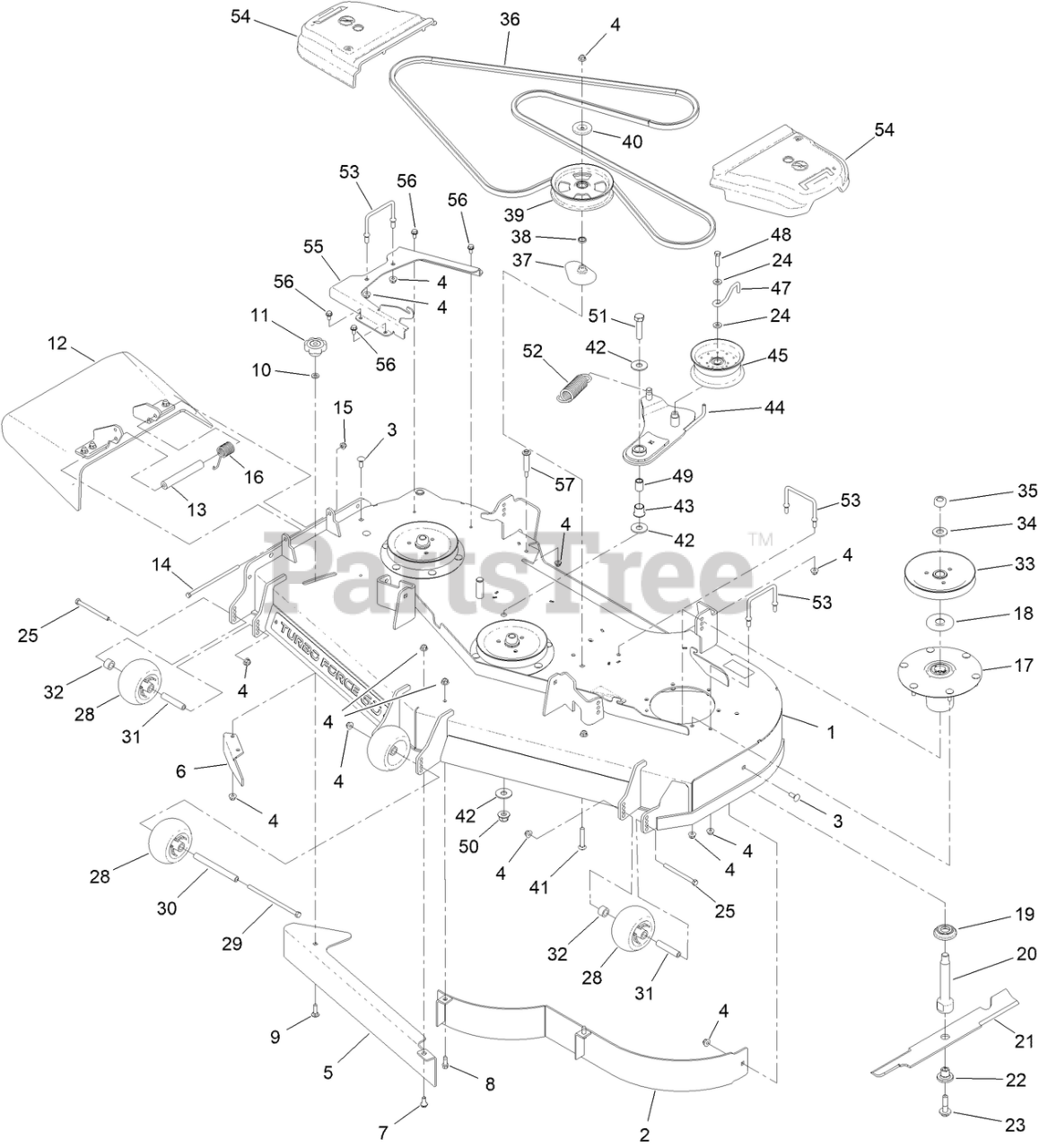

72510 - Toro 60" GrandStand HDX Stand-On Mower (SN: 416800000 - 417999999) 60 Inch Deck Assembly Parts Diagram

60" GrandStand HDX Stand-On Mower

60 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 145-1617

60 DECK ASM W/DECALS

$

$

Currently unavailable

2

Toro 117-9701-01

BAFFLE ASM

$194.99

$

Usually ships in 3-6 days

0

3

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 139-8106-01

PLATE-BAFFLE, FORMED [RED]

$76.99

$

Usually ships in 3-6 days

0

6

Toro 106-3216-01

BAFFLE-DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

7

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 7

0

8

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

9

Toro 119-4162

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

10

Toro 100-4852

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

11

Toro 109-1092

KNOB

$9.49

$

In Stock, only 1 left!

0

12

Toro 144-2635

RUBBER DEFLECTOR ASM

$186.99

$

Usually ships in 3-6 days

0

13

Toro 105-4622

SPACER

$11.99

$

In Stock, only 3 left!

0

14

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

17

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 9

0

18

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

19

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

20

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

21

Toro 140-1240

BLADE

$28.99

$

In Stock, Qty 20+

0

22

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

23

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

24

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 7

0

25

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

28

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

29

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

30

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

31

Toro 133-2129

TUBE-SHAFTING

$15.99

$

In Stock, only 2 left!

0

32

Toro 133-2128

TUBE-SPACER

$18.99

$

In Stock, only 3 left!

0

33

Toro 138-6059

SHEAVE-DRIVE, BLADE

$31.99

$

In Stock, only 2 left!

0

34

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

35

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

36

Toro 131-1121

BELT-V
(Superseded to 145-3481)

$

$

Not available

37

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

38

Toro 107-4293

SPACER-PLATE, BBC

$13.99

$

In Stock, Qty 5

0

39

Toro 136-5404

PULLEY-IDLER, FLAT

$68.99

$

Usually ships in 3-6 days

0

40

Toro 132-5153

SHIELD-DUST

$28.99

$

Usually ships in 3-6 days

0

41

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

42

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

43

Toro 135-1248

BUSHING, IGUS

$5.99

$

In Stock, Qty 15

0

44

Toro 147-7796-03

IDLER ARM ASM [BLACK]

$153.99

$

Usually ships in 3-6 days

0

45

Toro 116-4666

IDLER-PULLEY, FLAT

$75.99

$

In Stock, Qty 17

0

47

Toro 147-4644

WIREFORM BELT GUIDE,IDLER, TOP

$8.49

$

Usually ships in 3-6 days

0

48

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

49

Toro 147-7797

BUSHING-IDLER PIVOT
(Superseded to 163-3438)

$16.99

$

Usually ships in 3-6 days

0

50

Toro 133-9681

NUT-HF

$4.99

$

Usually ships in 3-6 days

0

51

Toro 327-7

SCREW-HH

$14.99

$

In Stock, only 1 left!

0

52

Toro 108-5412

SPRING-EXTENSION

$83.99

$

Usually ships in 3-6 days

0

53

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

54

Toro 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

55

Toro 147-4552-01

PLATFORM, BELT COVER 60

$58.99

$

Usually ships in 3-6 days

0

56

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

57

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0
