72517 - Toro 72" GrandStand HDX Stand-On Mower (SN: 417000000 - 417999999) 72 Inch Deck Assembly Parts Diagram

72" GrandStand HDX Stand-On Mower

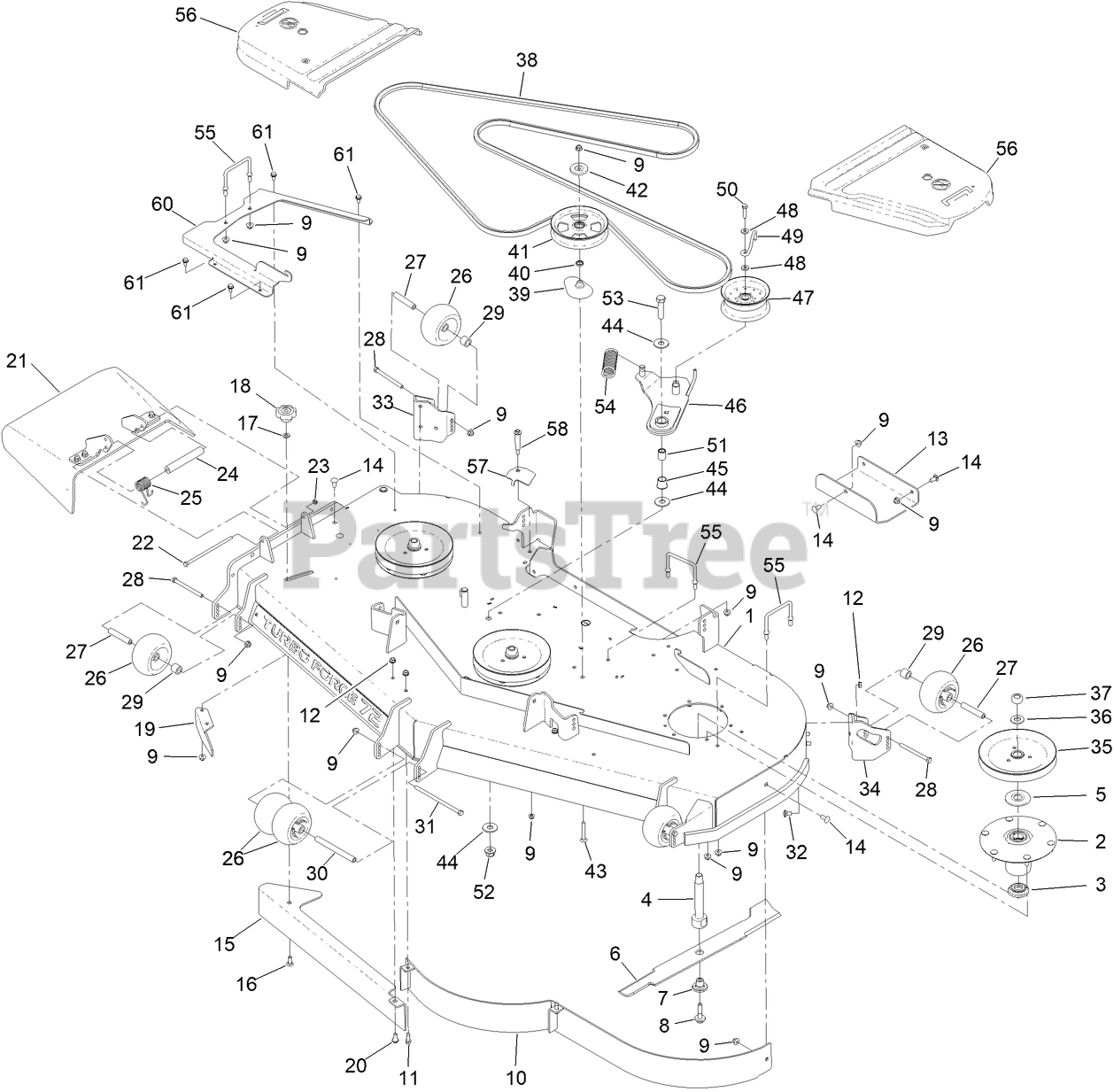

72 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 145-1621

72 DECK ASM W/DECALS

$

$

Currently unavailable

2

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

3

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

4

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

5

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

6

Toro 140-1238

BLADE

$41.99

$

In Stock, Qty 20+

0

7

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

8

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 114-5843-01

BAFFLE

$337.99

$

Usually ships in 3-6 days

0

11

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 147-4777-01

PLATE, SKID 72

$63.99

$

Usually ships in 3-6 days

0

14

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

15

Toro 138-6051-01

PLATE-BAFFLE

$134.99

$

Usually ships in 3-6 days

0

16

Toro 119-4162

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

17

Toro 100-4852

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

18

Toro 109-1092

KNOB

$9.49

$

In Stock, only 1 left!

0

19

Toro 106-3216-01

BAFFLE-DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

20

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 7

0

21

Toro 144-2635

RUBBER DEFLECTOR ASM

$186.99

$

Usually ships in 3-6 days

0

22

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

23

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

24

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

25

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

26

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

27

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

28

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

29

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

30

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

31

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

32

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

33

Toro 106-7355-01

MOUNT-WHEEL, RH

$120.99

$

Usually ships in 3-6 days

0

34

Toro 106-7354-01

MOUNT-WHEEL, LH

$120.99

$

Usually ships in 3-6 days

0

35

Toro 138-6060

SHEAVE-DRIVE, BLADE

$38.99

$

In Stock, Qty 5

0

36

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

37

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

38

Toro 145-1607

BELT 5V-72" DECK

$225.99

$

Usually ships in 3-6 days

0

39

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

40

Toro 107-4293

SPACER-PLATE, BBC

$13.99

$

In Stock, Qty 5

0

41

Toro 136-5404

PULLEY-IDLER, FLAT

$68.99

$

Usually ships in 3-6 days

0

42

Toro 132-5153

SHIELD-DUST

$28.99

$

Usually ships in 3-6 days

0

43

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

44

Toro 104-9216

WASHER-HARDENED

$7.49

$

In Stock, only 2 left!

0

45

Toro 135-1248

BUSHING, IGUS

$5.99

$

In Stock, Qty 15

0

46

Toro 147-7796-03

IDLER ARM ASM [BLACK]

$153.99

$

Usually ships in 3-6 days

0

47

Toro 116-4666

IDLER-PULLEY, FLAT

$75.99

$

In Stock, Qty 18

0

48

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 7

0

49

Toro 147-4644

WIREFORM BELT GUIDE,IDLER, TOP

$8.49

$

Usually ships in 3-6 days

0

50

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 147-7797

BUSHING-IDLER PIVOT
(Superseded to 163-3438)

$16.99

$

Usually ships in 3-6 days

0

52

Toro 133-9681

NUT-HF

$4.99

$

Usually ships in 3-6 days

0

53

Toro 327-9

SCREW-HH
(Superseded to 01-182-1024)

$

$

Not available

54

Toro 108-5412

SPRING-EXTENSION

$83.99

$

Usually ships in 3-6 days

0

55

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

56

Toro 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

57

Toro 147-4754-03

PLATE, BELT-GUIDE

$10.99

$

Usually ships in 3-6 days

0

58

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

60

Toro 147-4751-01

PLATFORM, BELT COVER 72

$94.99

$

Usually ships in 3-6 days

0

61

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
