72517 - Toro 72" GrandStand HDX Stand-On Mower (SN: 417000000 - 417999999) Deck Lift Assembly Parts Diagram

72" GrandStand HDX Stand-On Mower

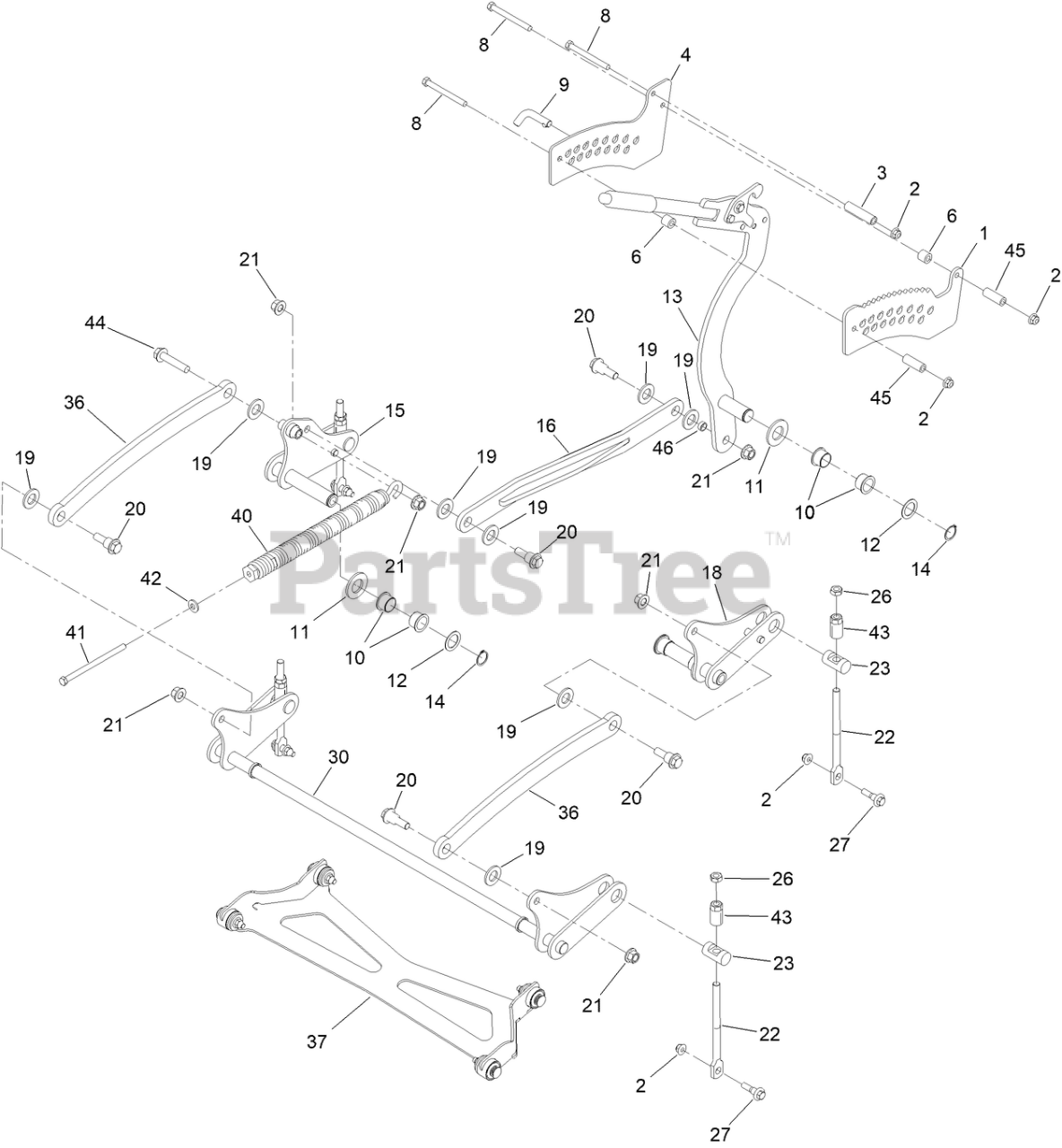

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 138-4887

PLATE-HOC, INNER

$118.99

$

Usually ships in 3-6 days

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 138-1111

SPACER

$17.99

$

Usually ships in 3-6 days

0

4

Toro 132-7581

HOC PLATE AND DECAL ASM

$93.99

$

Usually ships in 3-6 days

0

6

Toro 121-1760

SPACER

$2.49

$

Usually ships in 3-6 days

0

8

Toro 116-4701

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 20+

0

10

Toro 127-0369

BUSHING

$8.49

$

Usually ships in 3-6 days

0

11

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

12

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 20+

0

13

Toro 161-6735

HOC LEVER ASM

$340.99

$

Usually ships in 3-6 days

0

14

Toro 32151-29

RING-RETAINING

$5.99

$

In Stock, only 2 left!

0

15

Toro 147-2441-03

RH REAR LIFT ARM ASM [BLACK]

$169.99

$

Usually ships in 3-6 days

0

16

Toro 147-4810-03

HOC LINK ASM [BLACK]

$155.99

$

Usually ships in 3-6 days

0

18

Toro 147-2446-03

LH REAR LIFT ARM ASM [BLACK]

$146.99

$

Usually ships in 3-6 days

0

19

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

20

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, only 2 left!

0

21

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

22

Toro 147-4822

LINK-ADJUSTER, DECK LIFT

$54.99

$

Usually ships in 3-6 days

0

23

Toro 109-8353

TRUNNION

$15.99

$

In Stock, only 3 left!

0

26

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

27

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

30

Toro 163-0503-03

FRONT CROSS SHAFT ASM [BLACK]

$193.99

$

Usually ships in 3-6 days

0

36

Toro 147-4768-03

LINK ARM - LIFT 72

$91.99

$

Usually ships in 3-6 days

0

37

Toro 147-4557

ASM-DECK STRUT W/BUSHINGS

$346.99

$

Usually ships in 3-6 days

0

40

Toro 116-0886

SPRING-EXTENSION

$153.99

$

In Stock, only 1 left!

0

41

Toro 323-58

BOLT-TAP, HH

$5.99

$

Usually ships in 3-6 days

0

42

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

43

Toro 109-7840

ADJUSTER-LIFT, DECK

$8.49

$

In Stock, only 4 left!

0

44

Toro 127-7444

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

45

Toro 95-6448

SPACER

$6.49

$

Usually ships in 3-6 days

0

46

Toro 138-2235

SPACER

$6.49

$

Usually ships in 3-6 days

0
