72517 - Toro 72" GrandStand HDX Stand-On Mower (SN: 417000000 - 417999999) Motion Control Assembly Parts Diagram

72" GrandStand HDX Stand-On Mower

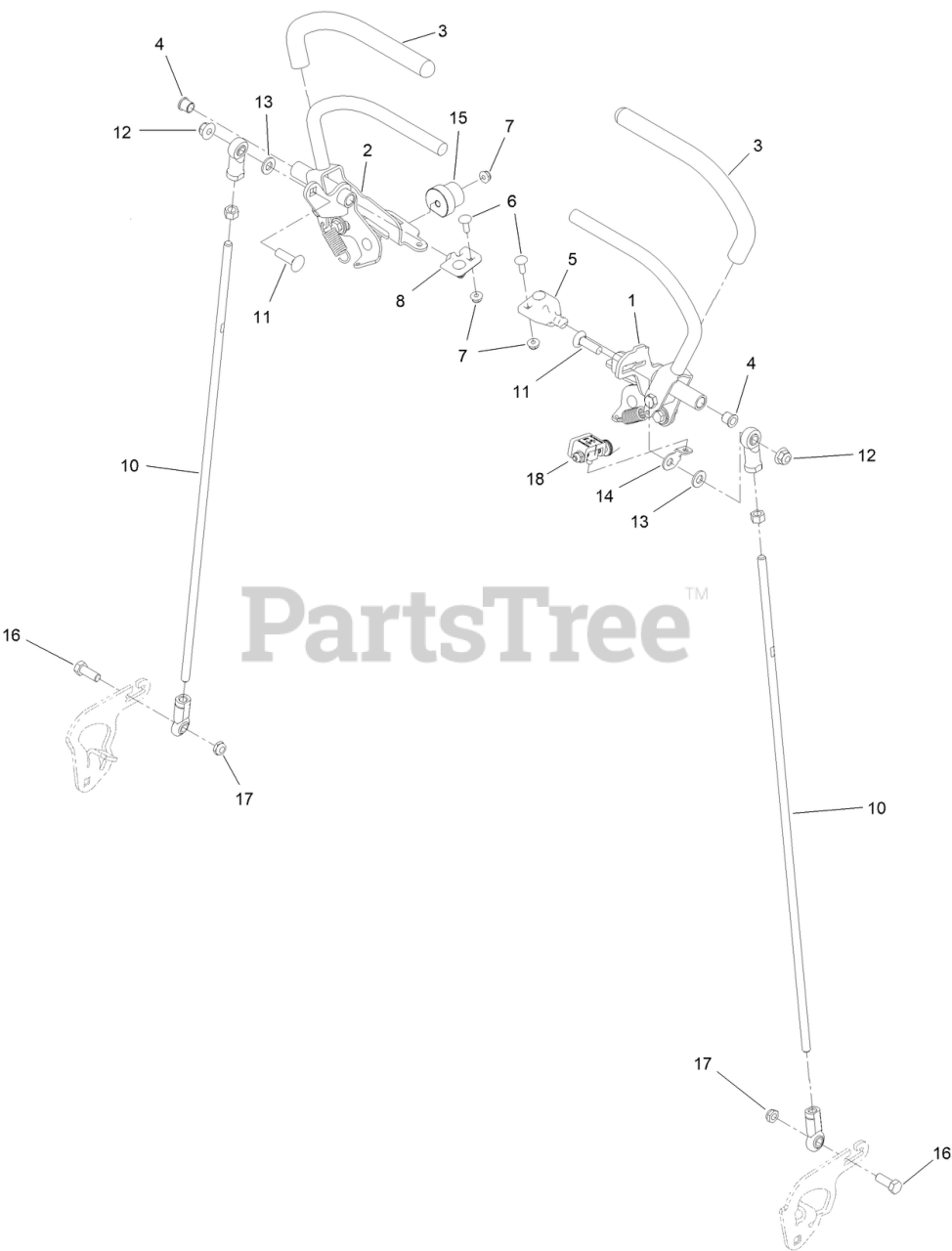

Motion Control Assembly Parts Diagram

  • Title

1

Toro 132-5157

LH CONTROL HANDLE ASM

$188.99

$

Usually ships in 3-6 days

0

2

Toro 132-5158

RH CONTROL HANDLE ASM

$188.99

$

Usually ships in 3-6 days

0

3

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

4

Toro 103-9928

BEARING

$8.49

$

In Stock, Qty 10

0

5

Toro 120-3288

TAB-PIVOT, LH

$14.99

$

In Stock, Qty 7

0

6

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 120-3287

TAB-PIVOT, RH

$14.99

$

In Stock, only 2 left!

0

10

Toro 161-2803

RH CONTROL ROD ASM

$53.99

$

Usually ships in 3-6 days

0

11

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 132-7538

BRACKET-ADJUSTMENT, SPEED

$10.99

$

Usually ships in 3-6 days

0

15

Toro 126-1499

CAM

$8.49

$

Usually ships in 3-6 days

0

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

18

Toro 132-7595

SPEED SETTING TOOL

$186.99

$

Usually ships in 3-6 days

0
