72517 - Toro 72" GrandStand HDX Stand-On Mower (SN: 417000000 - 417999999) Oil Guard Assembly Parts Diagram

72" GrandStand HDX Stand-On Mower

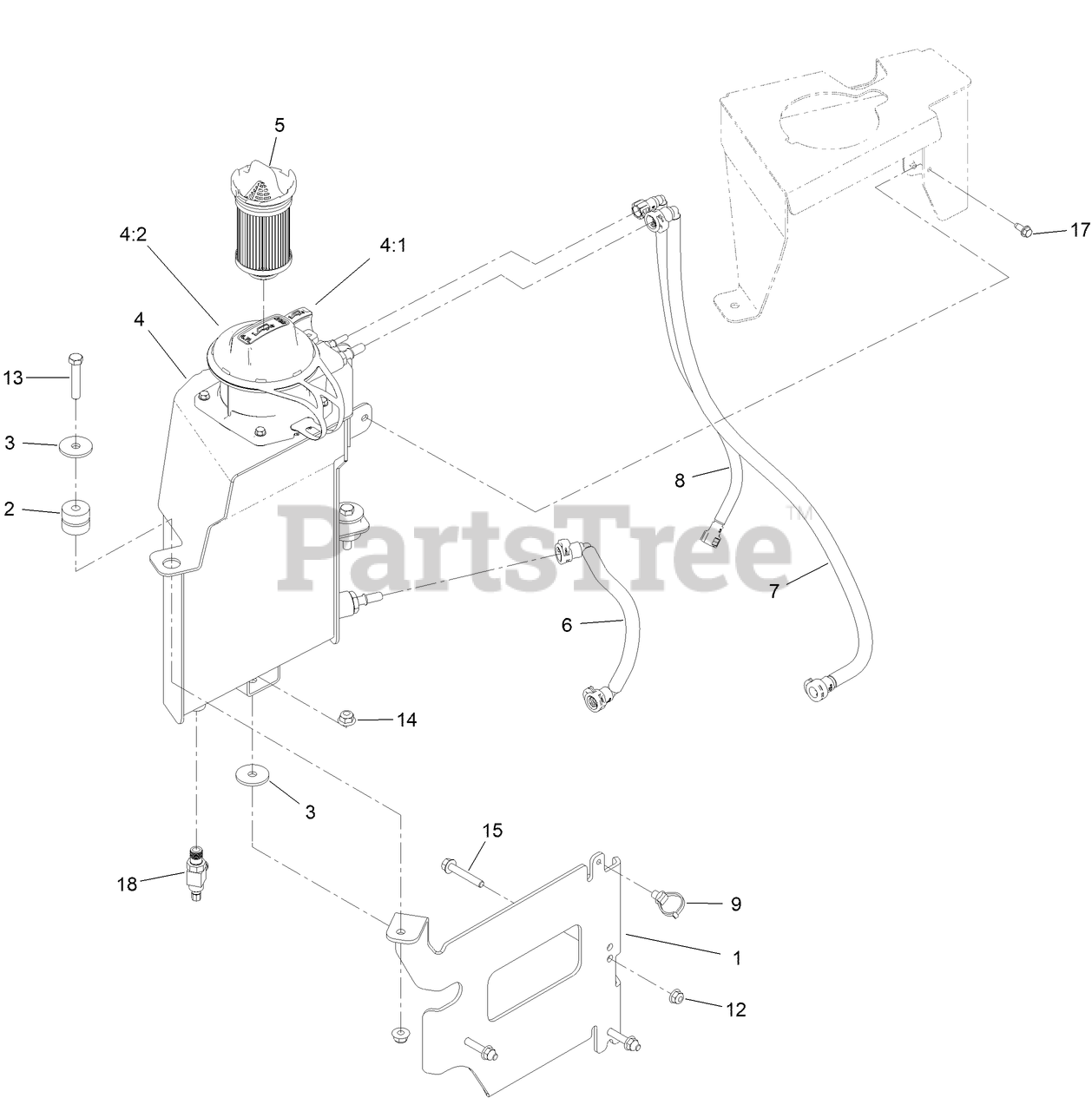

Oil Guard Assembly Parts Diagram

  • Title

1

Toro 147-0346-03

MOUNT-TANK, OIL

$91.99

$

Usually ships in 3-6 days

0

2

Toro 142-6009

ISOLATOR-TANK

$26.99

$

In Stock, only 2 left!

0

3

Toro 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

4

RESERVOIR-OIL

Note: Not serviced separately

$

$

Not available

4:1

Toro 142-7452

OIL DIPSTICK ASM

$31.99

$

Usually ships in 3-6 days

0

4:2

Toro 142-7453

OIL TANK CAP ASM

$41.99

$

Usually ships in 3-6 days

0

5

Toro 142-6841

FILTER-OIL

$47.99

$

In Stock, only 3 left!

0

6

Toro 142-7420

HOSE-SUPPLY

$26.99

$

Usually ships in 3-6 days

0

7

Toro 142-7421

HOSE-SCAVENGE

$76.99

$

Usually ships in 3-6 days

0

8

Toro 147-4970

HOSE-VENT

$42.99

$

Usually ships in 3-6 days

0

9

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

17

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

18

Toro 103-6602

VALVE-OIL DRAIN

$96.99

$

Usually ships in 3-6 days

0
