72517 - Toro 72" GrandStand HDX Stand-On Mower (SN: 417000000 - 417999999) RH Transmission Assembly No. 161-9807 Parts Diagram

72" GrandStand HDX Stand-On Mower

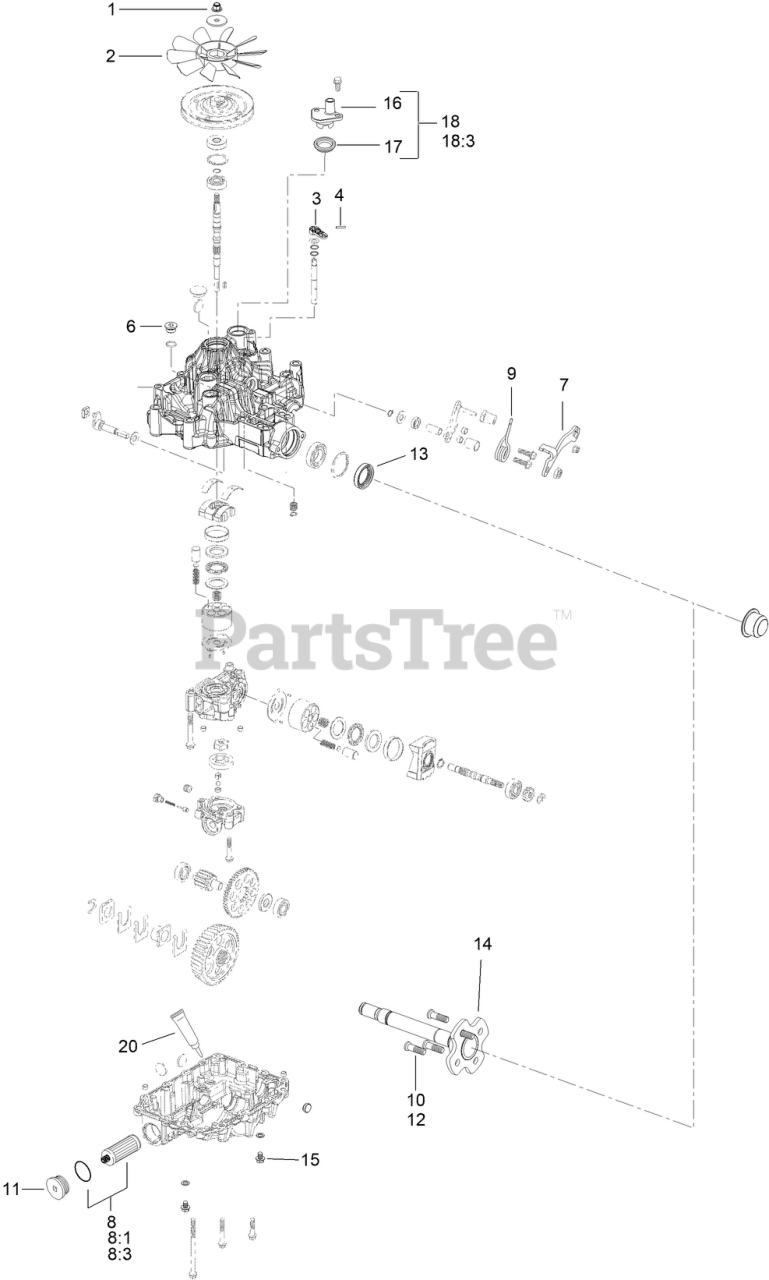

RH Transmission Assembly No. 161-9807 Parts Diagram

  • Title

1

Toro 132-4737

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

2

Toro 132-4738

FAN

$36.99

$

Usually ships in 3-6 days

0

3

Toro 104-3265

PIN

$3.49

$

Usually ships in 3-6 days

0

4

Toro 132-4700

LEVER-BYPASS

$10.99

$

Usually ships in 3-6 days

0

5

Toro 161-7917

BRAKE KIT, X

Note: Not illustrated

$65.99

$

Usually ships in 3-6 days

0

6

Toro 132-4735

CAP-OIL

$15.99

$

In Stock, only 2 left!

0

7

Toro 161-7915

LEVER-CONTROL, RH

$

$

Currently unavailable

8

Toro 144-3842

2 TRANSMISSION FILTER KIT

$108.99

$

In Stock, only 2 left!

0

8:1

FILTER (1A6370-26450)

Note: Not serviced separately

$

$

Not available

8:3

SEALING WASHER

Note: Not serviced separately

$

$

Not available

9

Toro 137-4109

SPRING-TORSION

$12.99

$

In Stock, only 2 left!

0

10

Toro 137-9509

STUD-WHEEL

$18.99

$

In Stock, only 2 left!

0

11

Toro 138-4613

CAP-OIL FILTER

$12.99

$

In Stock, only 2 left!

0

12

Toro 137-9509

STUD-WHEEL

$18.99

$

In Stock, only 2 left!

0

13

Toro 139-5587

SEAL-AXLE, UA

$45.99

$

In Stock, only 1 left!

0

14

Toro 139-5588

AXLE
(Superseded to 163-7372)

$421.99

$

Usually ships in 3-6 days

0

15

Toro 139-5589

DRAIN BOLT

$6.99

$

Usually ships in 3-6 days

0

16

Toro 139-5590

EXPANSION FITTING

$14.99

$

Usually ships in 3-6 days

0

17

Toro 139-5591

GROMMET SEAL, EXPANSION FITTING

$5.49

$

In Stock, Qty 10

0

18

Toro 139-7871

EXPANSION FITTING - W/ SEAL

$33.99

$

In Stock, only 1 left!

0

18:3

M8*20 FLANGE BOLT

Note: Not serviced separately

$

$

Not available

19

Toro 161-7916

PULLEY

Note: Not illustrated

$

$

Currently unavailable

20

Toro 163-4197

KIT-SEAL, HYDRO

$133.99

$

Usually ships in 3-6 days

0
