72520 - Toro 60" GrandStand Stand-On Mower (SN: 418000000 - 999999999) Engine Assembly Parts Diagram

60" GrandStand Stand-On Mower

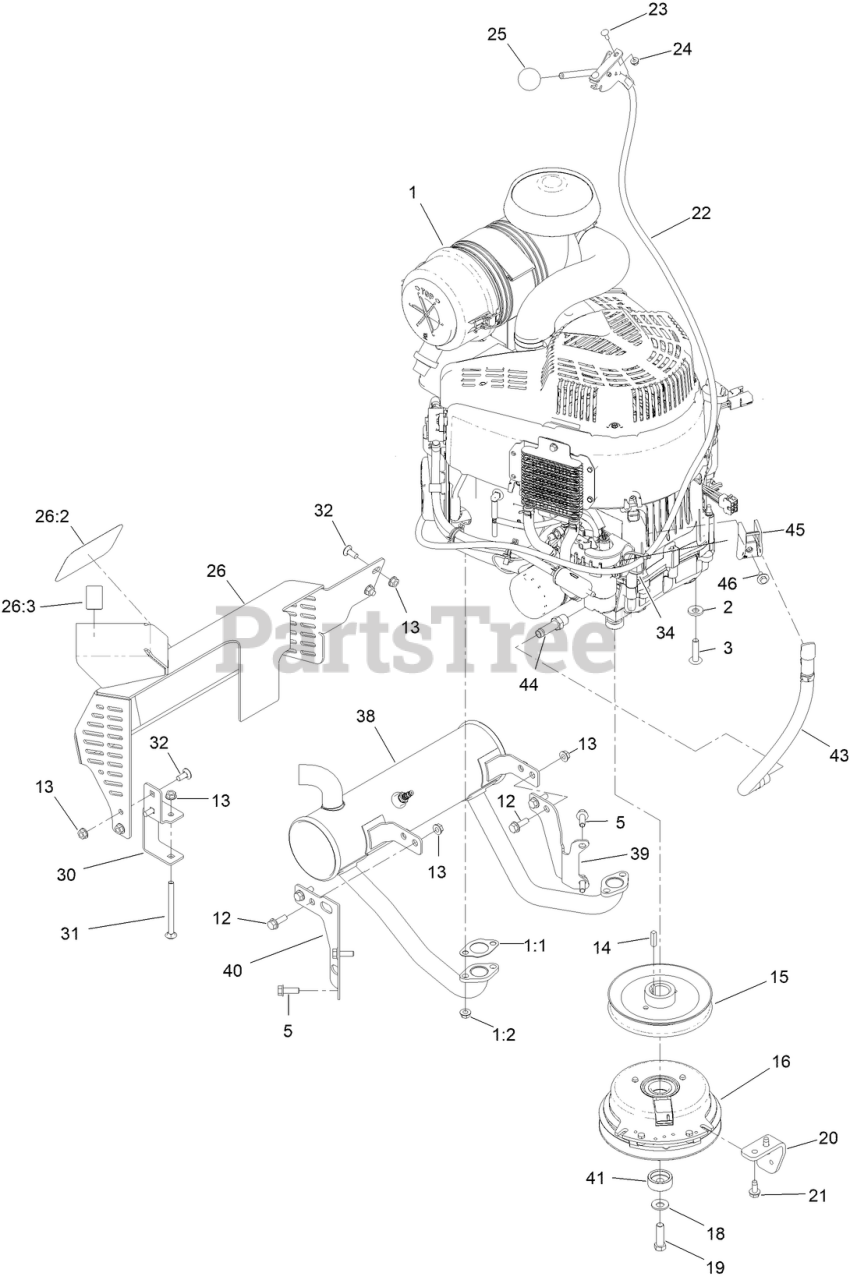

Engine Assembly Parts Diagram

  • Title

1

VANGUARD 810CC BASCO ENGINE

Note: Not serviced separately

$

$

Not available

1:1

Toro 142-9194

GASKET, EXHAUST

$7.99

$

Usually ships in 3-6 days

0

1:2

Toro 147-3472

EXHAUST NUTS

$

$

Currently unavailable

1:3

Toro 147-3473

SPARK PLUG

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days

0

1:4

Toro 142-7451

FILTER-FUEL

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

1:5

Toro 142-9659

BRIGGS ENGINE OIL FILTER 696854

Note: Not illustrated

$

$

Currently unavailable

1:6

Toro 142-9660

BRIGGS ENGINE AIR FILTER 841497

Note: Not illustrated

$

$

Currently unavailable

1:7

Toro 142-9661

BRIGGS ENGINE SAFETY FILTER 821136

Note: Not illustrated

$

$

Currently unavailable

1:8

Toro 147-3474

RAIN CAP

Note: Not illustrated

$

$

Currently unavailable

1:12

Toro 147-3478

O2 SENSOR

Note: Not illustrated

$

$

Currently unavailable

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 126-0983

SCREW-BHTF

$5.99

$

In Stock, only 3 left!

0

5

Toro 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

14

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

15

Toro 120-8498

PULLEY

$98.99

$

In Stock, only 3 left!

0

16

Toro 131-1100

CLUTCH

$649.99

$

In Stock, Qty 6

0

18

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

19

Toro 3212-6

SCREW-HH

$2.99

$

In Stock, Qty 12

0

20

Toro 131-3586-05

STOP-CLUTCH

$18.99

$

Usually ships in 3-6 days

0

21

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 145-6186

THROTTLE ASM

$72.99

$

Usually ships in 3-6 days

0

23

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, only 4 left!

0

25

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

26

Toro 163-4101

MUFFLER GUARD ASM

$266.99

$

Usually ships in 3-6 days

0

26:2

Toro 94-2579

DECAL

$15.99

$

Usually ships in 3-6 days

0

26:3

Toro 127-0392

DECAL-HOT SURFACE

$3.99

$

Usually ships in 3-6 days

0

30

Toro 131-3530-05

BRACKET-MOUNTING, GUARD

$17.99

$

Usually ships in 3-6 days

0

31

Toro 106-9758

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

32

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

34

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

38

Toro 145-3562

GS MUFFLER

$246.99

$

Usually ships in 3-6 days

0

39

Toro 145-3564

BRACKET-MUFFLER, REAR

$24.99

$

Usually ships in 3-6 days

0

40

Toro 145-3565

BRACKET-MUFFLER, FRONT

$14.99

$

Usually ships in 3-6 days

0

41

Toro 147-0248

SPACER-CLUTCH

$22.99

$

Usually ships in 3-6 days

0

43

Toro 161-6771

OIL DRAIN HOSE ASM

$

$

Not available

44

Toro 161-6772

FITTING-OIL DRAIN

$

$

Not available

45

Toro 161-6773

BRKT-OIL DRAIN HOSE

$

$

Not available

46

Toro 161-6774

BOLT-HEX, OIL DRAIN BRKT

$

$

Not available
