7268 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Engine Group-F141 Parts Diagram

Walk-Behind Mower

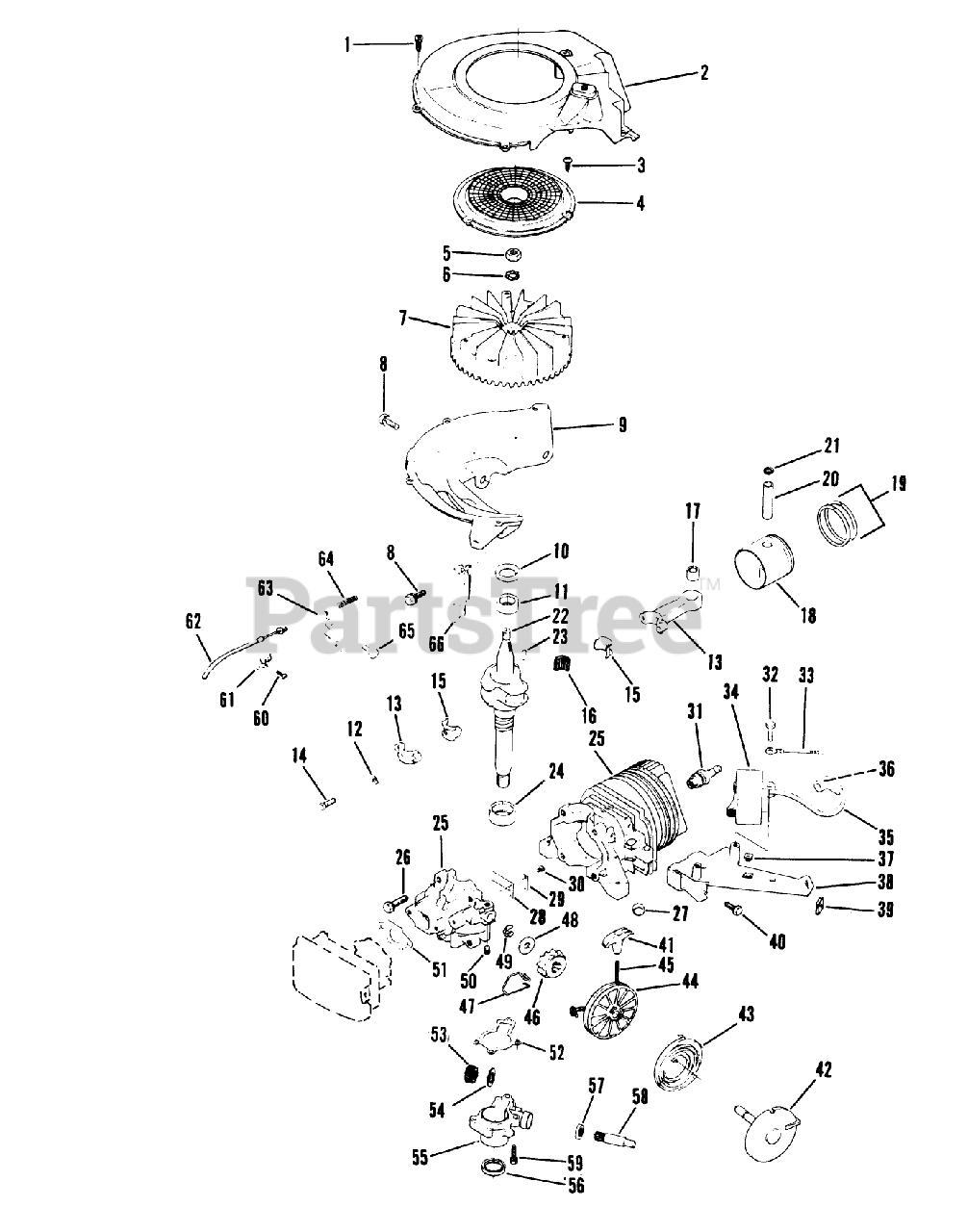

Engine Group-F141 Parts Diagram

  • Title

1

Lawn-Boy 608997

SCREW S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, only 1 left!

0

2

Lawn-Boy 681651

AIR BAF&EYELET S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$152.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 606537

SCREW F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 609465

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 130743

NUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

6

Lawn-Boy 316959

See Supercession: 3253-6
(Superseded to 325-36)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 682205

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 609947

SCREW-SEMS

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 682225

SHROUD BASE S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$266.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$8.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 681830

BEARING V

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

Lawn-Boy 681739

DISCONTINUED
(Superseded to 92-4925)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 307558

DISCONTINUED
(Superseded to 307578)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 681434

See Supercession: 92-4921
(Superseded to 92-4921)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$271.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 603976

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 677982

LINER ASM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$51.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 679144

BEARING AY F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 681738

DISCONTINUED
(Superseded to 92-4923)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681737

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

RING-RETAINING

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, Qty 9

0

22

Lawn-Boy 609407

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 607199

KEY

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 681832

BEARING S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 681655

See Supercession: 683708
(Superseded to 683708)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

Lawn-Boy 610372

SEALER-LOCTITE (6 ML TUBE)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609918

SCREW S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609123

PLUG-CORE VF

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 602588

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 602587

PLATE-BACKUP, REED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

31

Lawn-Boy 605885

See Supercession: 614009
(Superseded to 614009)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$19.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 681788

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 682340

See Supercession: 100-2949
(Superseded to 100-2949)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

Lawn-Boy 318535

Adhesive

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Currently unavailable

35

Lawn-Boy 681678

HT LEAD&COVER XEV

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 510231

See Supercession: 684698
(Superseded to 684698)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 605120

NUT-CLIP

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, Qty 10

0

38

Lawn-Boy 609120

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 609475

NUT - SPEED S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 307028

See Supercession: 614343
(Superseded to 614343)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

41

Lawn-Boy 609477

HANDLE STARTER S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 610477

See Supercession: 609477
(Superseded to 609477)

Note: Promotional Model 8071 only

$

$

Not available

41

Lawn-Boy 610477

See Supercession: 609477
(Superseded to 609477)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

Lawn-Boy 681604

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 681603

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 604257

SPRING S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$45.99

$

In Stock, Qty 6

0

44

Lawn-Boy 609457

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 607874

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 609133

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 609229

SPRING F

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.99

$

In Stock, only 4 left!

0

48

Lawn-Boy 609005

WASHER S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 609004

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 603345

SET SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$2.49

$

In Stock, only 1 left!

0

51

Lawn-Boy 609476

GASKET CARB S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 609419

GASKET S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.99

$

In Stock, Qty 7

0

53

Lawn-Boy 608367

GEAR, DR SHAFT S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$121.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 608030

THRUST WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 681435

See Supercession: 683876
(Superseded to 683876)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$8.49

$

In Stock, Qty 20+

0

57

Lawn-Boy 608224

SEAL S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 607708

DISCONTINUE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 609418

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 608957

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 608940

CLIP S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 681667

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 609647

LEVER LOCKOUT S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 302993

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 609643

BOLT S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 609642

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available
