72902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 411000000 - 412199999) Z Stand Assembly Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

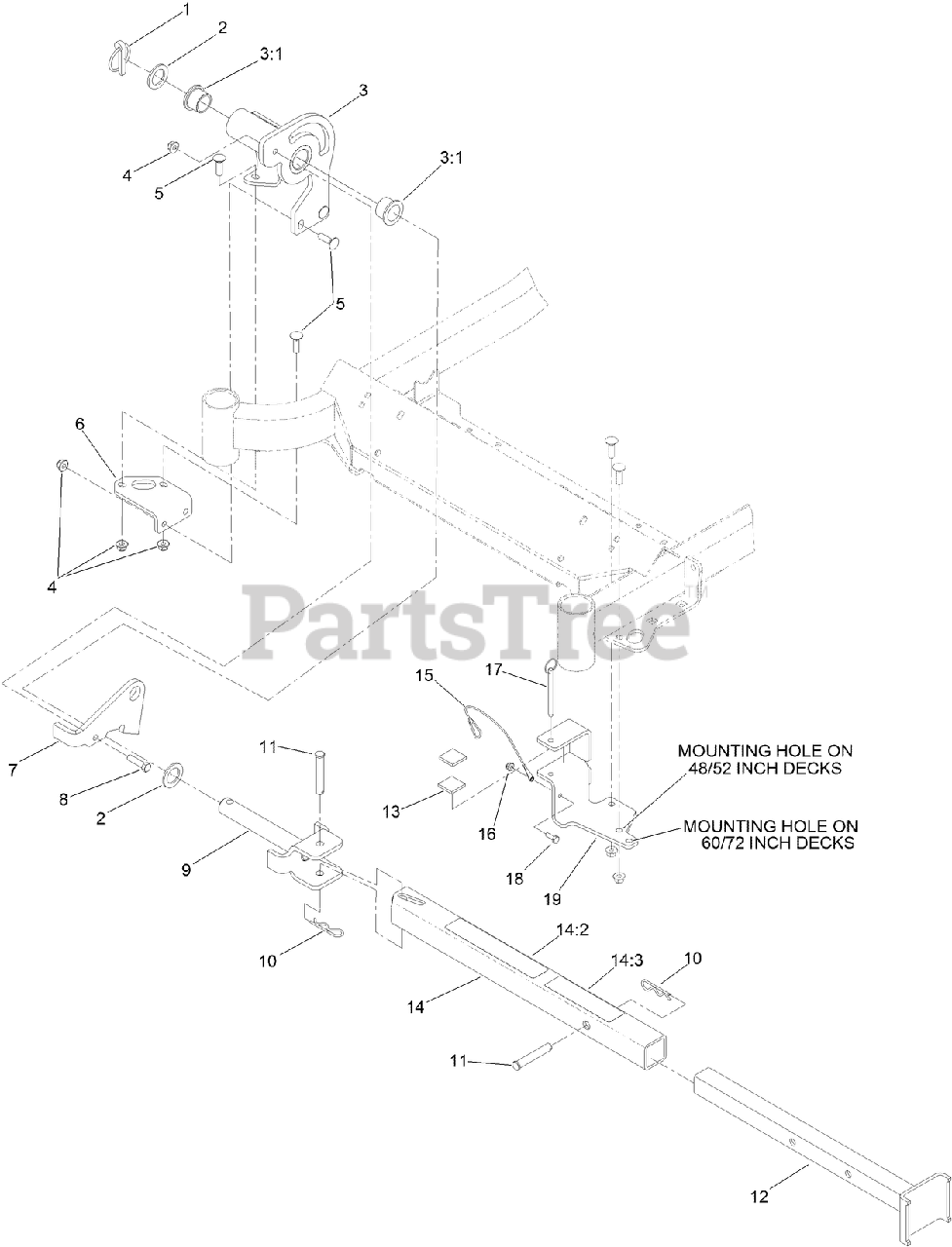

Z Stand Assembly Parts Diagram

  • Title

1

Toro 283-71

PIN-LYNCH

$6.49

$

In Stock, only 4 left!

0

2

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

3

Toro 136-1669

PIVOT PLATE ASM

$314.99

$

Usually ships in 3-6 days

0

3:1

Toro 94-1291

BUSHING

$12.99

$

In Stock, only 3 left!

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

6

Toro 115-3619-01

BRACKET-MOUNT, PIVOT

$41.99

$

Usually ships in 3-6 days

0

7

Toro 136-1657-01

PLATE-LATCH

$64.99

$

Usually ships in 3-6 days

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 100-9692-01

PIN-PIVOT

$229.99

$

Usually ships in 3-6 days

0

10

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

11

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

12

Toro 115-3631-01

TUBE-INNER

$205.99

$

Usually ships in 3-6 days

0

13

Toro 115-3613

CUSHION-RUBBER

$5.99

$

Usually ships in 3-6 days

0

14

Toro 115-3634

OUTER TUBE ASM

$250.99

$

Usually ships in 3-6 days

0

14:2

Toro 106-7464

DECAL-Z STAND

$10.99

$

Usually ships in 3-6 days

0

14:3

Toro 107-3969

DECAL-WARNING

$79.99

$

Usually ships in 3-6 days

0

15

Toro 100-9385

LANYARD-NYLON

$7.49

$

Usually ships in 3-6 days

0

16

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 105-1647

PIN-HITCH, COTTERLESS

$22.99

$

Usually ships in 3-6 days

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 115-3625-01

CRADLE-Z STAND

$127.99

$

Usually ships in 3-6 days

0
