72911 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 415299999) Deck Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

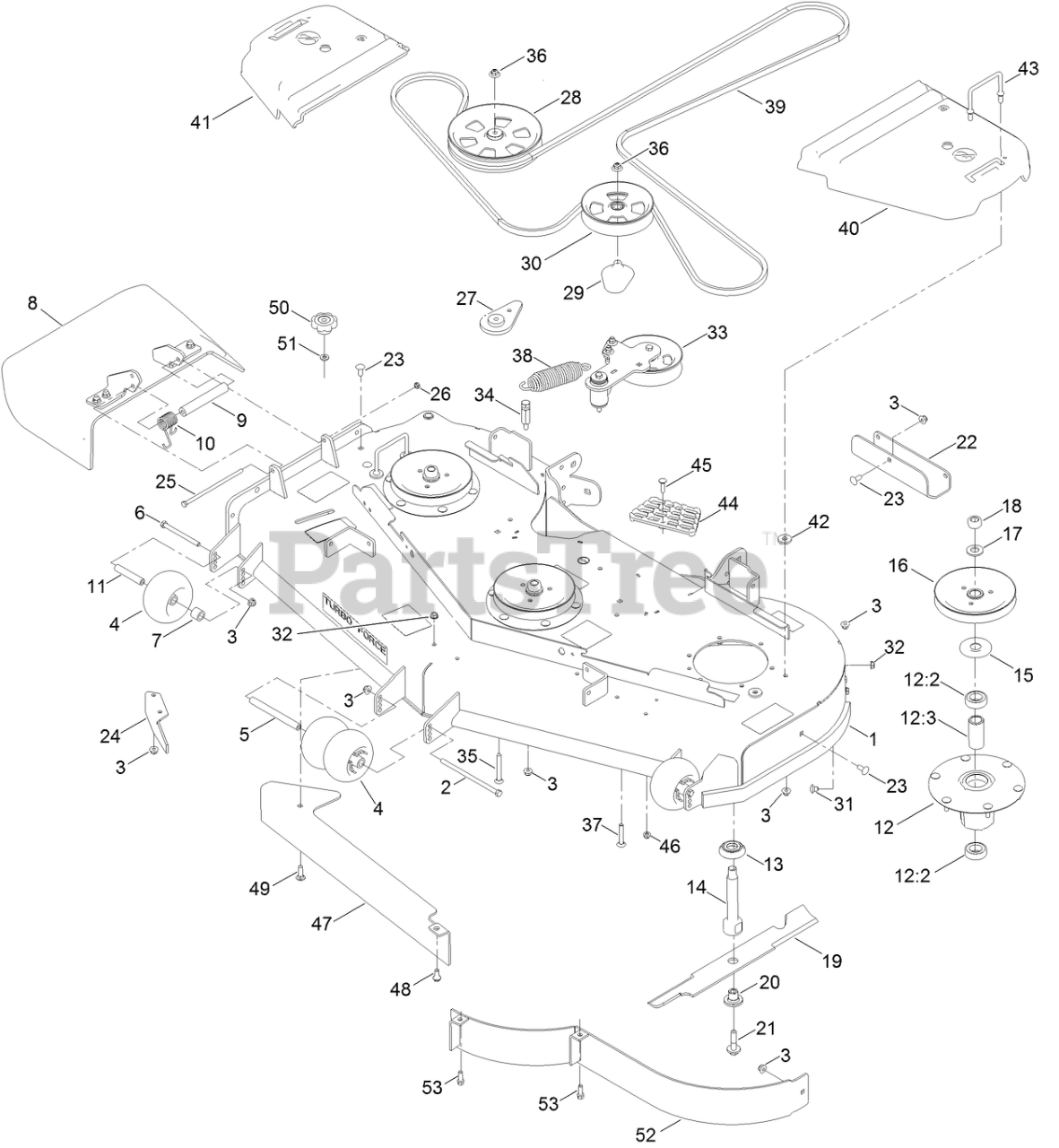

Deck Assembly Parts Diagram

  • Title

1

Toro 140-1169

DECK DECAL ASM

$2610.99

$

Usually ships in 3-6 days

0

2

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

5

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

6

Toro 323-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

7

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

8

Toro 108-2792

RUBBER DEFLECTOR ASM

$255.99

$

Usually ships in 3-6 days

0

9

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

10

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 5

0

11

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

12

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

12:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

12:3

Toro 138-6042

SPACER-BEARING

$10.99

$

Usually ships in 3-6 days

0

13

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

14

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

15

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

16

Toro 138-6059

SHEAVE-DRIVE, BLADE

$31.99

$

In Stock, only 3 left!

0

17

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

18

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

19

Toro 140-1240

BLADE

$28.99

$

In Stock, Qty 20+

0

20

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

21

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

22

Toro 121-8031-01

PLATE-SKID

$66.99

$

Usually ships in 3-6 days

0

23

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

24

Toro 106-3216-01

BAFFLE-DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

25

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 15

0

26

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

27

Toro 109-9416

SPACER-IDLER

$74.99

$

In Stock, only 3 left!

0

28

Toro 132-4734

PULLEY-IDLER,FLAT

$71.99

$

In Stock, Qty 7

0

29

Toro 109-2872

SPACER-PULLEY

$25.99

$

In Stock, Qty 20+

0

30

Toro 136-5404

PULLEY-IDLER, FLAT

$68.99

$

Usually ships in 3-6 days

0

31

Toro 108-5387

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

34

Toro 114-5867

ANCHOR-SPRING, TALL

$15.99

$

In Stock, Qty 7

0

35

Toro 3231-42

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

36

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

38

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

39

Toro 132-5982

BELT-V

$188.99

$

In Stock, only 1 left!

0

40

Toro 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

41

Toro 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

42

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

43

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

44

Toro 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 2 left!

0

45

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

46

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

47

Toro 138-6051-01

PLATE-BAFFLE

$134.99

$

Usually ships in 3-6 days

0

48

Toro 94-7582

BOLT-SHOULDER

$3.99

$

In Stock, Qty 7

0

49

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

50

Toro 109-1092

KNOB

$9.49

$

In Stock, only 1 left!

0

51

Toro 100-4852

WASHER-HARDENED

$6.49

$

Usually ships in 3-6 days

0

52

Toro 114-5842-01

BAFFLE

$268.99

$

Usually ships in 3-6 days

0

53

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
