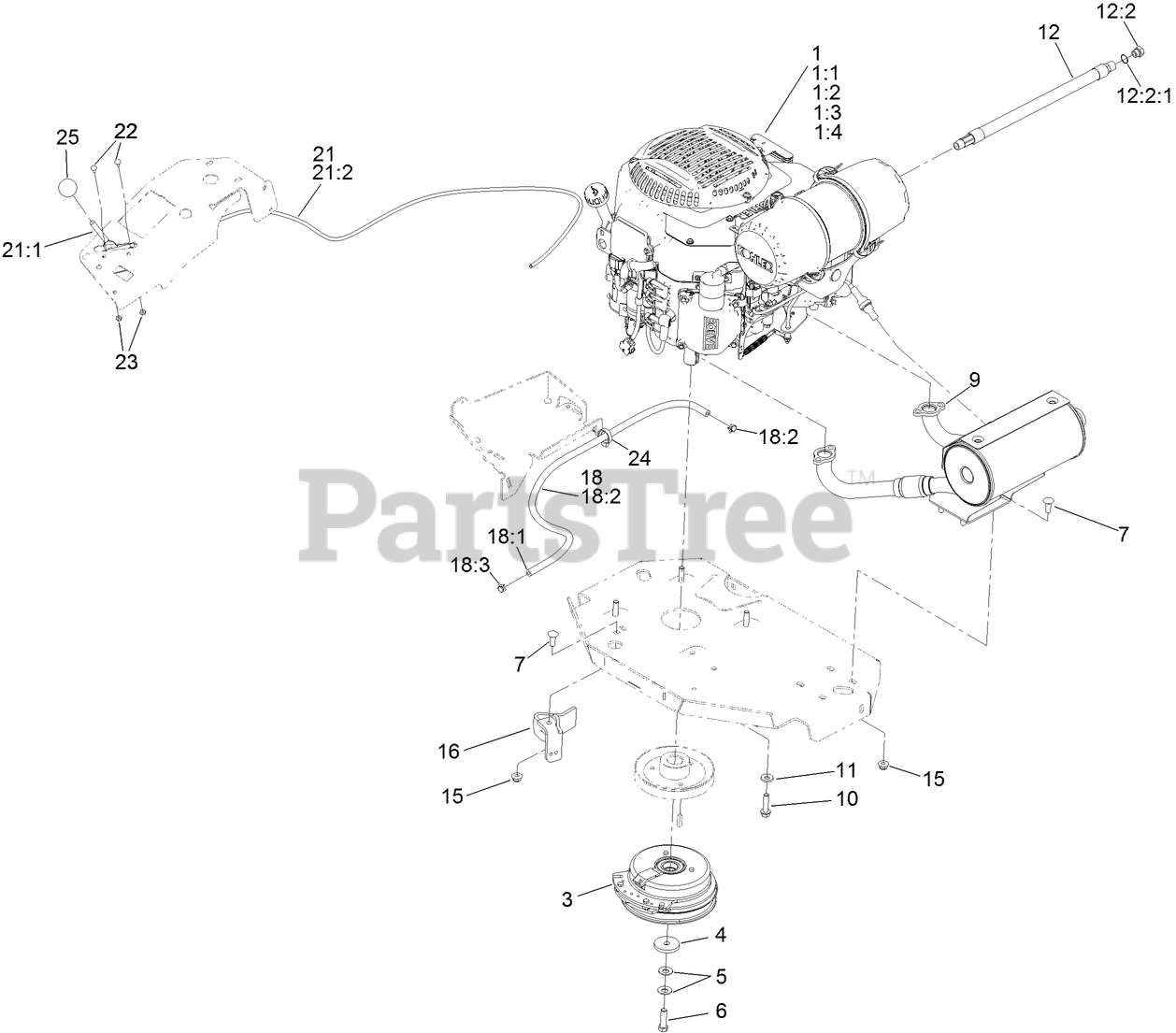

72918 (5000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 415200000 - 417999999) Engine Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER ECV749-3064

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER ECV749-3064

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:1

KOHLER 52 050 02-S ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

1:1

KOHLER 52 050 02-S ENGINE OIL FILTER

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:2

KOHLER 25 083 01-S ENGINE AIR FILTER

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:2

KOHLER 25 083 01-S ENGINE AIR FILTER

Note: Not serviced separately

$

$

Not available

1:3

KOHLER 25 083 04-S SAFETY FILTER

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1:3

KOHLER 25 083 04-S SAFETY FILTER

Note: Not serviced separately

$

$

Not available

1:4

KOHLER 25 050 42-S FUEL FILTER

Note: Not serviced separately

$

$

Not available

3

Toro 116-1620

CLUTCH KIT

$392.99

$

In Stock, Qty 18

0

4

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 9

0

5

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.99

$

In Stock, Qty 13

0

7

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9

Toro 142-6858

KIT,MUFFLER

$538.99

$

In Stock, only 3 left!

0

10

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, only 3 left!

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Toro 116-5316

OIL DRAIN HOSE ASM

Note: Torque to 17-23 ft-lb

$62.99

$

In Stock, Qty 11

0

12:2

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

12:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 116-2612-01

CLUTCH-ANCHOR

$60.99

$

In Stock, only 2 left!

0

18

Toro 117-3893

FUEL LINE ASM

$54.99

$

Usually ships in 3-6 days

0

18:1

Toro 109-0273

HOSE-FUEL

$26.99

$

Usually ships in 3-6 days

0

18:2

Toro 117-3892

SLEEVE-THERMAL

$36.99

$

Usually ships in 3-6 days

0

18:3

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

21

Toro 115-2752

THROTTLE CONTROL ASM

$102.99

$

In Stock, only 2 left!

0

21:1

Toro 112-2334

LEVER-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

21:2

Toro 115-3868

See Supercession: 115-2752
(Superseded to 115-2752)

$102.99

$

In Stock, only 2 left!

0

22

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

25

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0
