72926 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 415299999) Electrical Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

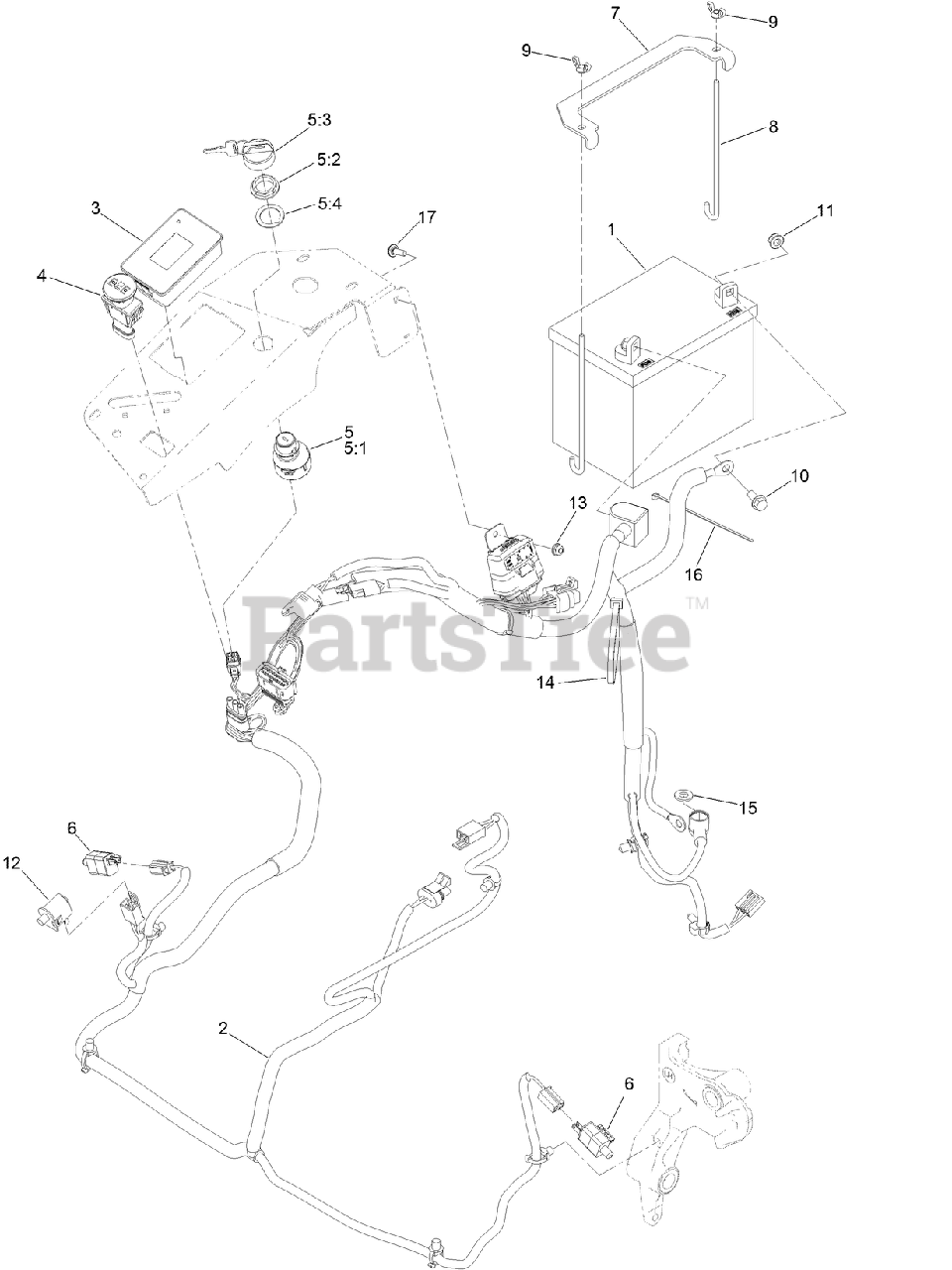

Electrical Assembly Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 135-5753

WIRE HARNESS ASM

$477.99

$

Usually ships in 3-6 days

0

3

Toro 135-2471

METER-HOUR

$

$

Not available

4

Toro 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

5

Toro 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

5:1

SWITCH-IGNITION

Note: Not serviced separately

$

$

Not available

5:2

Toro 108-8660

NUT-MOUNTING

$38.99

$

In Stock, only 2 left!

0

5:3

Toro 106-5270

IGNITION KEY SET

$25.99

$

Usually ships in 3-6 days

0

5:4

Toro 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

6

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$26.99

$

In Stock, only 3 left!

0

8

Toro 1-633651

BOLT-HOLDDOWN

$8.99

$

In Stock, Qty 20+

0

9

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

17

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0
