72942 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 411000000 - 413999999) Seat Mounting Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Rear-Discharge Deck

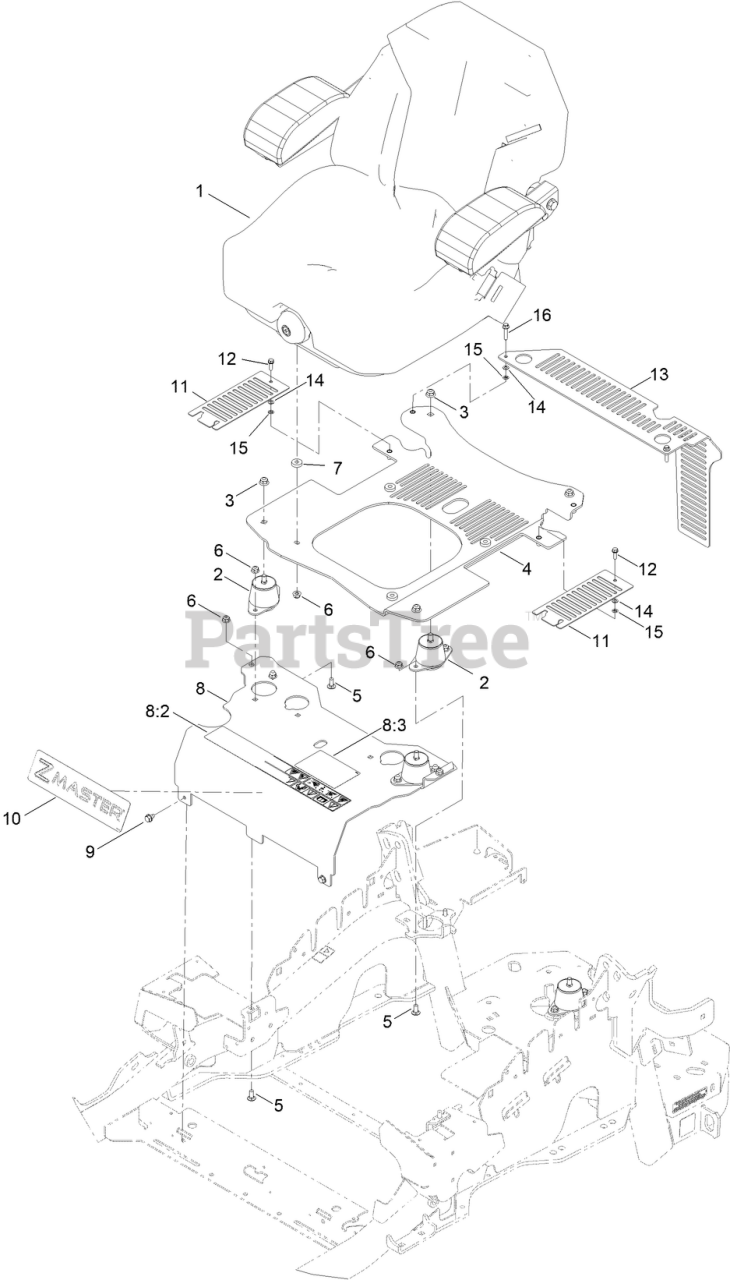

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 140-8003

SEAT-SUSPENSION

$1086.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 117-0910

SEAT BASE ASM

$399.99

$

Usually ships in 3-6 days

0

5

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 26-4840

See Supercession: 5-0652
(Superseded to 5-0652)

$8.49

$

In Stock, only 3 left!

0

8

Toro 116-2324

MOUNT-SEAT

$383.99

$

Usually ships in 3-6 days

0

8:2

Toro 114-4468

DECAL-CONSOLE

$58.99

$

Usually ships in 3-6 days

0

8:3

Toro 125-9383

DECAL-SERVICE AID

$28.99

$

Usually ships in 3-6 days

0

9

Toro 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

10

Toro 140-1215

DECAL-CONSOLE

$10.99

$

In Stock, only 2 left!

0

11

Toro 117-0901-03

COVER

$35.99

$

Usually ships in 3-6 days

0

12

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

13

Toro 114-1548-03

GUARD

$189.99

$

Usually ships in 3-6 days

0

14

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 5

0

16

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
