72951 (5000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 412000000 - 414086162) Seat Mounting Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

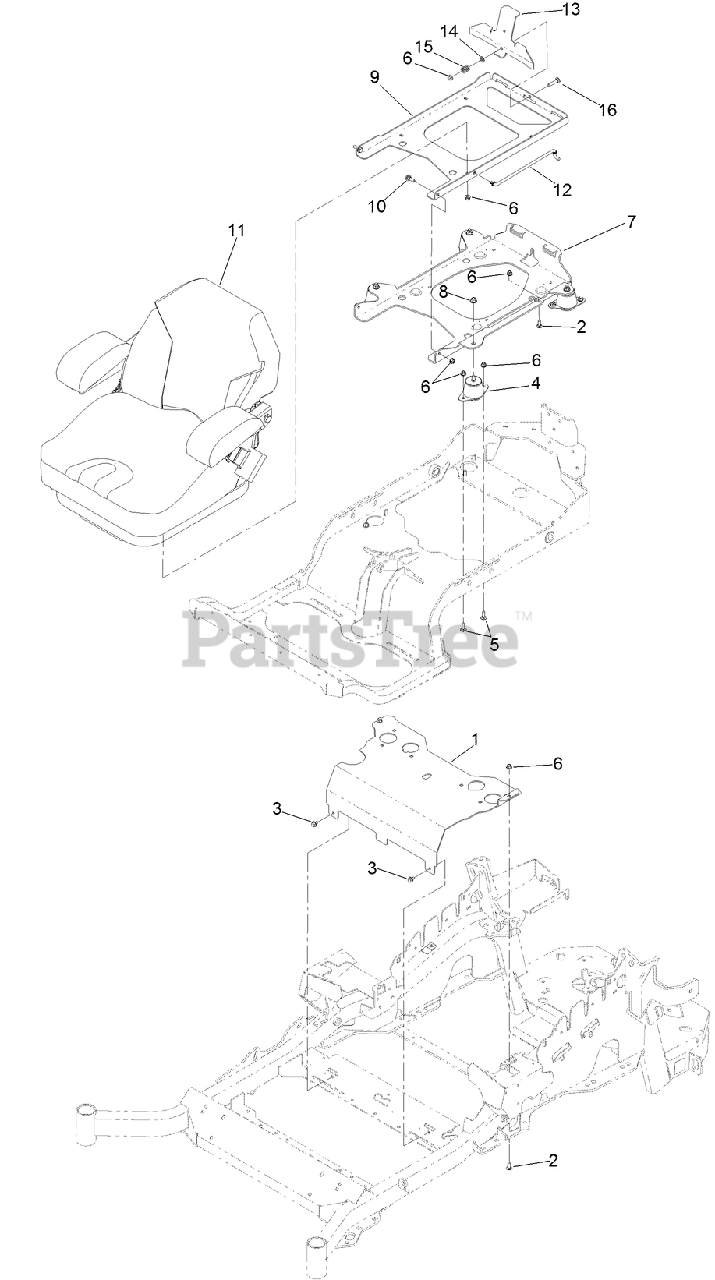

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 116-2130-03

PANEL-FRONT, SEAT MOUNT

$

$

Not available

2

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Toro 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

4

Toro 109-9034

ISOLATOR-SEAT

$77.99

$

In Stock, only 2 left!

0

5

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 131-6324-03

PLATE-SUPPORT, ISO SEAT

$247.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-3859-03

PLATE-FRAME, SEAT

$146.99

$

Usually ships in 3-6 days

0

10

Toro 116-1297

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

11

Toro 139-3641

SEAT-STANDARD

$1021.99

$

Usually ships in 3-6 days

0

12

Toro 116-0070

ROD-PROP

$25.99

$

Usually ships in 3-6 days

0

13

Toro 132-5088-03

PLATE-LATCH,SEAT

$42.99

$

Usually ships in 3-6 days

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0
