72955 (5000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 415000000 - 416256245) Main Frame Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

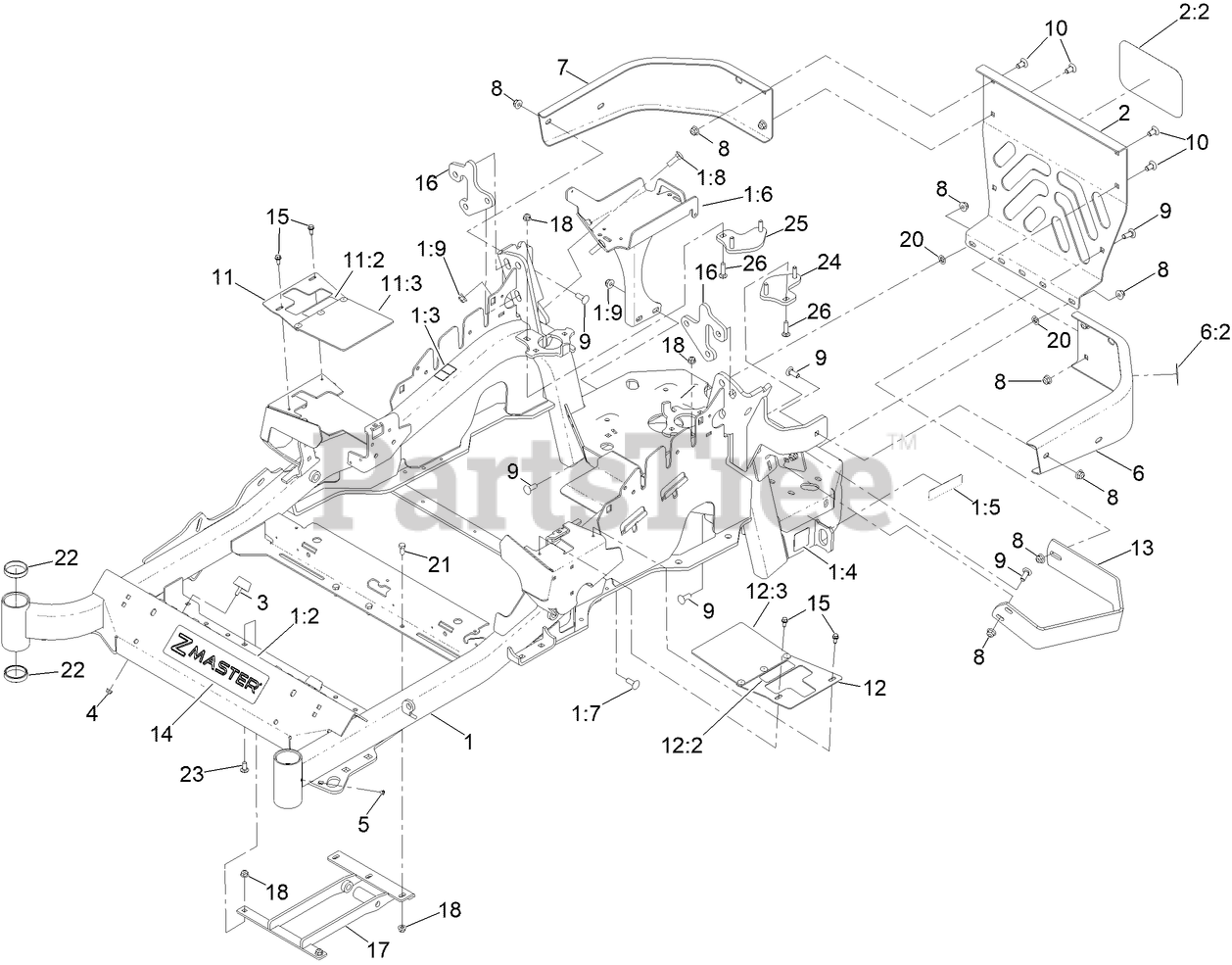

Main Frame Assembly Parts Diagram

  • Title

1

Toro 142-7272

MAINFRAME SERVICE ASM - 48/52

$3646.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-0871

DECAL-DANGER

$10.99

$

In Stock, only 1 left!

0

1:3

Toro 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

1:4

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.99

$

Usually ships in 3-6 days

0

1:5

Toro 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

1:6

Toro 142-6404-01

BATTERY MOUNT ASM

$79.99

$

Usually ships in 3-6 days

0

1:7

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

1:8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

1:9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 115-7410

REAR GUARD ASM

$232.99

$

Usually ships in 3-6 days

0

2:2

Toro 67-7320

DECAL

$40.99

$

Usually ships in 3-6 days

0

3

Toro 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

6

Toro 116-0180

LH BUMPER ASM

$167.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

7

Toro 116-0057-03

BUMPER-RH

$247.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

10

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

11

Toro 131-4615

RH MOTION CONTROL COVER ASM

$142.99

$

Usually ships in 3-6 days

0

11:2

Toro 99-8936

DECAL-CONTROL, MOTION

$25.99

$

Usually ships in 3-6 days

0

11:3

Toro 136-8967

FLAP-RUBBER

$8.99

$

In Stock, only 2 left!

0

12

Toro 131-4610

LH MOTION CONTROL COVER ASM

$142.99

$

Usually ships in 3-6 days

0

12:2

Toro 99-8936

DECAL-CONTROL, MOTION

$25.99

$

Usually ships in 3-6 days

0

12:3

Toro 136-8967

FLAP-RUBBER

$8.99

$

In Stock, only 2 left!

0

13

Toro 126-2067-03

GUARD-MUFFLER

$68.99

$

Usually ships in 3-6 days

0

14

Toro 140-1215

DECAL-CONSOLE

$10.99

$

In Stock, only 2 left!

0

15

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

16

Toro 136-1674-01

PLATE-MOUNT, SHOCK

$27.99

$

Usually ships in 3-6 days

0

17

Toro 131-6327-01

MOUNT-LOWER

$160.99

$

Usually ships in 3-6 days

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

23

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 127-6766

LH PLATE ASM (W/STUDS)

$49.99

$

Usually ships in 3-6 days

0

25

Toro 127-6765

RH PLATE ASM (W/STUDS)

$49.99

$

Usually ships in 3-6 days

0

26

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
