72965 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 418000000 - 999999999) Engine, Clutch and Muffler Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

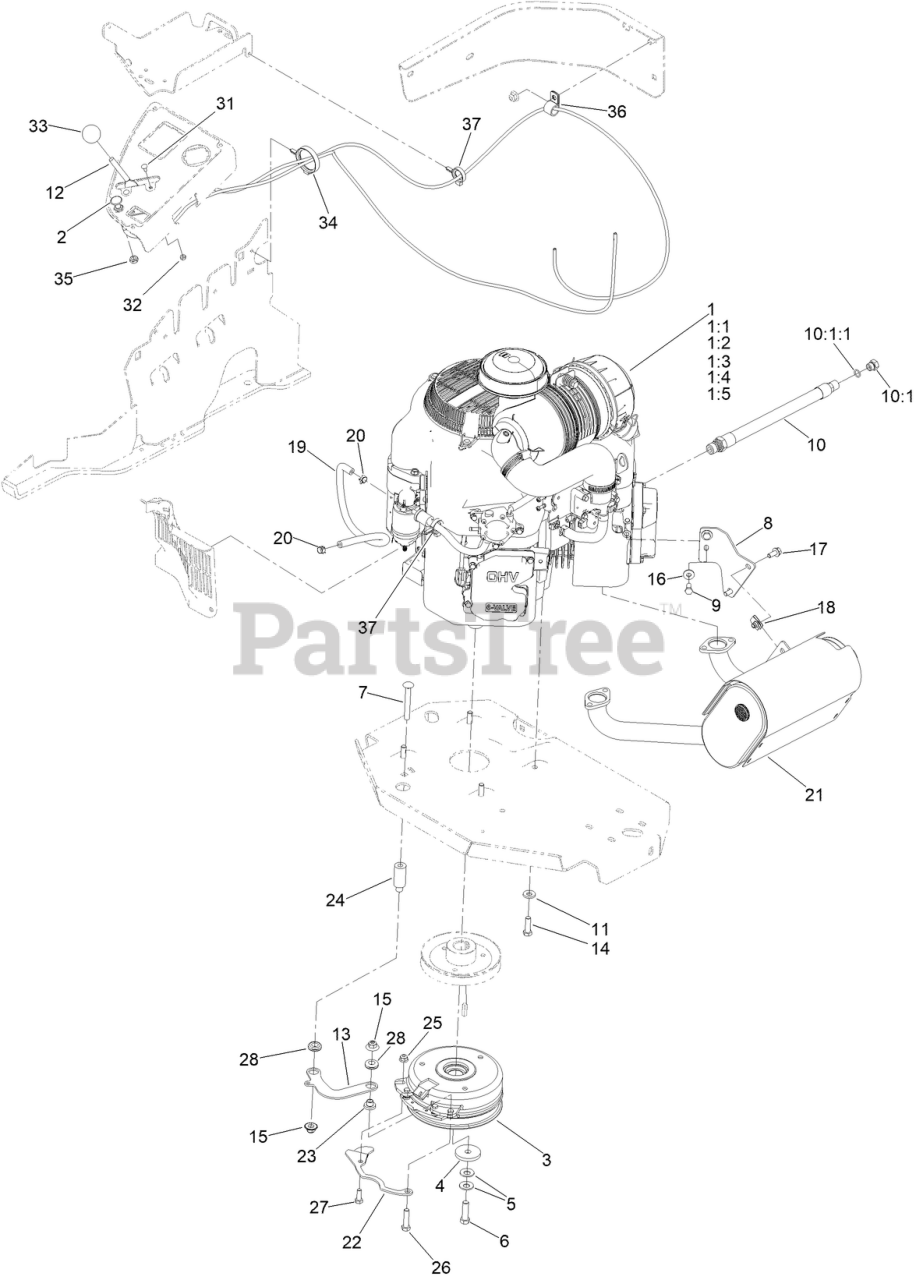

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX921V-_S25-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX921V-_S25-R

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:1

Toro KW10761

FILTER-OIL
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

1:2

Toro 119-5944

ELEMENT-FILTER, AIR (OUTER)

$51.99

$

Usually ships in 3-6 days

0

1:3

Toro 119-5945

ELEMENT-FILTER, AIR (INNER)

$58.99

$

In Stock, only 2 left!

0

1:4

Toro 142-6949

FILTER-FUEL

$12.99

$

In Stock, only 2 left!

0

1:5

Toro KW10676

SPARK PLUG

$10.99

$

In Stock, Qty 20+

0

2

Toro 133-1873

CABLE-CHOKE

$56.99

$

In Stock, only 2 left!

0

3

Toro 126-4185

CLUTCH KIT

$776.99

$

In Stock, only 1 left!

0

4

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 8

0

5

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.99

$

In Stock, Qty 12

0

7

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

8

Toro 116-1587

BRACKET-MUFFLER

$36.99

$

Usually ships in 3-6 days

0

9

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

10

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$42.99

$

In Stock, Qty 6

0

10:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

10:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Toro 133-1816

THROTTLE-CONTROL

$64.99

$

In Stock, only 1 left!

0

13

Toro 116-3317-01

LINK-ANCHOR, CLUTCH

$17.99

$

In Stock, only 3 left!

0

14

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

17

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

18

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

19

Toro 109-0298

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

20

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

21

Toro 116-1707

MUFFLER

$542.99

$

Usually ships in 3-6 days

0

22

Toro 116-3331-01

BELT-GUIDE

$29.99

$

In Stock, only 1 left!

0

23

Toro 116-3318

SPACER

$21.99

$

In Stock, only 3 left!

0

24

Toro 116-3319

SPACER

$27.99

$

In Stock, only 1 left!

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

28

Toro 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 4 left!

0

31

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

34

Toro 117-7817

CLAMP-HARNESS

$8.99

$

Usually ships in 3-6 days

0

35

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

36

Toro 1-633396

CLIP-LOOM

$5.99

$

Usually ships in 3-6 days

0

37

Toro 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0
